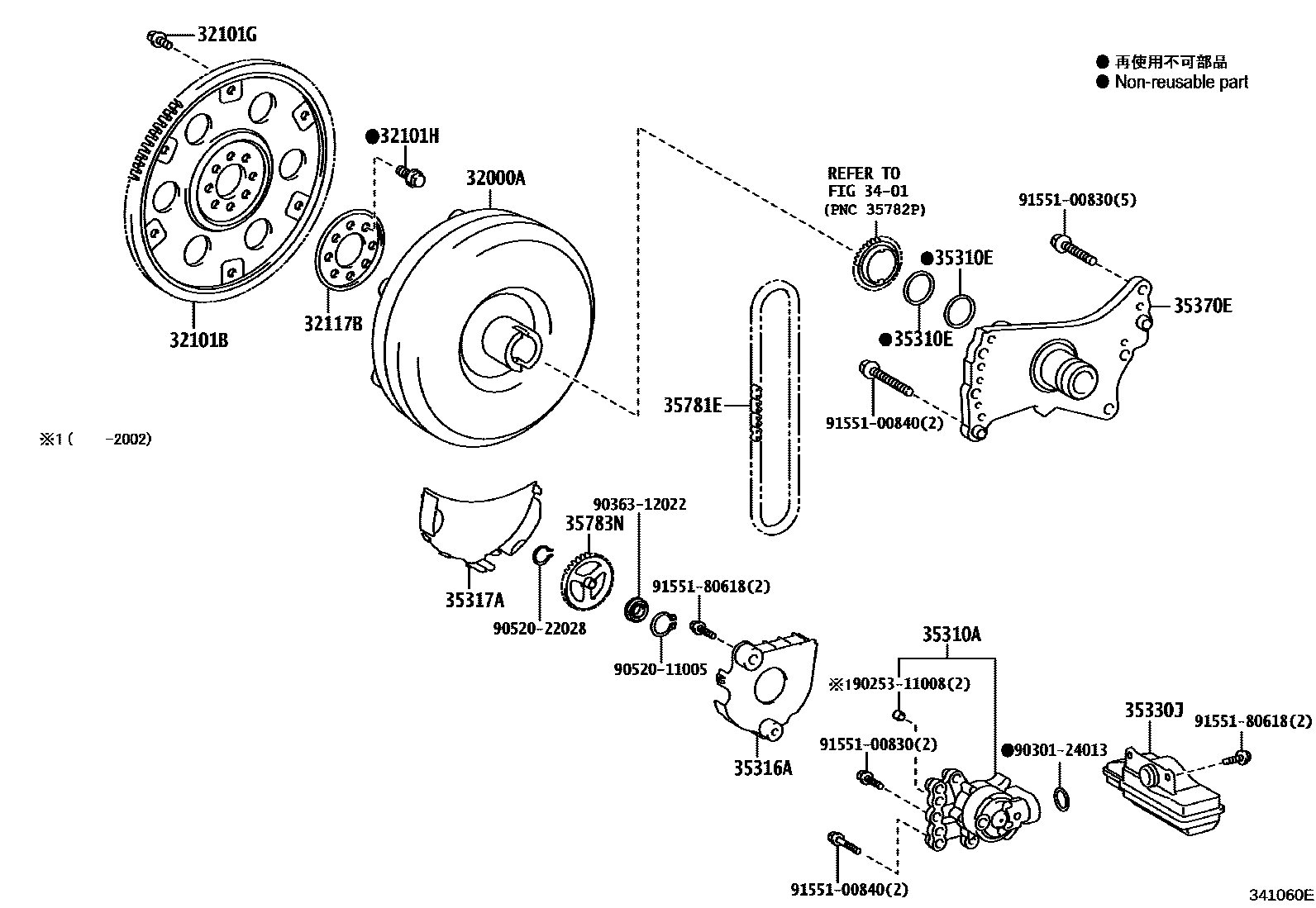

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMXZA10201907-202108

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12120iMXZA10201907-202108

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMXZA10201907-202108

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMXZA10201907-202108

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMXZA10201907-202108

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMXZA10201907-202108

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMXZA10..CHI201907-202303

main35310-33170iMXZA10..CHI202303-202311

sub35310-42010

main35310-42010iMXZA10..CHI202311

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12070iMXZA10201907-202108

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMXZA10201907-202108

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMXZA10201907-202108

35330JSTRAINER ASSY, OIL

main35330-12090iMXZA10201907-202303

main35330-28040iMXZA10..CHI202304

main35330-33080iMXZA10..CHI202303-202304

sub35330-28040

35370ESHAFT ASSY, STATOR (CVT)

main35370-12130iMXZA10201907-202108

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMXZA10201907-202205

main35781-33010iMXZA10202206-202209

sub35781-42010

main35781-42010iMXZA10202209

35783NSPROCKET, DRIVEN

main35783-12060iMXZA10201907-202108

9025311008

main90253-11008

9030124013

main90301-24013

9036312022

main90363-12022

9052011005

main90520-11005

9052022028

main90520-22028

9155100830

main91551-00830

9155100840

main91551-00840

9155180618

main91551-80618

22 parts on this diagram · 1 diagram in section
