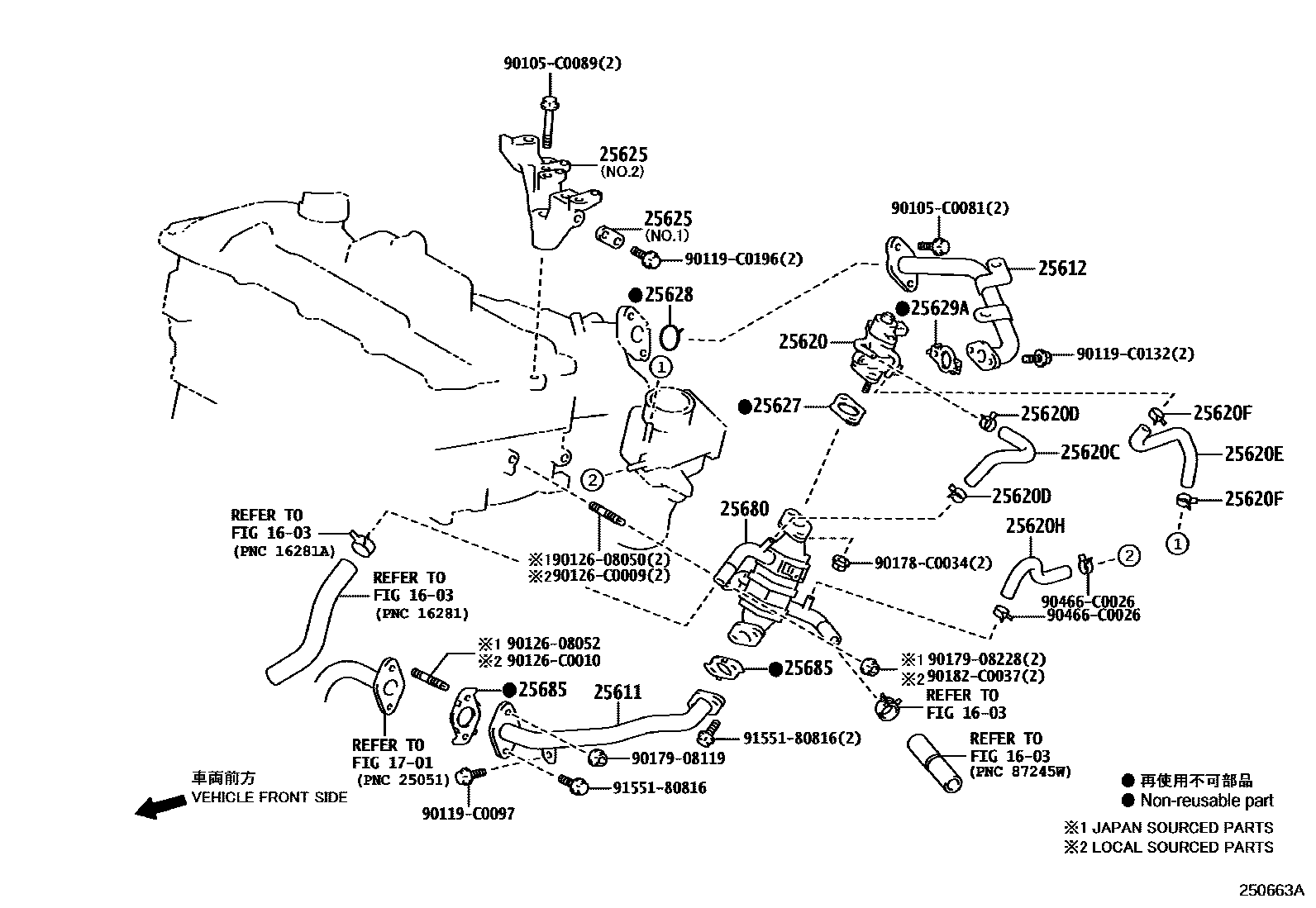

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0005 1 0007 1

1603

1701

25611CONNECTOR, EGR PIPE

main25611-0V020i6ARFSE..ASZ10..EUR201806-202108

(L)

main25611-36020i6ARFSE..ASZ10..EUR201806-202108

(J)

25612PIPE, EGR, NO.2

main25612-0V020i6ARFSE..ASZ10..CHI201806-202108

25620VALVE ASSY, EGR

main25620-24050iA25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN202108

TAIWAN SPEC

main25620-24050iA25AFKS..AXZA10..CHI202402

main25620-24060iA25AFXS..AXZH10..LHD..EUR202108

EGYPT SPEC

main25620-24060iM20AFKS..MXZA10201907-202406

main25620-24060iM20AFKS..MXZA10..CHI202108

UKRAINE SPEC

main25620-24060iM20AFKS..MXZA10..CHI202108

MOROCCO SPEC

main25620-25030iA25AFKS,A25BFXS..AXZA10,AXZH10..CHI201806-201906

KYRGYZ SPEC

sub25620-25050

sub16281-25021

sub96138-41501

main25620-25040iA25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN201806-202108

TAIWAN SPEC

main25620-25050iA25AFKS,A25BFXS..AXZA10,AXZH10..CHI,IND201906-202110

main25620-36050i6ARFSE..ASZ10201806-202108

25620CHOSE, WATER BY-PASS, NO.1

main16261-0V060i6ARFSE..ASZ10..EUR201806-202108

(L)

main16261-36140i6ARFSE..ASZ10..EUR201806-202108

(J)

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main90466-C0026i6ARFSE..ASZ10..CHI201806-202108

25620EHOSE, WATER BY-PASS NO.2

main16264-0V050i6ARFSE..ASZ10..EUR201806-202108

(L)

main16264-36150i6ARFSE..ASZ10..EUR201806-202108

(J)

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main90466-C0026i6ARFSE..ASZ10..CHI201806-202108

25620HHOSE ASSY, WATER BY-PASS

main16267-0V090i6ARFSE..ASZ10..EUR201806-202108

(L)

main16267-36150i6ARFSE..ASZ10..EUR201806-202108

(J)

25625BRACKET, EGR VALVE

main25625-0V010i6ARFSE..ASZ10201806-202108

NO.1:REFER ILLUST.

main25625-0V020i6ARFSE..ASZ10201806-202108

NO.2:REFER ILLUST.

main25625-25010iA25#..AXZA10,AXZH10201806-202007

main25625-25030iA25#..AXZA10,AXZH10202007-202110

25627GASKET, EGR VALVE

main25627-0V010i6ARFSE..ASZ10201806-202108

main25627-24010iA25#..AXZA10,AXZH10201907-202108

main25627-25010iA25#..AXZA10,AXZH10201806-202110

25628GASKET, EGR INLET

main25628-25010iM20AFKS..MXZA10201806-202110

main25628-28010i6ARFSE..ASZ10201806-202108

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20AFKS..MXZA10201806-202110

25629AGASKET, EGR PIPE, NO.2

main25629-0V010i6ARFSE..ASZ10..EUR201806-202108

25680COOLER ASSY, EGR

main25680-0V010i6ARFSE..ASZ10201806-202108

main25680-24010iM20AFKS..MXZA10..EUR202406

TAIWAN SPEC

main25680-24020iM20AFKS..MXZA10..EUR201907-202406

main25680-25010iA25AFKS..AXZA10..ARL,EUR,GCC,GEN201806-202108

TAIWAN SPEC

main25680-25020iA25AFKS..AXZA10..CHI201806-202108

KYRGYZ SPEC

main25680-25030iA25BFXS..AXZH10..CHI201807-202108

TAIWAN SPEC

main25680-25040iA25BFXS..AXZH10201807-202110

main25680-25060iA25BFXS..AXZH10..CHI202108

TAIWAN SPEC

main25680-25060iA25AFKS..AXZA10..CHI202402

main25680-25070iA25AFKS..AXZA10..CHI202108-202402

main25680-25080iA25BFXS..AXZH10202108

EGYPT SPEC

main25680-25080iA25BFXS..AXZH10202108

MOROCCO SPEC

25685GASKET, EGR COOLER, NO.1

main25685-0V010i6ARFSE..ASZ10201806-202108

main25685-25011iM20AFKS..MXZA10201806-202110

90105C0081

main90105-C0081

90105C0089

main90105-C0089

90119C0097

main90119-C0097

90119C0132

main90119-C0132

90119C0196

main90119-C0196

9012608050

main90126-08050

9012608052

main90126-08052

90126C0009

main90126-C0009

90126C0010

main90126-C0010

90178C0034

main90178-C0034

9017908119

main90179-08119

9017908228

main90179-08228

90182C0037

main90182-C0037

90466C0026

main90466-C0026

9155180816

main91551-80816

32 parts on this diagram · 5 diagrams in section
