ALTERNATOR

0001 112V 130A 0002 112V 150A 0003 112V 150A 0004 112V 150A 0005 112V 150A

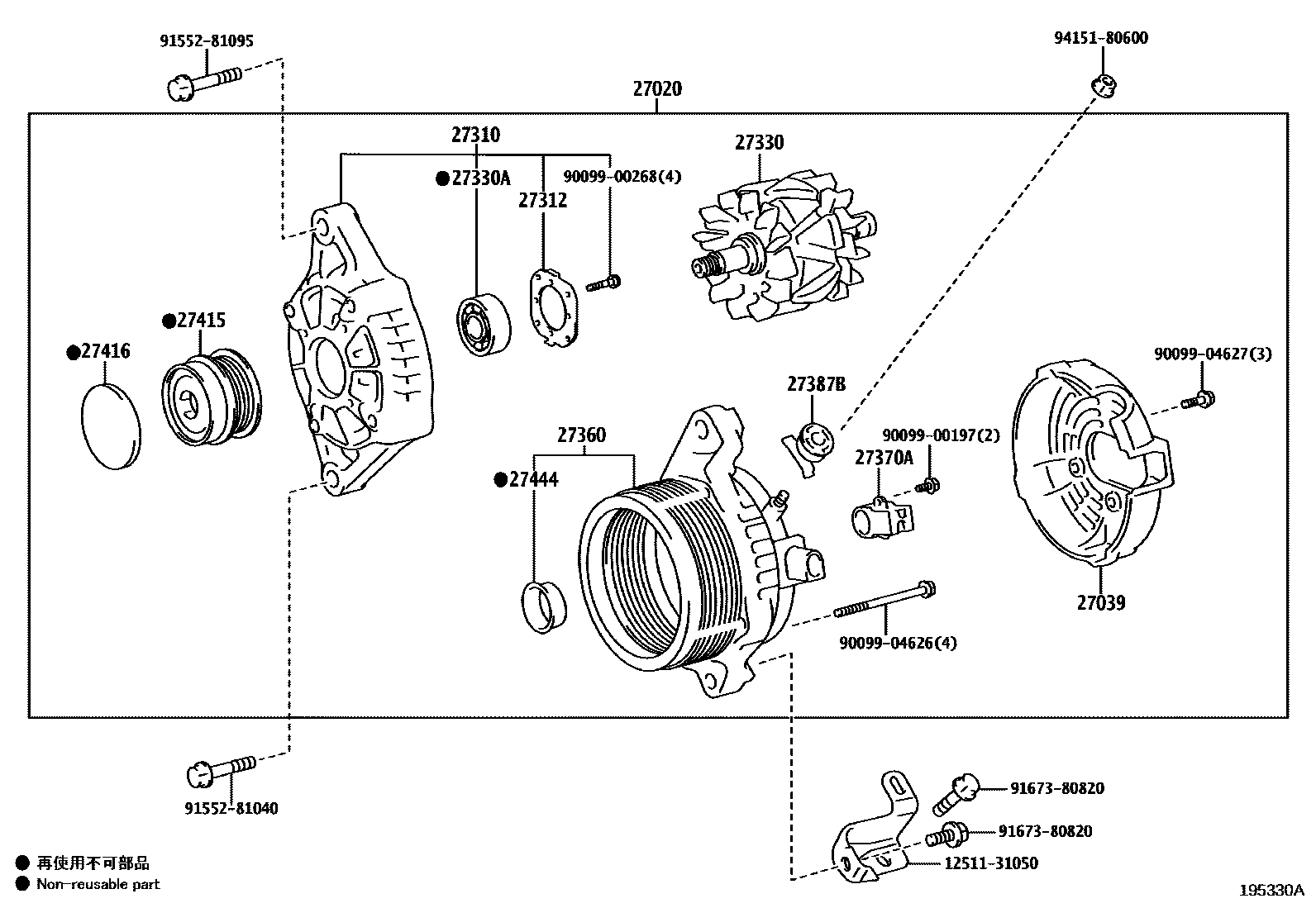

27020ALTERNATOR ASSY

main27060-24050iM20AFKS..MXZA10201907-202108

12V 150A

main27060-25020iA25AFKS..AXZA10201806-202108

12V 150A

main27060-31370i2GRFKS..GSZ10..GCC201806-202108

12V 130A

main27060-31380i2GRFKS..GSZ10..EUR201806-202108

12V 150A

main27060-36160i6ARFSE..ASZ10..CHI201806-202108

12V 150A

27039COVER, ALTERNATOR REAR END

main27039-31390i6ARFSE..ASZ10..CHI201806-202108

main27039-31650i2GRFKS..GSZ10..GCC201912-202108

main27039-37220i2GRFKS..GSZ10..GCC201806-201911

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-25030iA25AFKS,M20AFKS..AXZA10,MXZA10201806-202108

main27310-31600i2GRFKS..GSZ10..GCC201806-202108

main27310-31610i2GRFKS..GSZ10..EUR201806-202108

main27310-36090i6ARFSE..ASZ10..CHI201806-202108

27312PLATE, RETAINER

main27312-72100i2GRFKS..GSZ10..GCC201806-202108

27330ROTOR ASSY, ALTERNATOR

main27330-37220i2GRFKS..GSZ10..GCC201806-202108

main27330-58460i6ARFSE..ASZ10..CHI201806-202108

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223i2GRFKS..GSZ10..GCC201806-202108

27360COIL ASSY, ALTERNATOR

main27360-25030iA25AFKS,M20AFKS..AXZA10,MXZA10201806-202108

main27360-31600i2GRFKS..GSZ10..GCC201806-201911

sub27360-31660

main27360-31610i2GRFKS..GSZ10..EUR201806-202108

main27360-31660i2GRFKS..GSZ10..GCC201912-202108

main27360-36240i6ARFSE..ASZ10..CHI201806-202108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iM20AFKS..MXZA10201907-202108

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i6ARFSE..ASZ10..CHI201806-202108

main27370-31650i2GRFKS..GSZ10..GCC201912-202108

27387INSULATOR, TERMINAL

main27387-20130iM20AFKS..MXZA10201907-202108

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i6ARFSE..ASZ10..CHI201806-202108

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i2GRFKS..GSZ10201806-202108

main27415-0V040i6ARFSE..ASZ10..CHI201806-202108

main27415-0W190iA25AFKS..AXZA10201806-202108

main27415-24010iM20AFKS..MXZA10201907-202108

27416CAP, ALTERNATOR PULLEY

main27416-0W050i6ARFSE..ASZ10..CHI201806-202108

main27416-47010iM20AFKS..MXZA10201907-202108

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i2GRFKS..GSZ10..GCC201806-202108

1251131050BRACKET, ALTERNATOR, NO.1

main12511-31050

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9155281040

main91552-81040

9155281095

main91552-81095

9167380820

main91673-80820

9415180600

main94151-80600

23 parts on this diagram · 5 diagrams in section
