VACUUM PIPING

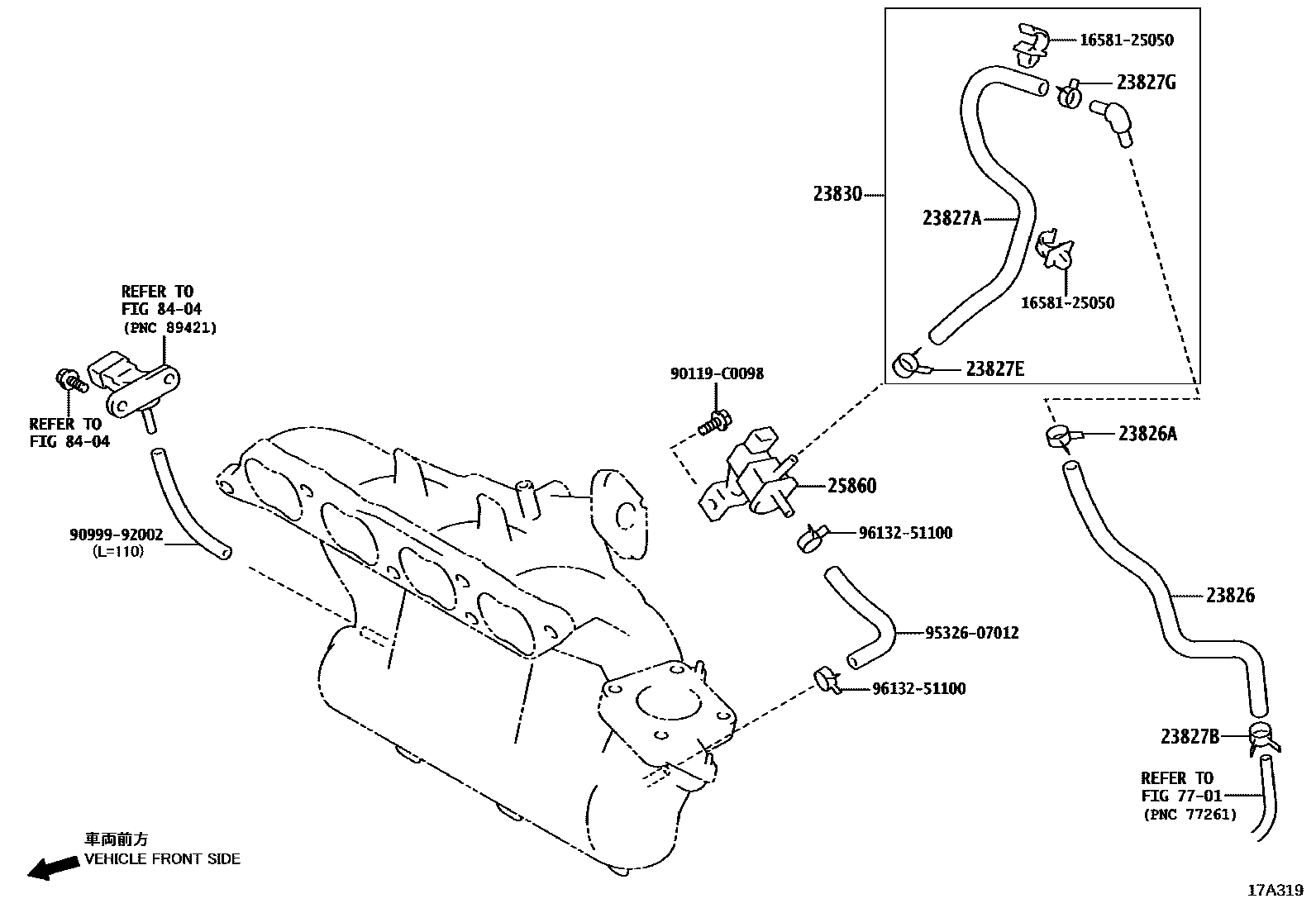

Parts diagram
23826HOSE, FUEL VAPOR FEED, NO.1
main23826-24170i202008-202108
main23826-24170i201907-202008
BEIJING SPEC
main23826-24180i202008-202108
TAIWAN SPEC
main23826-24180i201907-202008
main23826-24250i202108-202208
TAIWAN SPEC
main23826-24250i202208
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main23826-25011i201807-202008
BEIJING SPEC
main23826-25011i202008-202402
main23826-25020i202208-202402
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main23826-25020i201806-202108
main23826-25020i202008-202208
TAIWAN SPEC
main23826-25030i202208
AZERBAIJAN SPEC
main23826-25030i201807-202008
INDIA SPEC
main23826-25030i201807-202108
BRAZIL SPEC
main23826-25030i201807-202108
MOROCCO SPEC
main23826-25030i201907-202108
VIETNAM SPEC
main23826-25030i201907-202108
ARGENTINA SPEC
main23826-25030i202008-202108
CHILE SPEC
main23826-25030i202008-202108
PERU SPEC
main23826-25030i201807-202110
main23826-25030i202208
MOLDOVA SPEC
main23826-25030i202208
GEORGIA SPEC
main23826-25030i202208
UKRAINE SPEC
main23826-25190i202208
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main23826-25190i201807-202108
main23826-25190i202108-202208
TAIWAN SPEC
main23826-31350i201806-202108
main23826-36110i201806-202108
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
main90466-11004i201806-202108
main90466-13005i201806-202108
main90466-13005i202208-202402
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main90466-13005i202008-202208
TAIWAN SPEC
main96133-41501i202008-202402
main96133-41501i201807-202008
BEIJING SPEC
23827AHOSE, FUEL VAPOR FEED, NO.2
main23826-31410i201806-202108
main23827-36050i201806-202108
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
main90466-13005i201806-202108
main96133-41101i201806-202108
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
main90466-11004i201806-202108
23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)
main96137-41301i201806-202108
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
main23830-36170i201806-202108
25860VALVE ASSY, VACUUM SWITCHING, NO.1
main25860-0V150i201806-202108
main25860-24020i202303
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main25860-24020i202008-202303
TAIWAN SPEC
main25860-24020i201907-202008
main25860-24080i202008-202108
main25860-24080i201907-202008
BEIJING SPEC
main25860-25010i202008-202402
main25860-25010i201808-202008
BEIJING SPEC
main25860-25020i201807-202108
BRAZIL SPEC
main25860-25020i201807-202008
INDIA SPEC
main25860-25020i201807-202108
MOROCCO SPEC
main25860-25020i201907-202108
VIETNAM SPEC
main25860-25020i201907-202108
ARGENTINA SPEC
main25860-25020i202008-202108
CHILE SPEC
main25860-25020i202008-202108
PERU SPEC
main25860-25020i201807-202110
main25860-25020i202208
AZERBAIJAN SPEC
main25860-25020i202208
MOLDOVA SPEC
main25860-25020i202208
GEORGIA SPEC
main25860-25020i202208
UKRAINE SPEC
main25860-25040i202008-202208
TAIWAN SPEC
main25860-25040i202208-202402
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main25860-25040i201806-202108
main25860-25070i201807-202108
main25860-25070i202108-202208
TAIWAN SPEC
main25860-25070i202208
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC
main25860-31120i201806-202108
NO.2
main25860-31160i201806-202108
NO.1
7701
8404
1658125050CLAMP, HOSE(FOR WATER HOSE)
main16581-25050
90119C0098
main90119-C0098
9099992002
main90999-92002
9532607012
main95326-07012
9613251100
main96132-51100

15 parts on this diagram · 6 diagrams in section
