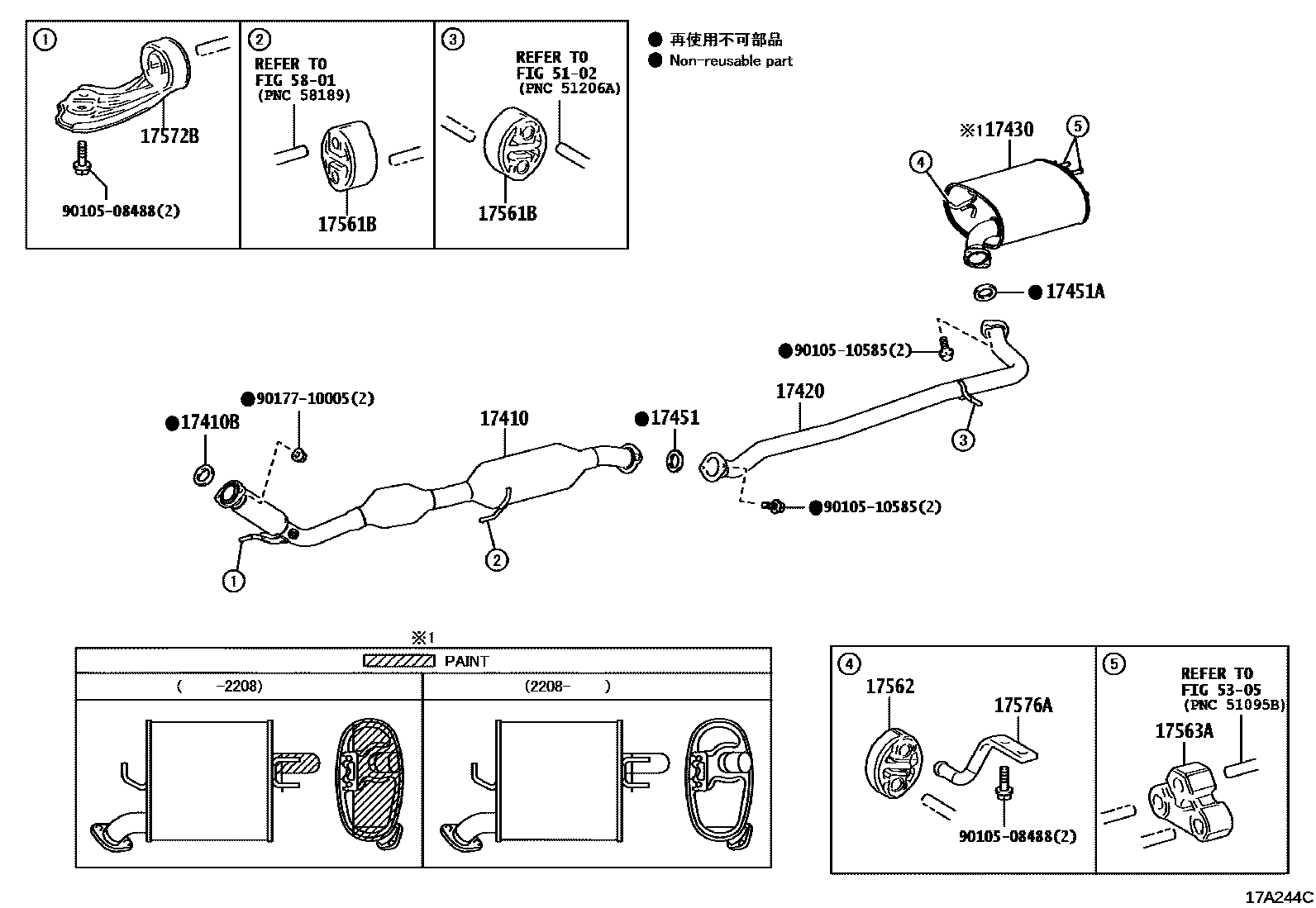

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-24550iM20AFKS..MXZA10..EUR202108

main17410-25170iA25AFKS,A25BFXS..AXZA10,AXZH10..CHI201806-202303

main17410-25180iA25AFKS..AXZA10..ARL,EUR,GCC,GEN201806-202108

TAIWAN SPEC

main17410-25180iA25AFKS..AXZA10..CHI202108

main17410-25190iA25AFXS..AXZH10201807-201906

*114=TOYOTA/A53/Y,TAIWAN SPEC

sub17410-25191

main17410-25190iA25AFXS..AXZH10201807-201906

*114=TOYOTA/A53/Y

sub17410-25191

main17410-25191iA25AFXS..AXZH10..LHD..EUR202108

*114=TOYOTA/A53/Y,MOROCCO SPEC

main17410-25191iA25AFXS,A25BFXS..AXZH10..ARL,GCC,GEN,IND201907-202110

*114=TOYOTA/A53/Y

main17410-25191iA25AFXS..AXZH10..LHD..EUR202108

*114=TOYOTA/A53/Y,BRAZIL SPEC

main17410-25191iA25AFXS..AXZH10..LHD..EUR202108

*114=TOYOTA/A53/Y,CHILE SPEC

main17410-25191iA25AFXS..AXZH10..LHD..EUR202108

*114=TOYOTA/A53/Y,PERU SPEC

main17410-25191iA25AFXS..AXZH10..LHD..EUR202108

*114=TOYOTA/A53/Y,VIETNAM SPEC

main17410-25191iA25AFXS..AXZH10..LHD..EUR202108

*114=TOYOTA/A53/Y,ARGENTINA SPEC

main17410-25310iA25AFXS..AXZH10..EUR201907-202108

*114=TOYOTA/PB2/Y

main17410-25360iM20AFKS..MXZA10201907-202108

*114=TOYOTA/T92/Y

main17410-25730iA25AFKS..AXZA10..CHI202303-202402

main17410-25740iA25BFXS..AXZH10..CHI202303

main17410-31L70i2GRFKS..GSZ10201806-202108

main17410-36590i6ARFSE..ASZ10201806-202108

17410BGASKET, EXHAUST PIPE

main17451-75010i6ARFSE..ASZ10201806-202108

sub17451-75011

main90917-06089i2GRFKS..GSZ10201806-202108

main90917-06094iA25#..AXZA10,AXZH10;M20AFKS..MXZA10..CHI201806-202110

17420PIPE ASSY, EXHAUST, CENTER

main17420-25050iA25AFKS,M20AFKS..AXZA10,MXZA10201806-202108

main17420-25060iA25AFXS,A25BFXS..AXZH10201807-202110

main17420-31640i2GRFKS..GSZ10201806-202108

main17420-36290i6ARFSE..ASZ10201806-202108

17430PIPE ASSY, EXHAUST, TAIL

main17430-25170iA25AFKS,M20AFKS,6ARFSE..ASZ10,AXZA10,MXZA10201806-202208

main17430-25171iA25AFKS,M20AFKS..AXZA10,MXZA10202208

main17440-25060iA25AFXS,A25BFXS..AXZH10201807-202208

main17440-25061iA25AFXS,A25BFXS..AXZH10202208

17451GASKET, EXHAUST PIPE

main17451-31012i6ARFSE..ASZ10201806-202108

main90917-06090iM20AFKS..MXZA10..CHI;A25#,2GRFKS..AXZA10,AXZH10,GSZ10201806-202110

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06078i2GRFKS..GSZ10201806-202110

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22040iA25AFKS,M20AFKS,6ARFSE,2GRFKS..ASZ10,AXZA10,GSZ10,MXZA10201806-202110

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-31040i2GRFKS..GSZ10201806-202110

17563ASUPPORT, EXHAUST PIPE, NO.3

main17566-25010i2GRFKS..GSZ10201806-202110

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-31150iM20AFKS..MXZA10..CHI;A25#,6ARFSE,2GRFKS..ASZ10,AXZA10,AXZH10,GSZ10201806-202110

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-31110i6ARFSE..ASZ10..CHI201806-202108

5102

5305

5801

9010508488

main90105-08488

9010510585

main90105-10585

9017710005

main90177-10005

17 parts on this diagram · 4 diagrams in section
