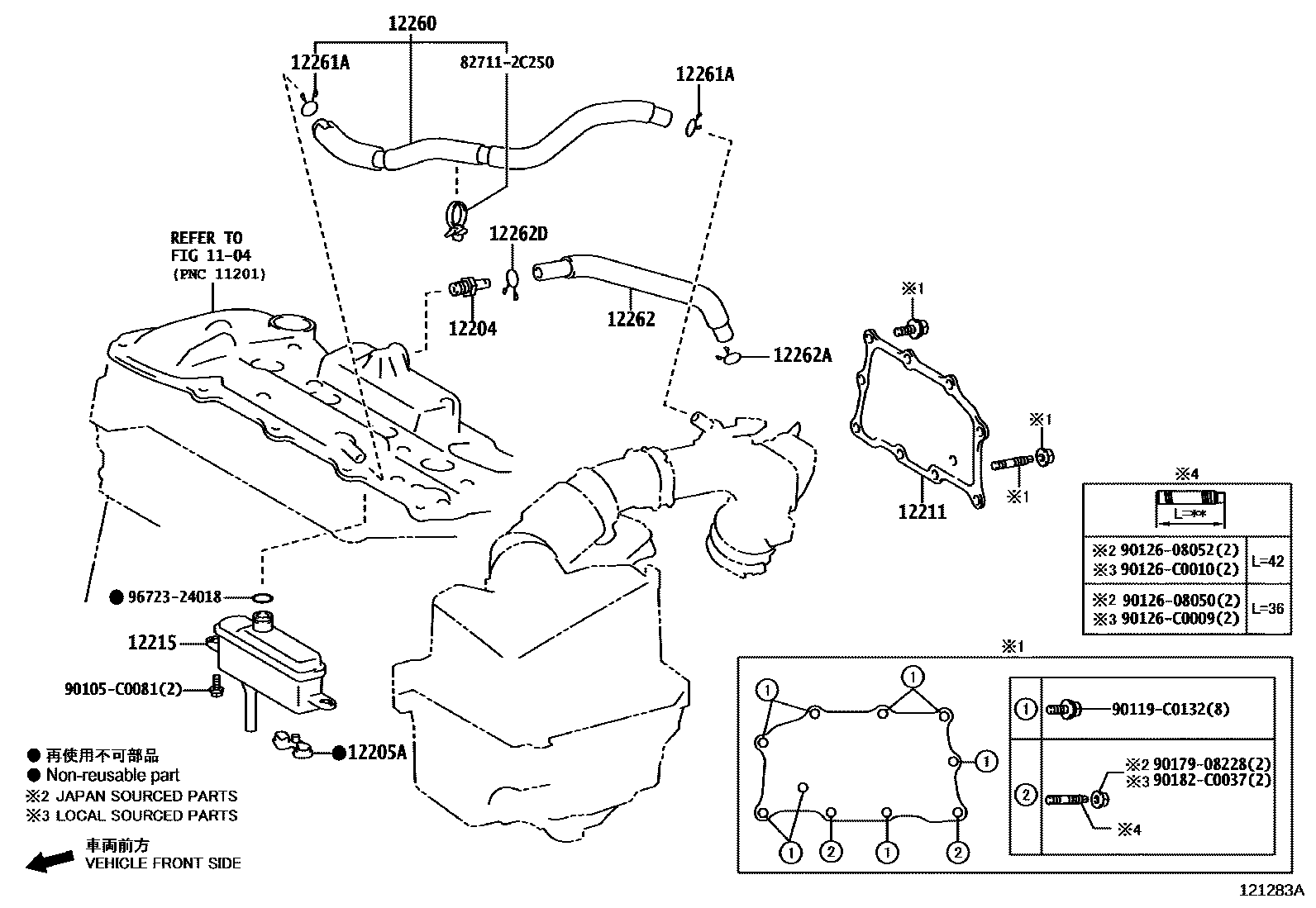

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

1104

12204VALVE SUB-ASSY, VENTILATION

main12204-0V030i6ARFSE..ASZ10..CHI201806-202108

main12204-31150i2GRFKS..GSZ10201806-202410

12205ARING, O(FOR VENTILATION CASE)

main12273-0V030i6ARFSE..ASZ10..CHI201806-202108

12211CASE, VENTILATION, NO.1

main12211-0V030i6ARFSE..ASZ10201806-202108

main12211-24010iM20AFKS..MXZA10201907-202208

main12211-24020iM20AFKS..MXZA10202208

main12211-25010iA25#..AXZA10,AXZH10201806-202007

sub12211-25011

main12211-25011iA25#..AXZA10,AXZH10202008-202403

12215SEPARATOR, CASE

main12215-0V030i6ARFSE..ASZ10..CHI201806-202108

12260HOSE ASSY, VENTILATION

main12260-36100i6ARFSE..ASZ10..CHI201806-202108

12261HOSE, VENTILATION

main12261-31200i2GRFKS..GSZ10201806-202108

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i2GRFKS..GSZ10201806-202108

NO.1

main90467-19003i2GRFKS..GSZ10201806-202108

NO.2

main90467-21004i6ARFSE..ASZ10..EUR201806-202108

12262HOSE, VENTILATION, NO.2

main12262-24060iM20AFKS..MXZA10201907-202108

main12262-25030iA25AFKS..AXZA10201806-202108

main12262-25060iA25AFXS,A25BFXS..AXZH10201807-202110

main12262-31190i2GRFKS..GSZ10201806-202108

main12262-36100i6ARFSE..ASZ10201806-202108

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17126i6ARFSE..ASZ10201806-202108

main90467-21004i2GRFKS..GSZ10201806-202110

12262DCLIP(FOR VENTILATION HOSE NO.2)

main90467-15120i6ARFSE..ASZ10..CHI201806-202108

827112C250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C250

90105C0081

main90105-C0081

90119C0132

main90119-C0132

9012608050

main90126-08050

9012608052

main90126-08052

90126C0009

main90126-C0009

90126C0010

main90126-C0010

9017908228

main90179-08228

90182C0037

main90182-C0037

9672324018

main96723-24018

21 parts on this diagram · 5 diagrams in section
