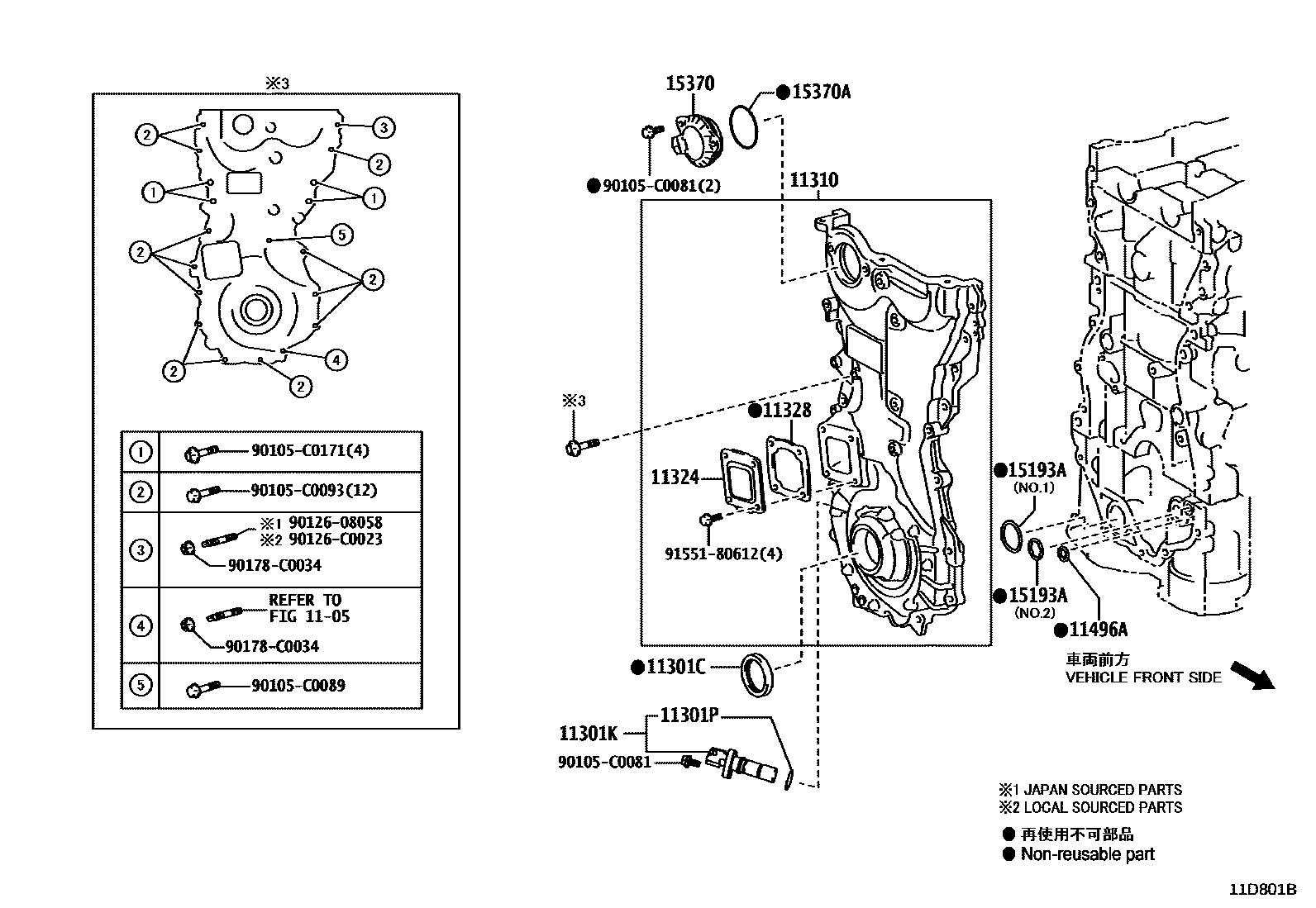

TIMING GEAR COVER & REAR END PLATE
1105
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301KSENSOR, CRANK POSITION
11301PO RING, CRANK POSITION SENSOR
11310COVER ASSY, TIMING CHAIN
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11496AGASKET, OIL HOLE COVER
15193AGASKET, OIL PUMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
(J)
(L)
90105C0081
main90105-C0081
90105C0089
main90105-C0089
90105C0093
main90105-C0093
90105C0171
main90105-C0171
9012608058
main90126-08058
90126C0023
main90126-C0023
90178C0034
main90178-C0034
9155180612
main91551-80612
19 parts on this diagram · 5 diagrams in section
