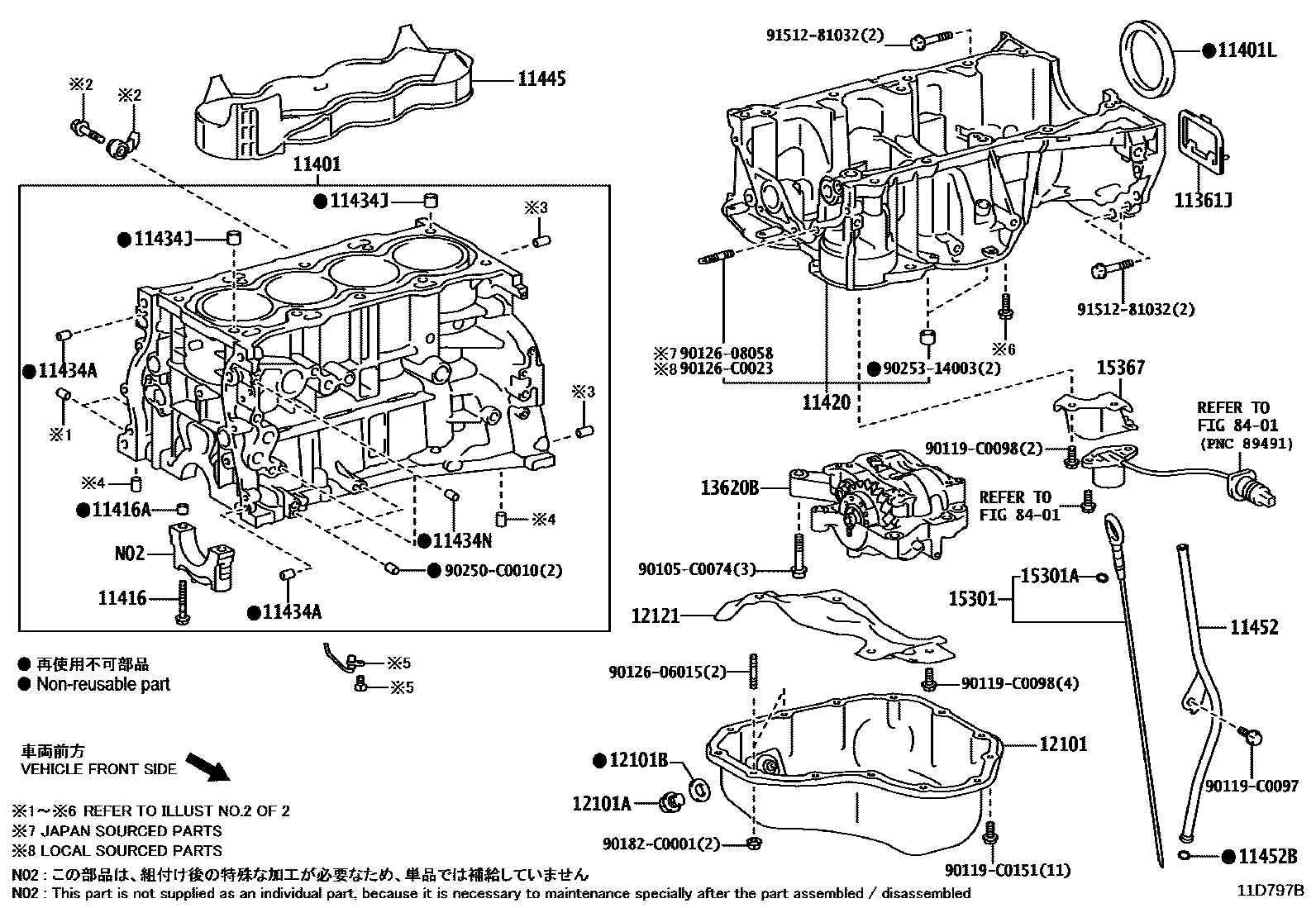

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
sub11401-80062
PERU SPEC
GEORGIA SPEC,TYPE A:REFER ILLUST.
CHINA VEHICLE TYPE(CBU)-WITHOUT&TAIWAN SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
BRAZIL SPEC,TYPE A:REFER ILLUST.
CHILE SPEC,TYPE A:REFER ILLUST.
PERU SPEC,TYPE A:REFER ILLUST.
VIETNAM SPEC,TYPE A:REFER ILLUST.
ARGENTINA SPEC,TYPE A:REFER ILLUST.
AZERBAIJAN SPEC,TYPE A:REFER ILLUST.
MOLDOVA SPEC,TYPE A:REFER ILLUST.
BRAZIL SPEC
CHILE SPEC
VIETNAM SPEC
ARGENTINA SPEC
TAIWAN SPEC
PERU SPEC,TYPE A:REFER ILLUST.
PERU SPEC
KYRGYZ SPEC
TYPE A:REFER ILLUST.
EGYPT SPEC
MOROCCO SPEC
TYPE B:REFER ILLUST.
PERU SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=14,OD=6
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12121PLATE, OIL PAN BAFFLE, NO.1
13620BBALANCER ASSY, ENGINE
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15367BRACKET, OIL LEVEL SENSOR
8401
90105C0074
main90105-C0074
90119C0097
main90119-C0097
90119C0098
main90119-C0098
90119C0151
main90119-C0151
9012606015
main90126-06015
9012608058
main90126-08058
90126C0023
main90126-C0023
90182C0001
main90182-C0001
90250C0010
main90250-C0010
9025314003
main90253-14003
9151281032
main91512-81032
32 parts on this diagram · 10 diagrams in section
