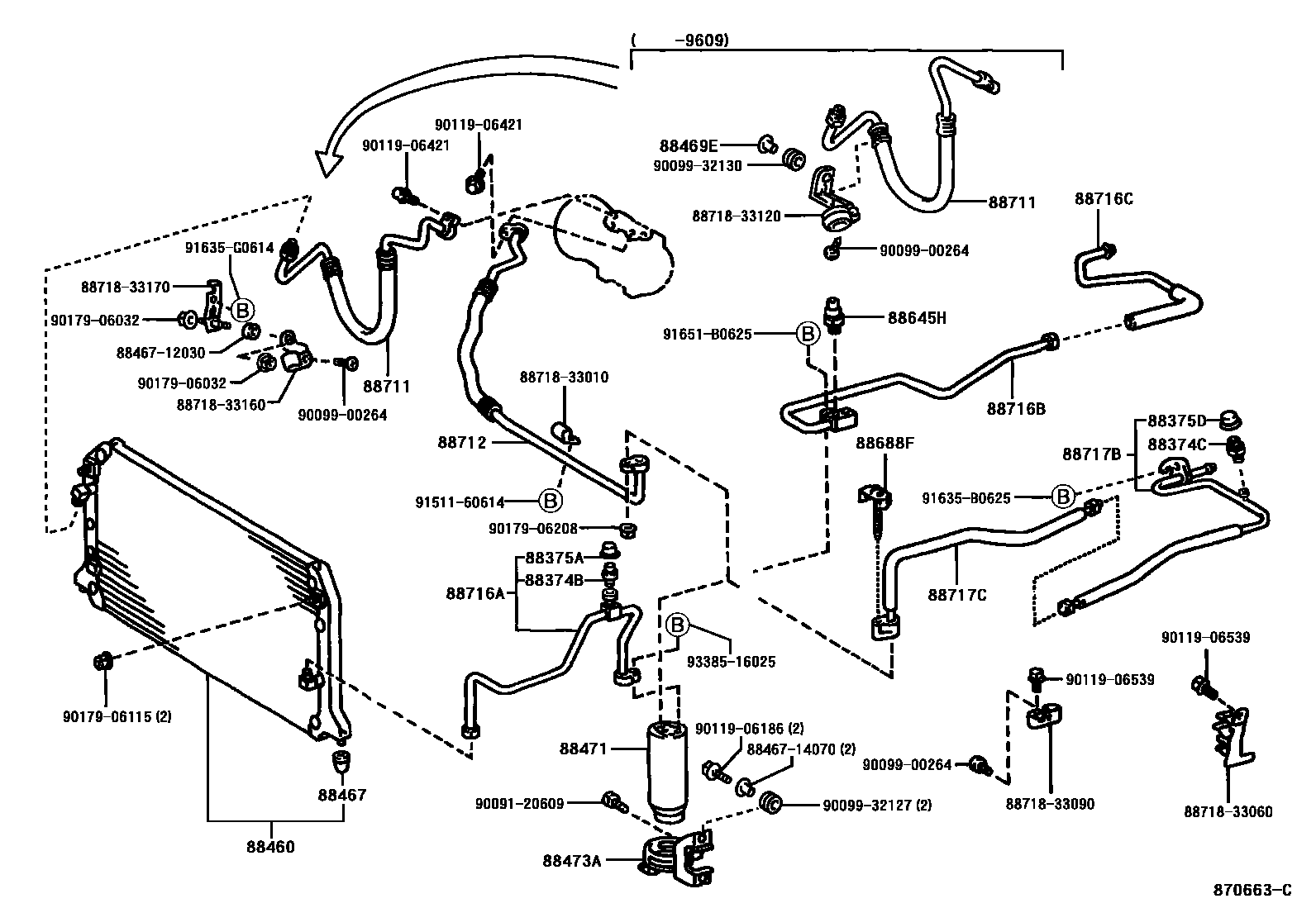

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O RING

88374BVALVE, SERVICE, NO.1

main88374-30010iMCV20,SXV20..RHD199608-200109

88374CVALVE, SERVICE, NO.2

main88374-30010iMCV20,SXV20..RHD199608-200109

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-02060iMCV20,SXV20..LHD199608-200108

sub88375-0E020

main88375-30280iMCV20,SXV20..RHD199608-200109

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iMCV20,SXV20..RHD199608-200109

88460CONDENSER ASSY, COOLER

main88460-06060iMCV20,SXV20..LHD199608-199705

main88460-06061iMCV20,SXV20..LHD199705-200108

main88460-0W010iMCV20,SXV20..RHD199608-199705

main88460-0W011iMCV20,SXV20..RHD199705-200109

88467CUSHION, COOLER CONDENSER, NO.1

main88467-06020iMCV20,SXV20..RHD199608-200109

main88467-06030iMCV20,SXV20..LHD199608-200108

88469ECOLLAR, CONDENSER BRACKET, NO.2

main88469-28010iMCV20,SXV20199608-199609

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iMCV20,SXV20..RHD199608-200109

sub88471-34010

main88471-34010iMCV20,SXV20..LHD199608-200108

88473AHOLDER, RECEIVER

main88473-06030iMCV20,SXV20..LHD199608-200108

main88473-33050iMCV20,SXV20..RHD199608-200109

88645HSWITCH, PRESSURE NO.1

main88645-20050iMCV20,SXV20199608-200109

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-33240iMCV20,SXV20..RHD199608-200109

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33100iSXV20199608-199705

main88711-33101iSXV20199705

main88711-33110iMCV20199608-199705

main88711-33111iMCV20199705

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33060iSXV20..LHD199608

main88712-33070iSXV20..RHD199608

main88712-33080iMCV20..LHD199608

main88712-33090iMCV20..RHD199608-199609

main88712-33091iMCV20..RHD199609-199808

main88712-33170iMCV20..RHD199808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-06110iMCV20,SXV20..LHD199608-200108

main88716-33240iMCV20,SXV20..RHD199608-200109

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-33250iMCV20,SXV20..LHD199608-199705

main88716-33251iMCV20,SXV20..LHD199705-200108

main88716-33290iMCV20,SXV20..RHD199608-200109

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-33280iMCV20,SXV20..RHD199608-200109

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-33170iMCV20,SXV20..RHD199608-200109

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-33160iMCV20,SXV20..RHD199608-200109

8846712030CUSHION, COOLER CONDENSER, NO.1

main88467-12030

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

8871833010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33010

8871833060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33060

8871833090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33090

8871833120PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33120

8871833160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33160

8871833170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33170

9009120609

main90091-20609

9009900264

main90099-00264

9009932127

main90099-32127

9009932130

main90099-32130

9011906186

main90119-06186

9011906421

main90119-06421

9011906539

main90119-06539

9017906032

main90179-06032

9017906115

main90179-06115

9017906208

main90179-06208

9151160614

main91511-60614

91635B0625

main91635-B0625

91635G0614

main91635-G0614

91651B0625

main91651-B0625

9338516025

main93385-16025

41 parts on this diagram · 5 diagrams in section
