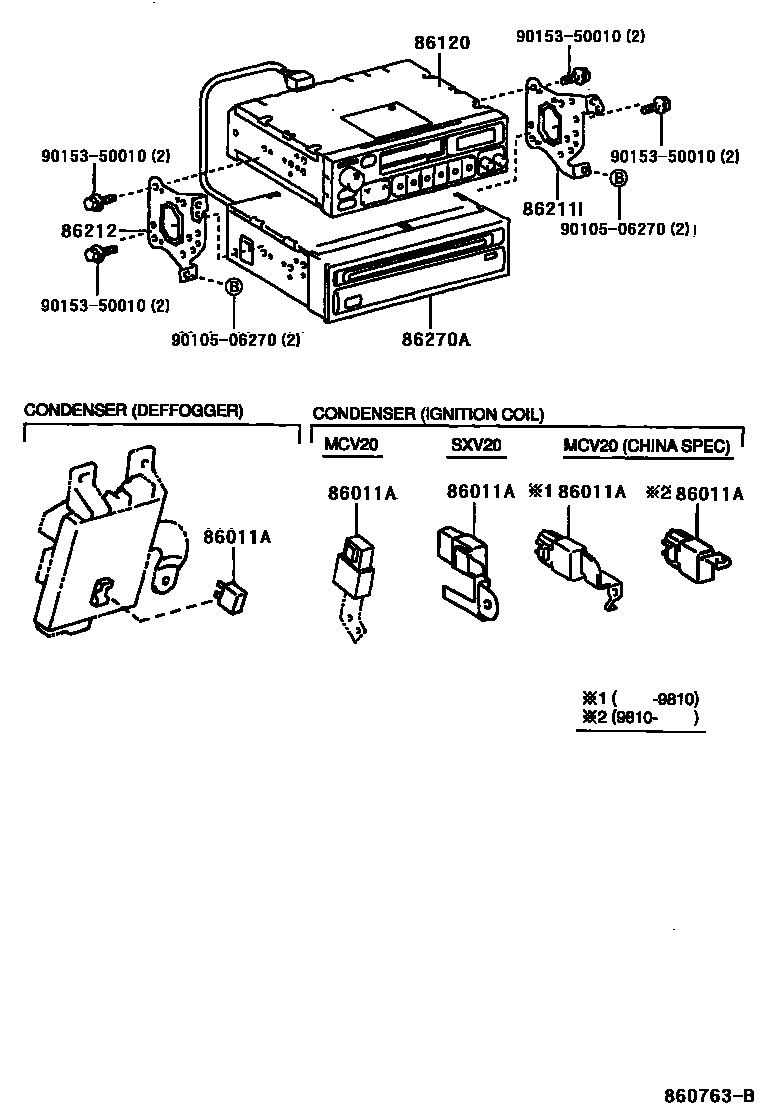

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1W(CD AUTO CHANGER) 0003 1

86011ACONDENSER, RADIO SETTING

main90084-98056iMCV20..LHD199702-199810

CHINA SPEC,IGNITION COIL

main90980-04066iMCV20,SXV20199608

DEFOGGER

main90980-04083iMCV20199608

IGNITION COIL

main90980-04128iSXV20199608

IGNITION COIL

main90980-04142iMCV20..LHD199810

CHINA SPEC,IGNITION COIL

86120RECEIVER ASSY, RADIO

main86120-08020iSXV20..LHD..MTM;MCV20,SXV20..ATM199808

FUJITSU TEN,ID=11801,TYPE D:REFER TO ILLUSTRATION

main86120-2A180iMCV20,SXV20..LHD..ATM199702-199908

MATSUSHITA,ID=57403,TYPE A:REFER TO ILLUSTRATION;W(CD AUTO CHANGER)

main86120-2B360iSXV20..LHD..MTM;MCV20,SXV20..ATM199608-199808

MATSUSHITA,ID=57400,TYPE A:REFER TO ILLUSTRATION

main86120-2B560iMCV20;SXV20..LHD199608

FUJITSU TEN,ID=18401,TYPE B:REFER TO ILLUSTRATION

main86120-2B610iMCV20,SXV20..LHD..ATM199903-199908

FUJITSU TEN,ID=17411,TYPE E:REFER TO ILLUSTRATION,W(CD AUTO CHANGER)

main86120-2B620iSXV20..LHD..MTM;MCV20,SXV20..ATM199808

MATSUSHITA,ID=57410,TYPE E:REFER TO ILLUSTRATION

main86120-60210iMCV20,SXV20199608

MATSUSHITA, ID=58408,TYPE C:REFER TO ILLUSTRATION

main86120-60360iMCV20,SXV20..LHD..ATM199908

MATSUSHITA, ID=57409,TYPE E:REFER TO ILLUSTRATION,W(CD AUTO CHANGER)

86211BRACKET, RADIO, NO.1

main86211-33080iMCV20,SXV20199608

86212BRACKET, RADIO, NO.2

main86212-33080iMCV20,SXV20199608

86270ADISC PLAYER ASSY

main86270-60050iSXV20..LHD..MTM;MCV20,SXV20..ATM199808

9010506270

main90105-06270

9015350010

main90153-50010

7 parts on this diagram · 3 diagrams in section
