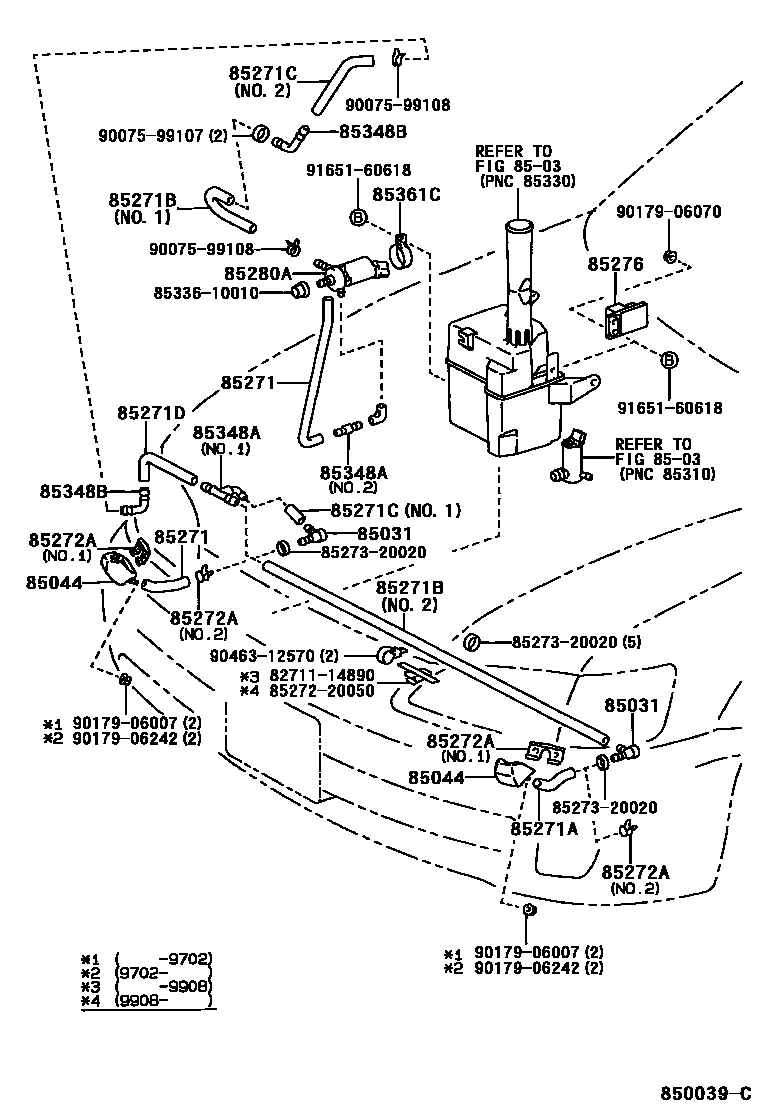

HEADLAMP CLEANER
8503
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85271HOSE, HEADLAMP CLEANER, NO.1
L=45
L=15
L=40
85271AHOSE, HEADLAMP CLEANER, NO.2
L=215
L=45
L=40
85271BHOSE, HEADLAMP CLEANER, NO.3
NO.1
L=1320(*H,L=1100),NO.2
L=1320(*H,L=1150),NO.2
85271CHOSE, HEADLAMP CLEANER, NO.4
NO.2
85271DHOSE, HEADLAMP CLEANER, NO.5
L=170
85272ACLAMP, HEADLAMP CLEANER, NO.1
NO.1
NO.2
85276RELAY, CLEANER CONTROL
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
NO.1
NO.1
NO.2
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
NO.2
NO.1
85361CBRACKET, WASHER
sub85361-33020
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220050CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20050
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8533610010SWITCH ASSY, RESERVE TANK LEVEL WARNING
main85336-10010
9007599107
main90075-99107
9007599108
main90075-99108
9017906007
main90179-06007
9017906070
main90179-06070
9017906242
main90179-06242
9046312570
main90463-12570
9165160618
main91651-60618
25 parts on this diagram · 1 diagram in section
