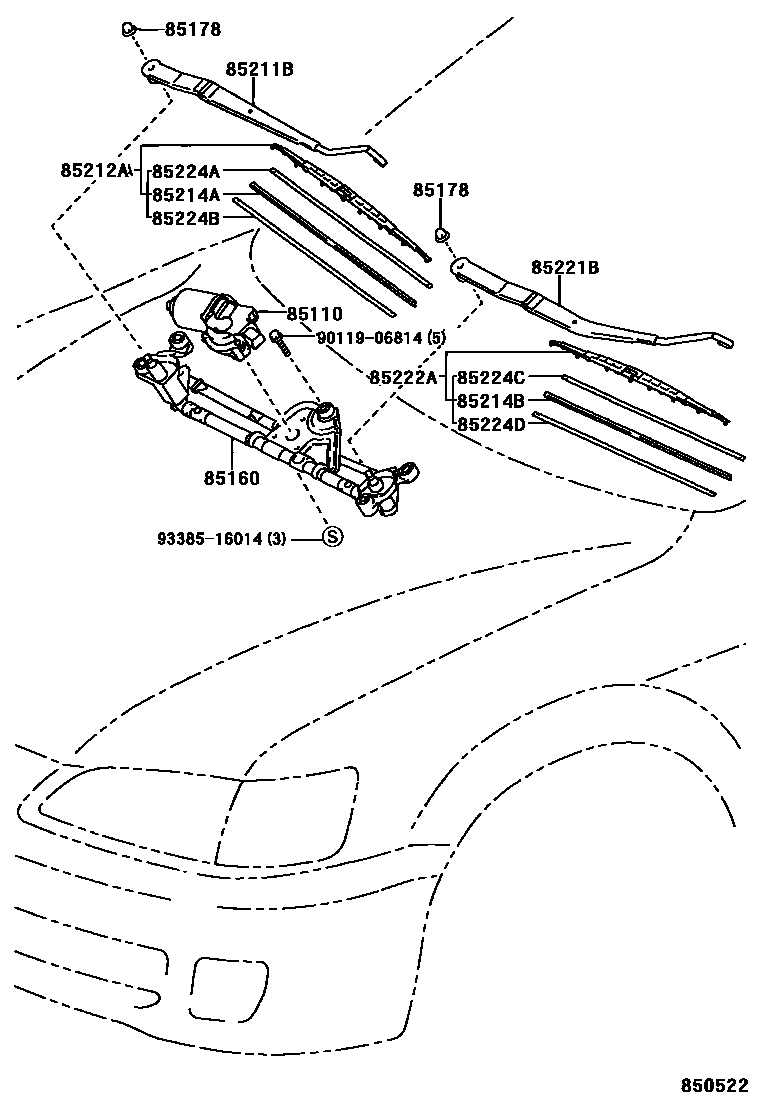

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33190iMCV20,SXV20..RHD199608

main85110-AA020iMCV20,SXV20..LHD199608

85160LINK ASSY, WINDSHIELD WIPER

main85150-33130iMCV20,SXV20..RHD199608

main85150-AA020iMCV20,SXV20..LHD199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iMCV20,SXV20199608

85211BARM, FRONT WIPER, RH

main85211-33060iMCV20,SXV20..RHD199608

main85211-33130iMCV20,SXV20..LHD199608

85212ABLADE, FR WIPER, RH

main85212-33100iMCV20,SXV20..RHD199608

sub85212-33101

main85212-33150iMCV20,SXV20..LHD199608

sub85212-33151

85214ARUBBER, WIPER, RH

main85214-33030iMCV20,SXV20..RHD199608

sub85214-48030

main85214-33080iMCV20,SXV20..LHD199608

sub85214-53040

85214BRUBBER, WIPER, LH

main85214-33030iMCV20,SXV20..LHD199608

sub85214-48030

main85214-33080iMCV20,SXV20..RHD199608

sub85214-53040

85221BARM, FRONT WIPER, LH

main85221-33080iMCV20,SXV20..LHD199608

main85221-33170iMCV20,SXV20..RHD199608

85222ABLADE, FR WIPER, LH

main85222-33090iMCV20,SXV20..LHD199608

sub85222-33091

main85222-33170iMCV20,SXV20..RHD199608

sub85222-33171

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20280iMCV20,SXV20..RHD199608

main85224-35040iMCV20,SXV20..LHD199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20280iMCV20,SXV20..RHD199608

main85224-35040iMCV20,SXV20..LHD199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20280iMCV20,SXV20..LHD199608

main85224-35040iMCV20,SXV20..RHD199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20280iMCV20,SXV20..LHD199608

main85224-35040iMCV20,SXV20..RHD199608

9011906814

main90119-06814

9338516014

main93385-16014

15 parts on this diagram · 1 diagram in section
