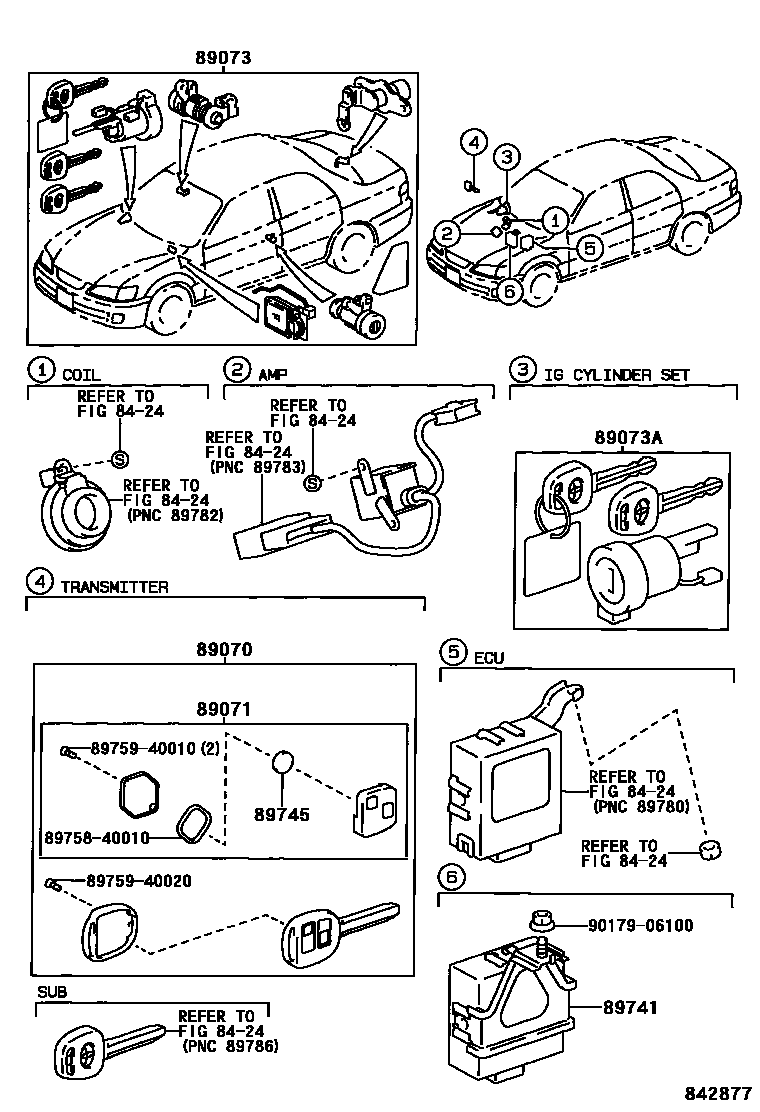

WIRELESS DOOR LOCK

0001 1 0002 1W/O(ENGIEN IMMOBILIZER SYSTEM

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-33290iSXV20..LHD..MTM;MCV20,SXV20..ATM199908-200012

W/O(THEFT-DETERRENT SYSTEM)

sub89070-33291

main89070-33291iSXV20..LHD..MTM;MCV20,SXV20..ATM200012

W/O(THEFT-DETERRENT SYSTEM)

main89070-33300iMCV20,SXV20..RHD..ATM199908

HONG KONG SPEC

main89070-33330iSXV20..RHD..ATM199908

SINGAPORE SPEC & W/O(THEFT-DETERRENT SYSTEM)

main89070-60360iMCV20,SXV20..RHD199908-200012

sub89070-60361

main89070-60361iMCV20,SXV20200012

sub89070-60362

main89070-60410iMCV20,SXV20..LHD199908-200012

sub89070-60361

main89070-60420iMCV20,SXV20..LHD199908-200012

FRANCE SPEC

sub89070-60361

main89070-60430iMCV20,SXV20..LHD199908-200012

GERMAN SPEC

sub89070-60361

main89070-60440iMCV20,SXV20..LHD199908-200012

DENMARK SPEC OR ICELAND SPEC

sub89070-60361

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-33060iMCV20,SXV20199908-200012

W/O(THEFT-DETERRENT SYSTEM)

sub89071-33061

main89071-33061iSXV20..LHD..MTM;MCV20,SXV20..ATM200012

W/O(THEFT-DETERRENT SYSTEM)

main89071-33070iMCV20,SXV20..RHD..ATM199908

HONG KONG SPEC

main89071-33100iSXV20..RHD..ATM199908

SINGAPORE SPEC & W/O(THEFT-DETERRENT SYSTEM)

main89071-60080iMCV20,SXV20199908-200012

sub89071-60081¥16,500

main89071-60081iMCV20,SXV20¥16,500200012

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-33180iMCV20,SXV20..RHD199908-200012

sub89073-33181

main89073-33181iMCV20,SXV20200012

main89073-33200iMCV20,SXV20199908-200012

W/O(THEFT-DETERRENT SYSTEM)

sub89073-33201

main89073-33201iSXV20..LHD..MTM;MCV20,SXV20..ATM200012

W/O(THEFT-DETERRENT SYSTEM)

main89073-33210iMCV20,SXV20..LHD199908-200012

GERMAN SPEC

sub89073-33181

main89073-33220iMCV20,SXV20..LHD199908-200012

DENMARK SPEC OR ICELAND SPEC

sub89073-33181

main89073-33230iMCV20,SXV20..LHD199908-200012

FRANCE SPEC

sub89073-33181

main89073-33240iMCV20,SXV20..RHD..ATM199908

HONG KONG SPEC

main89073-33250iSXV20..RHD..ATM199908

SINGAPORE SPEC & W/O(THEFT-DETERRENT SYSTEM)

main89073-33350iMCV20,SXV20..LHD199908-200012

sub89073-33181

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-33060iMCV20,SXV20..RHD199908-200012

sub89073-33061

main89073-33061iMCV20,SXV20200012

main89073-33070iMCV20,SXV20..LHD199908-200012

sub89073-33061

main89073-33080iMCV20,SXV20..LHD199908-200012

GERMAN SPEC

sub89073-33061

main89073-33090iMCV20,SXV20..LHD199908-200012

DENMARK SPEC OR ICELAND SPEC

sub89073-33061

main89073-33100iMCV20,SXV20..LHD199908-200012

FRANCE SPEC

sub89073-33061

main89073-33110iMCV20,SXV20..RHD..ATM199908

HONG KONG SPEC

89741RECEIVER, DOOR CONTROL

main89741-33250iMCV20,SXV20¥52,100199908-200012

sub89741-33251¥52,100

main89741-33251iMCV20,SXV20¥52,100200012

main89741-33260iMCV20,SXV20..RHD..ATM¥52,100199908

HONG KONG SPEC

main89741-33270iSXV20..RHD..ATM¥52,100199908

SINGAPORE SPEC & W/O(THEFT-DETERRENT SYSTEM)

89745BATTERY, TRANSMITTER

main89745-40010iMCV20,SXV20¥440199908

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010¥220

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010¥120

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020¥120

9017906100

main90179-06100¥120

11 parts on this diagram · 2 diagrams in section
