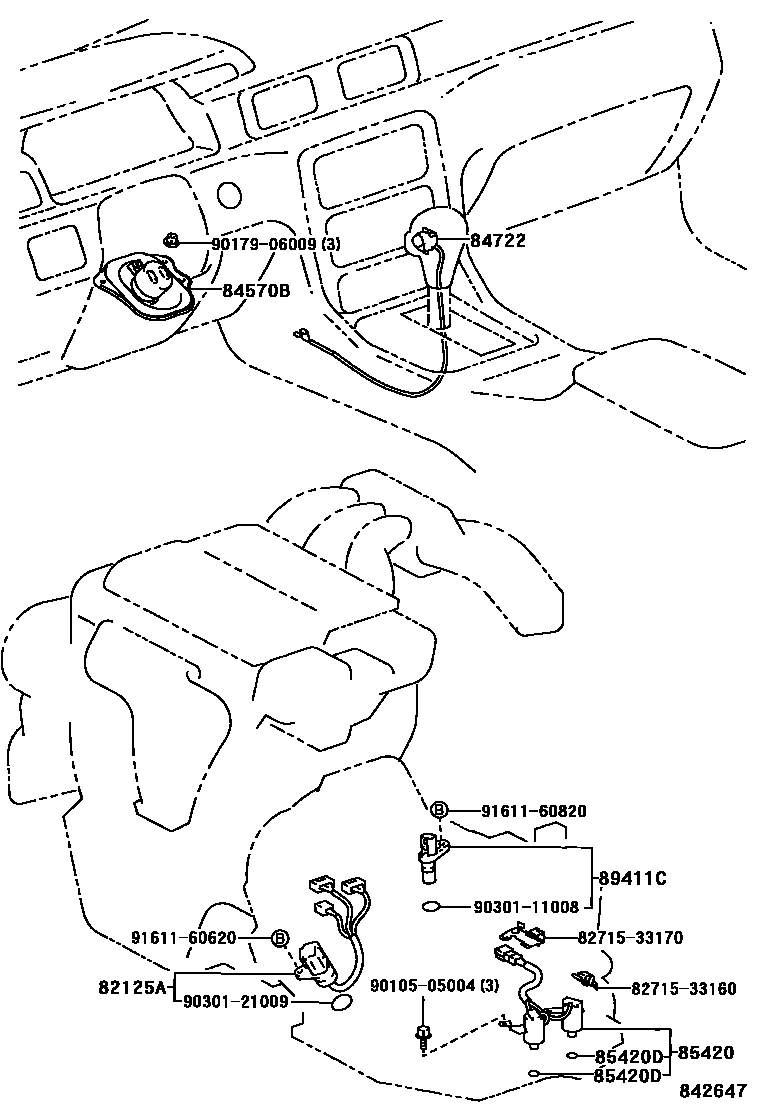

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-20150iSXV20..ATM199608

main82125-33010iMCV20199608

84570BSWITCH ASSY, KICK DOWN

main84570-33010iMCV20,SXV20..LHD..ATM199608

84722SWITCH, TRANSMISSION CONTROL

main84722-33030-B0iMCV20,SXV20..ATM199908

BLUISH GRAY,TRIM1#

sub84722-33070

sub84722-60130

main84722-33030-C0iMCV20,SXV20..ATM199608-199908

BLACK,TRIM1#,4#,6#

sub84722-33070

sub84722-60130

main84722-33030-E0iMCV20,SXV20..ATM199908

OAK,TRIM4#

sub84722-33070

sub84722-60130

main84722-33030-G0iMCV20,SXV20..ATM199908

DK.SAGE,TRIM6#

sub84722-33070

sub84722-60130

85420SOLENOID ASSY, TRANSMISSION

main85420-20110iSXV20..ATM199608

NO.3

main85420-32021iSXV20..ATM199608

NO.1

main85420-32140iSXV20..ATM199608

NO.2

sub85420-32041

main85420-33010iMCV20199608

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMCV20199608

NO.1

main90301-06005iSXV20..ATM199608

NO.2,ID=6.6

main96721-19017iSXV20..ATM199608

NO.3,ID=16.8

89411CSENSOR, SPEED

main89411-33010iMCV20199608

TOYOTA

sub89413-24010

main89413-24010iMCV20199608

AISIN

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

9010505004

main90105-05004

9017906009

main90179-06009

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

14 parts on this diagram · 2 diagrams in section
