CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06030iMCV20,SXV20199608-199805

main84630-0W010iMCV20,SXV20199710

(L)

main84630-33010iSXV20..LHD..ATM199808

BRAZIL SPEC,L=125,REFER TO ILLUSTRAITION

main84630-33060iSXV20..LHD..ATM199808-199908

BRAZIL SPEC,L=115,REFER TO ILLUSTRAITION

main84630-33060iMCV20,SXV20199808

(J)

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33030iMCV20,SXV20..ATM199608-199908

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-33010iMCV20,SXV20..ATM199608-199908

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33090iMCV20,SXV20..LHD199608-199808

main88240-33100iMCV20,SXV20..RHD199608-199808

main88240-33140iMCV20,SXV20..LHD199808

main88240-33150iMCV20,SXV20..RHD199808

88280CSWITCH ASSY, CLUTCH

main88280-14030iSXV20..LHD..MTM199608

main88280-20030iSXV20..RHD..MTM199608

9011906518

main90119-06518

9015950199

main90159-50199

9017906070

main90179-06070

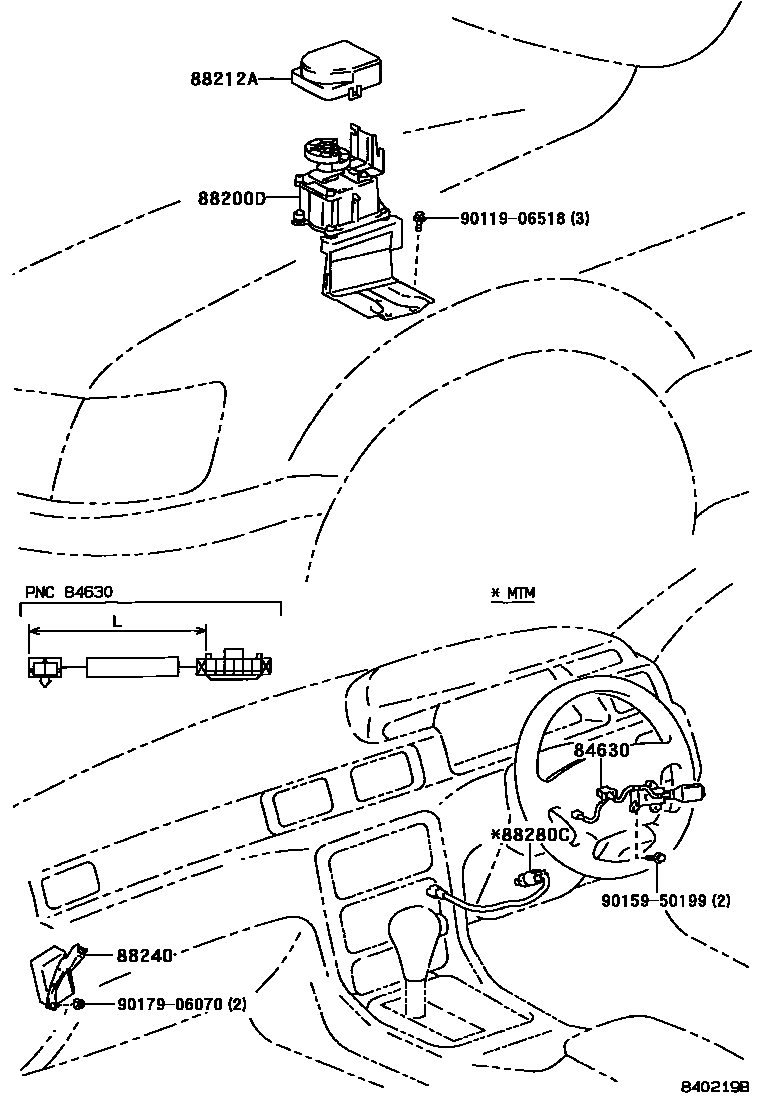

8 parts on this diagram · 1 diagram in section
