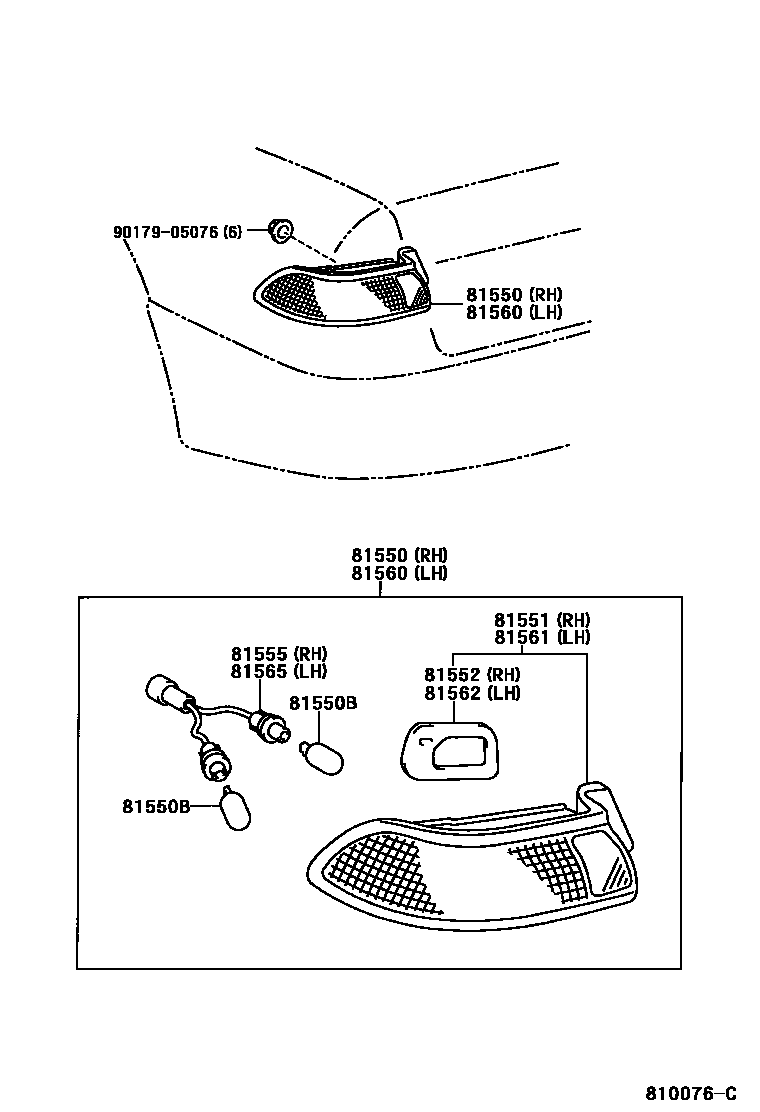

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-33030iMCV20,SXV20199608-199908

main81550-33210iMCV20,SXV20199908

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iMCV20,SXV20199608-199908

12V 21W

main90981-13044iMCV20,SXV20199608

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-33030iMCV20,SXV20199608-199908

main81551-33210iMCV20,SXV20199908

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-33030iMCV20,SXV20199608-199908

main81552-33210iMCV20,SXV20199908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33030iMCV20,SXV20199608-199908

main81555-33210iMCV20,SXV20199908

81560LAMP ASSY, REAR COMBINATION, LH

main81560-33030iMCV20,SXV20199608-199908

main81560-33210iMCV20,SXV20199908

81561LENS, REAR COMBINATION LAMP, LH

main81561-33030iMCV20,SXV20199608-199908

main81561-33210iMCV20,SXV20199908

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-33210iMCV20,SXV20199908

main81562-33030iMCV20,SXV20199608-199908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33030iMCV20,SXV20199608-199908

main81555-33210iMCV20,SXV20199908

9017905076

main90179-05076

10 parts on this diagram · 1 diagram in section
