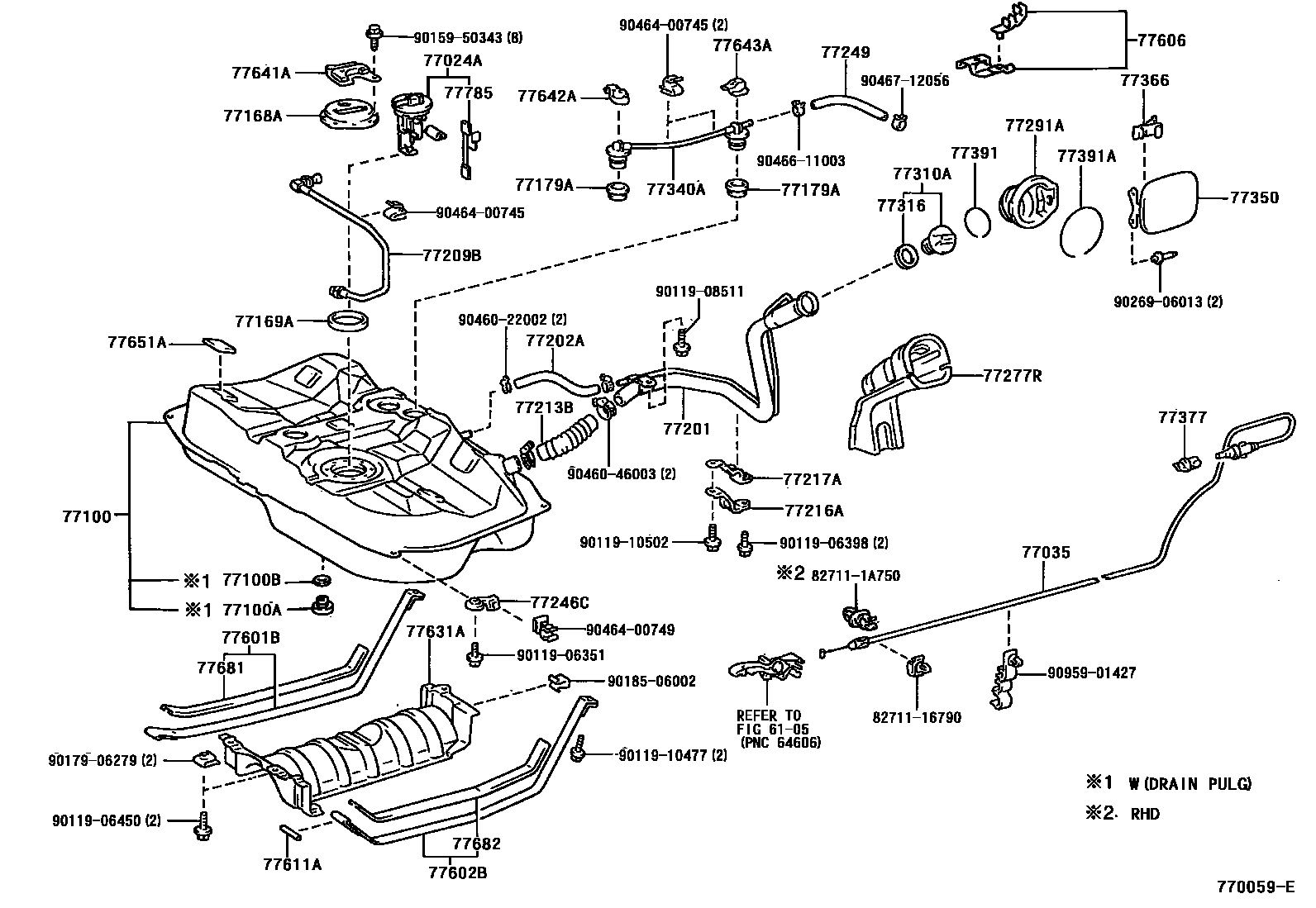

FUEL TANK & TUBE
6105
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
W(DRAIN PLUG)
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
FUEL TANK = W(DRAIN PLUG)TYPE
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=240
L=240,CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC
L=240
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
L=224
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77246CSUPPORT, FUEL MAIN TUBE
77249HOSE, FUEL EMISSION
HONG KONG SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC
CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC
CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77631APROTECTOR, FUEL TANK, LOWER CENTER
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
CHILE SPEC;VENEZUELA SPEC;BRAZIL SPEC;SINGAPORE SPEC;CHINA SPEC;CENTRAL AMERICA SPEC OR SOUTH AMERICA SPEC
77643APROTECTOR, FUEL TANK, NO.3
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011906351
9011906398
9011906450
9011908511
9011910477
9011910502
9015950343
9017906279
9018506002
9026906013
9046022002
9046046003
9046400745
9046400749
9046611003
9046712056
9095901427
58 parts on this diagram · 3 diagrams in section
