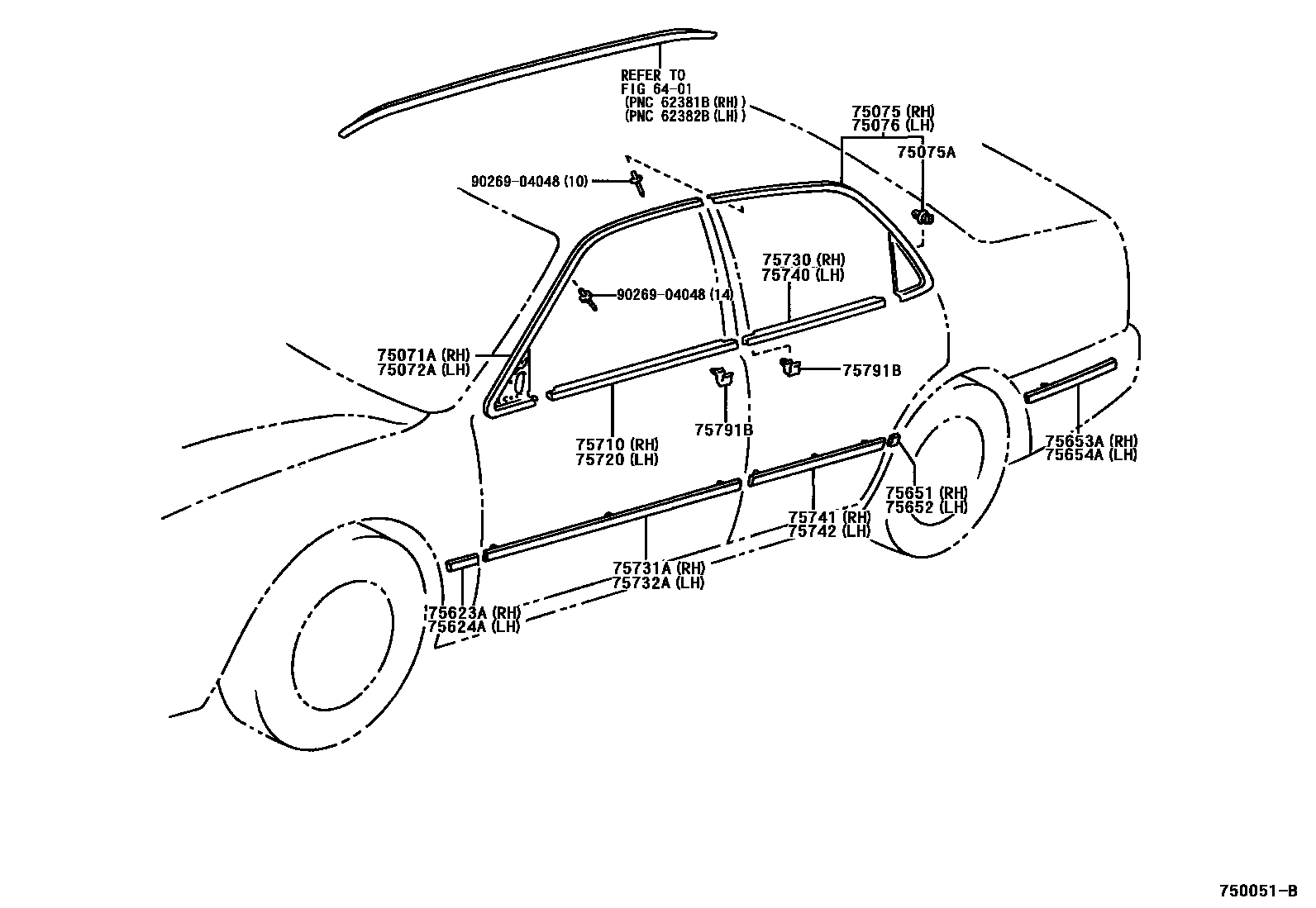

SIDE MOULDING
6401
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
75651MOULDING, QUARTER, OUTSIDE RH
75652MOULDING, QUARTER, OUTSIDE LH
75653AMOULDING, QUARTER, OUTSIDE REAR RH
SUPER WHITE 2,040
GRAY M.M.,1B2
DK.GRAY M.M.,1C6
SLVER ME.,1C8
BLACK,202
DK.RED MC.,3N6
BEIGE ME.,4M9
GREEN MC.,6R1
BLUE M.M.,8N4
BLUE M.M.,8N7
75654AMOULDING, QUARTER, OUTSIDE REAR LH
SUPER WHITE 2,040
GRAY M.M.,1B2
DK.GRAY M.M.,1C6
SLVER ME.,1C8
BLACK,202
DK.RED MC.,3N6
BEIGE ME.,4M9
GREEN MC.,6R1
BLUE M.M.,8N4
BLUE M.M.,8N7
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
75732AMOULDING, FRONT DOOR, OUTSIDE LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
75742MOULDING, REAR DOOR, OUTSIDE LH
75791BCLIP, BELT MOULDING SIDE
9026904048
main90269-04048
22 parts on this diagram · 1 diagram in section
