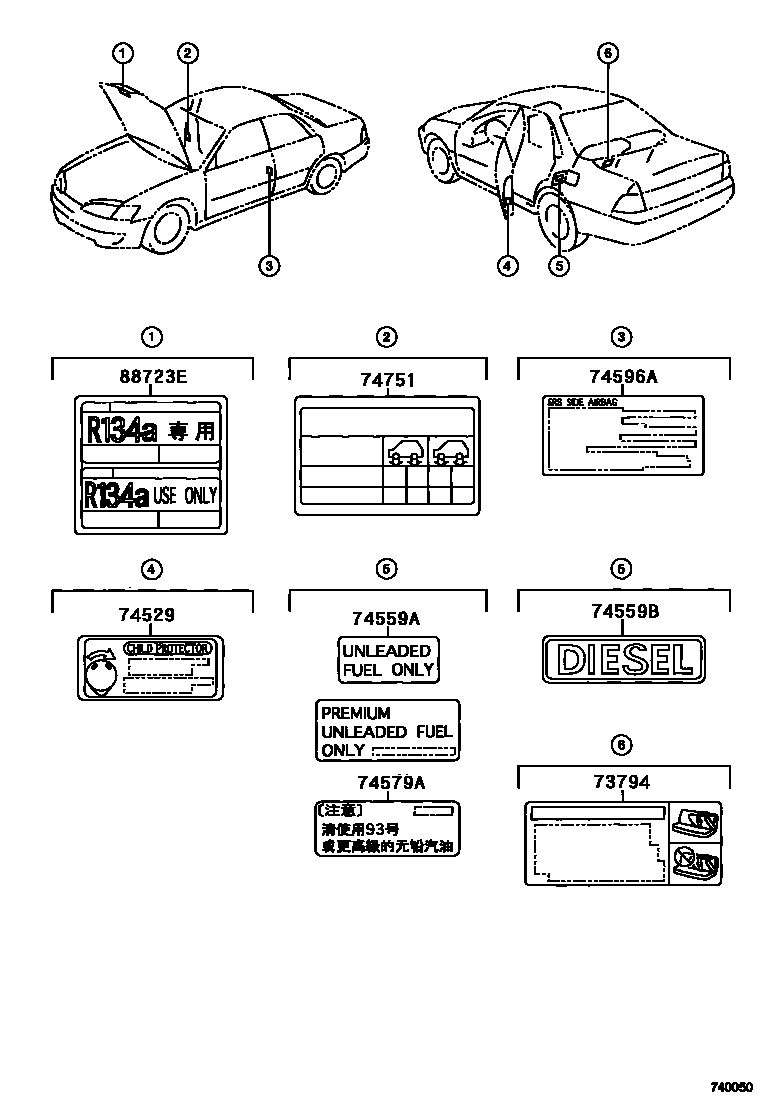

CAUTION PLATE (EXTERIOR & INTERIOR)

73794LABEL, REAR SEAT BELT NOTICE

main73794-33010iMCV20,SXV20199608

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-33010iMCV20,SXV20199608

RH

main69349-33010iMCV20,SXV20199608

LH

74559APLATE, FUEL CAUTION

main74559-14050iMCV20,SXV20199608

UNLEADED FUEL

main74559-50010iSXV20..LHD..MTM;MCV20,SXV20..ATM199608

PREMIUM UNLEADED FUEL

main74559-50020iSXV20..LHD..ATM199702-199908

CHINA SPEC

74559BLABEL, FUEL INFORMATION

main74559-50020iMCV20..LHD199702-199908

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-33010iMCV20,SXV20..LHD..ATM199903

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12011×2iMCV20,SXV20199708

main74596-30050×2iMCV20,SXV20..LHD..ATM199708

CHINA SPEC

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33300iMCV20,SXV20199608

205/65R15

main42661-33370iSXV20..ATM;SXV20..LHD..MTM199608-199908

195/70R14

88723ELABEL, COOLER SERVICE CAUTION

main88723-14010iMCV20,SXV20199608

8 parts on this diagram · 1 diagram in section
