SEAT BELT & CHILD RESTRAINT SEAT

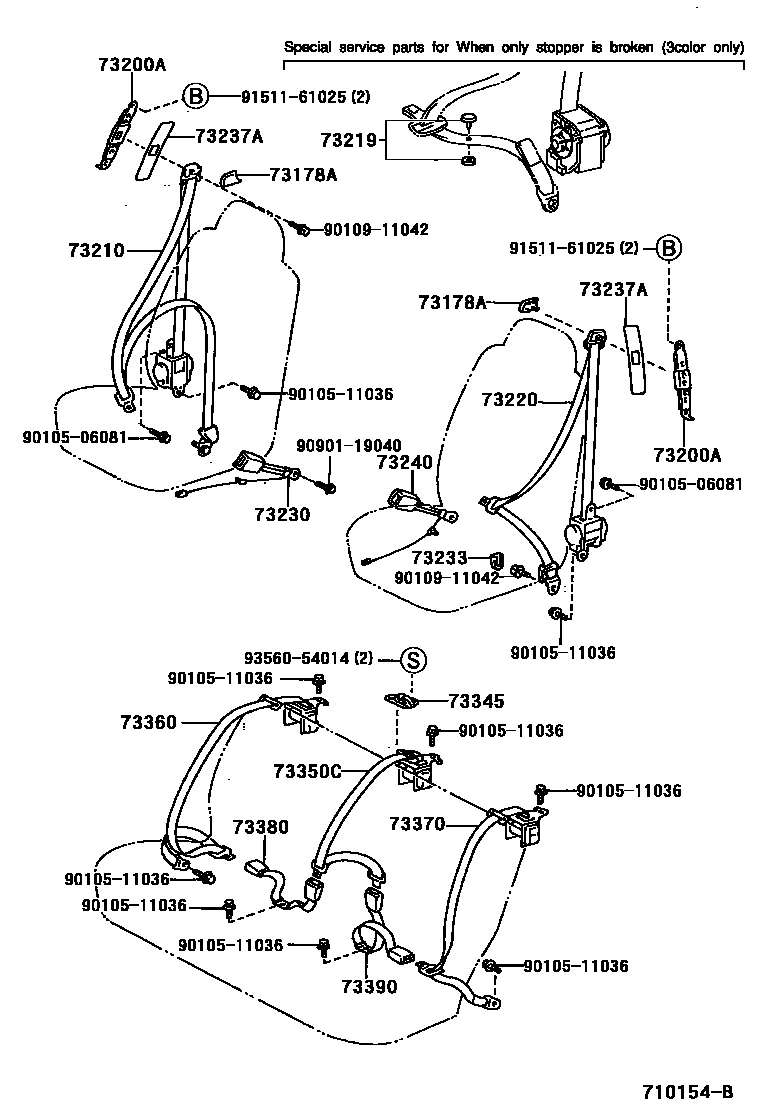

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-33010-A0i199608-200008
IVORY,TRIM4#
sub73178-33010
main73178-33010-B0i199608-200008
LT.GRAY,TRIM1#
sub73178-33010
main73178-33010-G0i199608-200008
SAGE,TRIM6#
sub73178-33010
main73178-33020-A0i200008
IVORY,TRIM4#
sub73178-33020
main73178-33020-B6i200008
LT.GRAY,TRIM1#
sub73178-33020
main73178-33020-G0i200008
SAGE,TRIM6#
sub73178-33020
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-33040-A0i199808
IVORY,TRIM4#
main73200-33040-B0i199808
LT.GRAY,TRIM1#
main73200-33040-G0i199808
SAGE,TRIM6#
main73200-AA010-A0i199608-199808
IVORY,TRIM4#
main73200-AA010-B1i199608-199808
LT.GRAY,TRIM1#
main73200-AA010-G1i199608-199808
SAGE,TRIM6#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33080-B0i199608-199708
BLUISH GRAY,TRIM1#
sub73210-33080
main73210-33080-E0i199608-199708
OAK,TRIM4#
sub73210-33080
main73210-33080-G0i199608-199708
DARK AGATE,TRIM6#
sub73210-33080
main73210-33180-B0i199708-199802
BLUISH GRAY,TRIM1#
sub73210-33190
main73210-33180-E0i199708-199802
OAK,TRIM4#
sub73210-33190
main73210-33180-G0i199708-199802
DARK AGATE,TRIM6#
sub73210-33190
main73210-33181-B0i199808-200008
BLUISH GRAY,TRIM1#
sub73210-33181
main73210-33181-E0i199808-200008
OAK,TRIM4#
sub73210-33181
main73210-33181-G0i199808-200008
DARK AGATE,TRIM6#
sub73210-33181
main73210-33182-B0i200008
BLUISH GRAY,TRIM1#
sub73210-33182
main73210-33182-E0i200008
OAK,TRIM4#
sub73210-33182
main73210-33182-G0i200008
DARK AGATE,TRIM6#
sub73210-33182
main73210-33190-B0i199802-199808
BLUISH GRAY,TRIM1#
sub73210-33190
main73210-33190-E0i199802-199808
OAK,TRIM4#
sub73210-33190
main73210-33190-G0i199802-199808
DARK AGATE,TRIM6#
sub73210-33190
73219STOPPER, TONGUE PLATE
main73219-33010i200009-200109
BLACK
main73219-33020i200009-200109
GRAY
main73219-33030i200009-200109
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33080-B0i199608-199708
BLUISH GRAY,TRIM1#
sub73220-33080
main73220-33080-E0i199608-199708
OAK,TRIM4#
sub73220-33080
main73220-33080-G0i199608-199708
DARK AGATE,TRIM6#
sub73220-33080
main73220-33170-B0i199708-199802
BLUISH GRAY,TRIM1#
sub73220-33180
main73220-33170-E0i199708-199802
OAK,TRIM4#
sub73220-33180
main73220-33170-G0i199708-199802
DARK AGATE,TRIM6#
sub73220-33180
main73220-33171-B0i199808-200008
BLUISH GRAY,TRIM1#
sub73220-33171
main73220-33171-E0i199808-200008
OAK,TRIM4#
sub73220-33171
main73220-33171-G0i199808-200008
DARK AGATE,TRIM6#
sub73220-33171
main73220-33172-B0i200008
BLUISH GRAY,TRIM1#
sub73220-33172
main73220-33172-E0i200008
OAK,TRIM4#
sub73220-33172
main73220-33172-G0i200008
DARK AGATE,TRIM6#
sub73220-33172
main73220-33180-B0i199802-199808
BLUISH GRAY,TRIM1#
sub73220-33180
main73220-33180-E0i199802-199808
OAK,TRIM4#
sub73220-33180
main73220-33180-G0i199802-199808
DARK AGATE,TRIM6#
sub73220-33180
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33180-B0i199608
BLUISH GRAY,TRIM1#
sub73230-33210
main73230-33180-E0i199608
OAK,TRIM4#
sub73230-33210
main73230-33180-G0i199608
DK.SAGE,TRIM6#
sub73230-33210
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-B0i199608
BLUISH GRAY,TRIM1#
sub73233-33010
main73233-33010-E0i199608
OAK,TRIM4#
sub73233-33010
main73233-33010-G0i199608
DK.SAGE,TRIM6#
sub73233-33010
73237ACOVER, SHOULDER BELT ANCHOR
main73237-AA010-A0i199608
IVORY,TRIM4#
main73237-AA010-B0i199608
LT.GRAY,TRIM1#
main73237-AA010-G0i199608
SAGE,TRIM6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33180-B0i199608
BLUISH GRAY,TRIM1#
sub73230-33210
main73230-33180-E0i199608
OAK,TRIM4#
sub73230-33210
main73230-33180-G0i199608
DK.SAGE,TRIM6#
sub73230-33210
73345GUIDE, REAR SEAT SHOULDER BELT, CENTER
main73345-33010-B0i199608
BLUE GRAY,TRIM1#
sub73345-33010
main73345-33010-E0i199608
MD.OAK,TRIM4#
sub73345-33010
main73345-33010-G0i199608
SAGE,TRIM6#
sub73345-33010
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-0W030-B0i199608-199707
BLUISH GRAY,TRIM1#
sub73350-0W030
main73350-0W030-E0i199608-199707
OAK,TRIM4#
sub73350-0W030
main73350-0W030-G0i199608-199707
DARK AGATE,TRIM6#
sub73350-0W030
main73350-0W050-B0i199707-199808
BLUISH GRAY,TRIM1#
sub73350-0W050
main73350-0W050-E0i199707-199808
OAK,TRIM4#
sub73350-0W050
main73350-0W050-G0i199707-199808
DARK AGATE,TRIM6#
sub73350-0W050
main73350-0W051-B0i199808
BLUISH GRAY,TRIM1#
sub73350-0W051
main73350-0W051-E0i199808
OAK,TRIM4#
sub73350-0W051
main73350-0W051-G0i199808
DARK AGATE,TRIM6#
sub73350-0W051
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-0W080-B0i199608-199707
BLUISH GRAY,TRIM1#
sub73360-0W080
main73360-0W080-E0i199608-199707
OAK,TRIM4#
sub73360-0W080
main73360-0W080-G0i199608-199707
DARK AGATE,TRIM6#
sub73360-0W080
main73360-0W120-B0i199707-199808
BLUISH GRAY,TRIM1#
sub73360-0W120
main73360-0W120-E0i199707-199808
OAK,TRIM4#
sub73360-0W120
main73360-0W120-G0i199707-199808
DARK AGATE,TRIM6#
sub73360-0W120
main73360-0W121-B0i199808
BLUISH GRAY,TRIM1#
sub73360-0W121
main73360-0W121-E0i199808
OAK,TRIM4#
sub73360-0W121
main73360-0W121-G0i199808
DARK AGATE,TRIM6#
sub73360-0W121
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-0W060-B0i199608-199707
BLUISH GRAY,TRIM1#
sub73370-0W060
main73370-0W060-E0i199608-199707
OAK,TRIM4#
sub73370-0W060
main73370-0W060-G0i199608-199707
DARK AGATE,TRIM6#
sub73370-0W060
main73370-0W090-B0i199707-199808
BLUISH GRAY,TRIM1#
sub73370-0W090
main73370-0W090-E0i199707-199808
OAK,TRIM4#
sub73370-0W090
main73370-0W090-G0i199707-199808
DARK AGATE,TRIM6#
sub73370-0W090
main73370-0W091-B0i199808
BLUISH GRAY,TRIM1#
sub73370-0W091
main73370-0W091-E0i199808
OAK,TRIM4#
sub73370-0W091
main73370-0W091-G0i199808
DARK AGATE,TRIM6#
sub73370-0W091
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73470-AA010-B0i199608
BLUISH GRAY,TRIM1#
sub73470-AA010
main73470-AA010-E0i199608
OAK,TRIM4#
sub73470-AA010
main73470-AA010-G0i199608
DARK AGATE,TRIM6#
sub73470-AA010
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-0W040-B0i199608
BLUISH GRAY,TRIM1#
sub73480-0W040
main73480-0W040-E0i199608
OAK,TRIM4#
sub73480-0W040
main73480-0W040-G0i199608
DARK AGATE,TRIM6#
sub73480-0W040
9010506081
main90105-06081
9010511036
main90105-11036
9010911042
main90109-11042
9090119040
main90901-19040
9151161025
main91511-61025
9356054014
main93560-54014

21 parts on this diagram · 1 diagram in section
