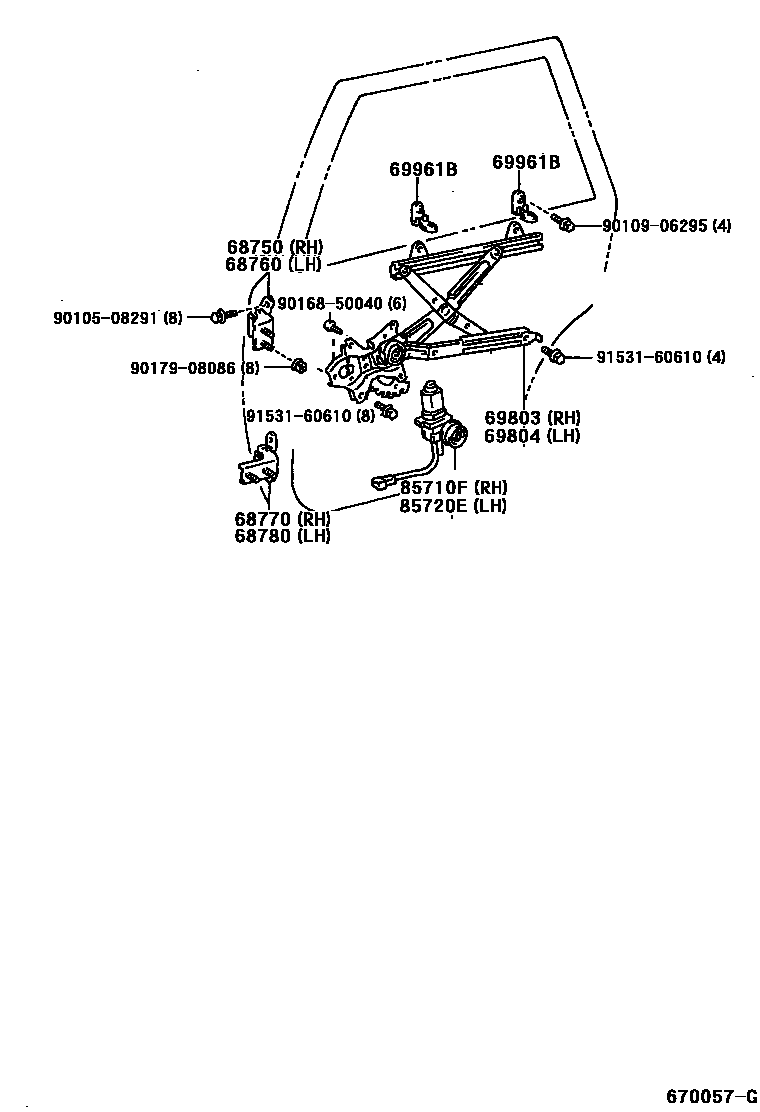

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iMCV20,SXV20¥3,270199608

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iMCV20,SXV20¥3,270199608

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33010iMCV20,SXV20¥3,260199608

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33010iMCV20,SXV20¥3,260199608

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33010iMCV20,SXV20¥7,500199608

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33010iMCV20,SXV20¥7,500199608

69961BRETAINER, REAR DOOR GLASS

main69961-33010iMCV20,SXV20¥440199608

FRONT

main69963-33010iMCV20,SXV20¥390199608

REAR

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30300iMCV20,SXV20¥25,300199608

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33060iMCV20,SXV20¥25,300199608

9010508291

main90105-08291¥90

9010906295

main90109-06295¥110

9016850040

main90168-50040¥70

9017908086

main90179-08086¥160

9153160610

main91531-60610¥110

14 parts on this diagram · 1 diagram in section
