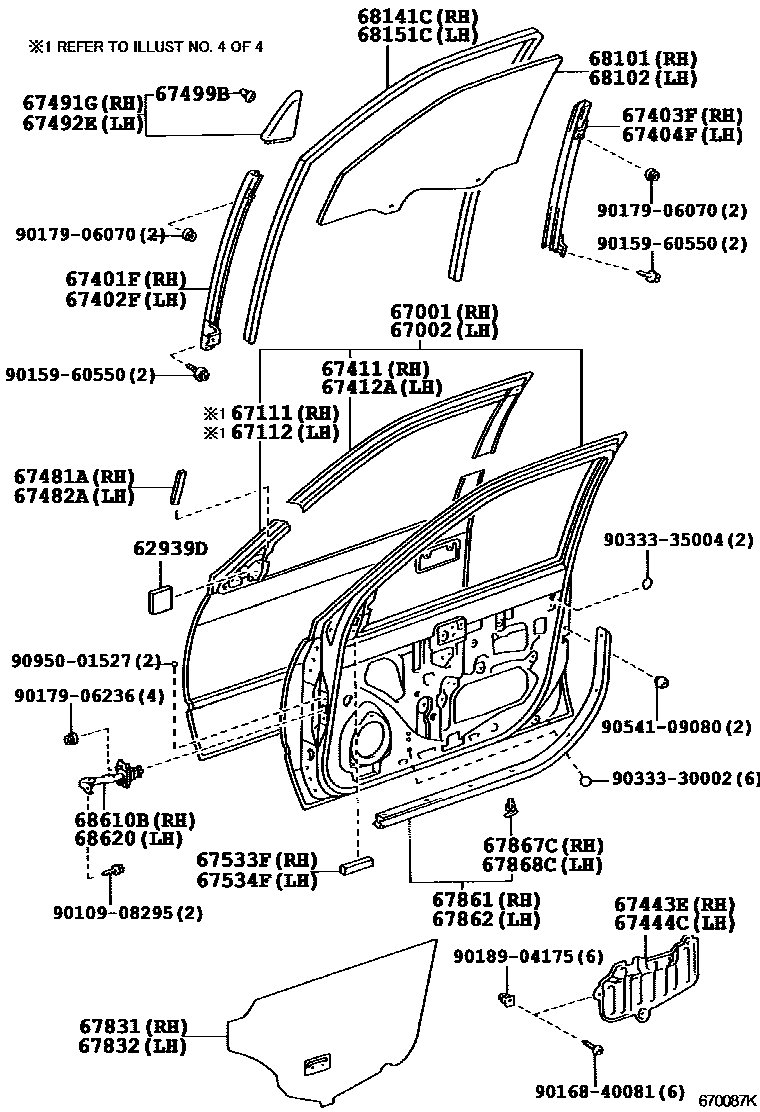

FRONT DOOR PANEL & GLASS
62939DSILENCER, QUARTER VENT
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH
67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH
67443EPLATE, FRONT DOOR INSIDE PANEL, RH
67444CPLATE, FRONT DOOR INSIDE PANEL, LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491GGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(6 SPEAKER)
W(SPEAKER)
67492EGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(SPEAKER)
W(6 SPEAKER)
67499BRETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2
67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH
67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCTT,T=4.0,GREEN
*UVCTT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCTT,T=4.0,GREEN
*UVCTT,T=5.0,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
9010908295
9015960550
9016840081
9017906070
9017906236
9018904175
9033330002
9033335004
9054109080
9095001527
42 parts on this diagram · 4 diagrams in section
