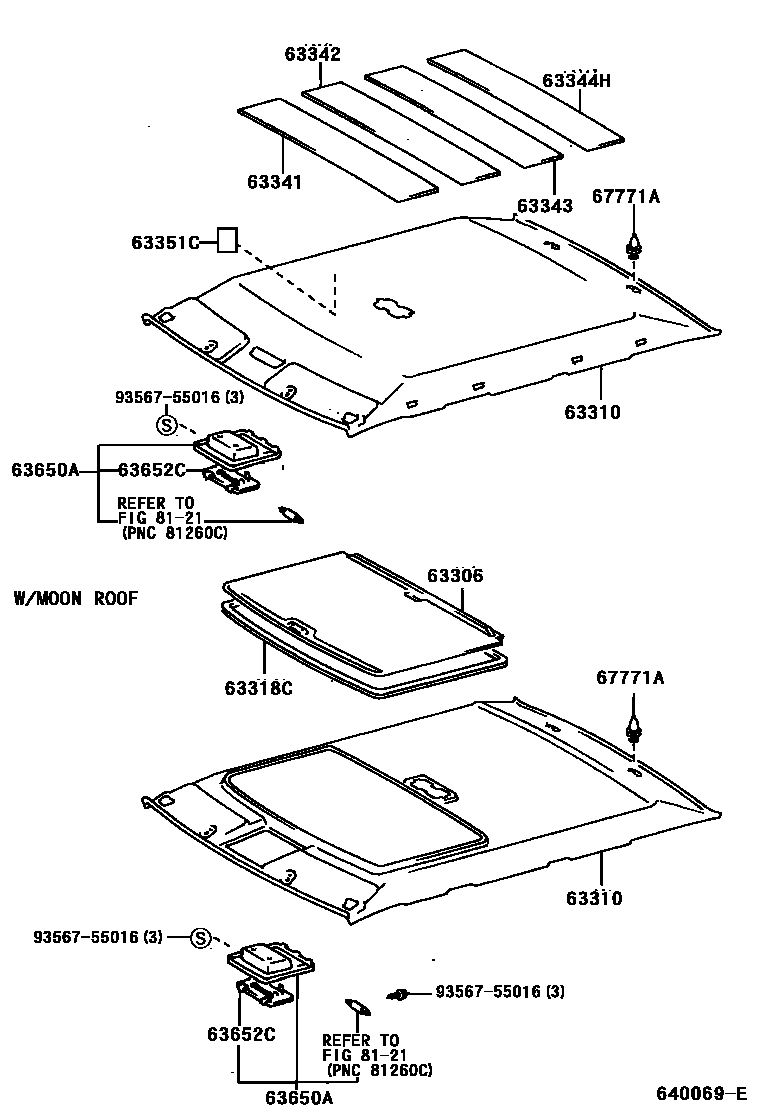

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
IVORY,TRIM4#
LIGHT GRAY,TRIM1#
SAGE,TRIM6#
63310HEADLINING ASSY, ROOF
63318CMOULDING, SUN ROOF OPENING TRIM
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63344HPAD, ROOF SILENCER, NO.4
63351CPAD, ROOF HEADLINING
sub63351-60010
63650ABOX ASSY, ROOF CONSOLE
63652CCOVER, ROOF CONSOLE BOX
IVORY,TRIM4#
LT.GRAY,TRIM1#
SAGE,TRIM6#
67771ARETAINER, ROOF HEADLINING
8121
9356755016
main93567-55016
13 parts on this diagram · 1 diagram in section
