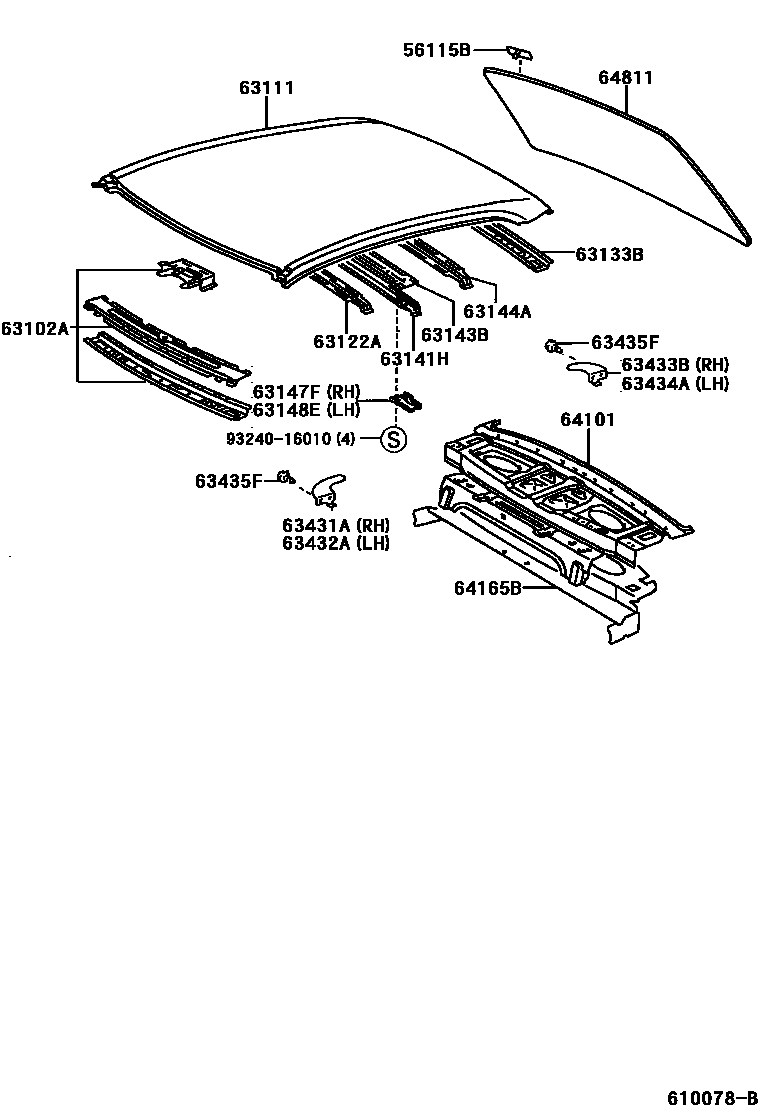

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
63122AREINFORCEMENT, ROOF PANEL, FRONT
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
W(MOON ROOF)
63147FBRACKET, ROOF PANEL REINFORCEMENT, RH
63148EBRACKET, ROOF PANEL REINFORCEMENT, LH
63431ABRACKET, ROOF INNER RACK, NO.1 RH
W(MOON ROOF)
63432ABRACKET, ROOF INNER RACK, NO.1 LH
W(MOON ROOF)
63433BBRACKET, ROOF INNER RACK, NO.2 RH
63434ABRACKET, ROOF INNER RACK, NO.2 LH
63435FSEAL, ROOF CARRIER, NO.1
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
9324016010
main93240-16010
19 parts on this diagram · 3 diagrams in section
