COWL PANEL & WINDSHIELD GLASS

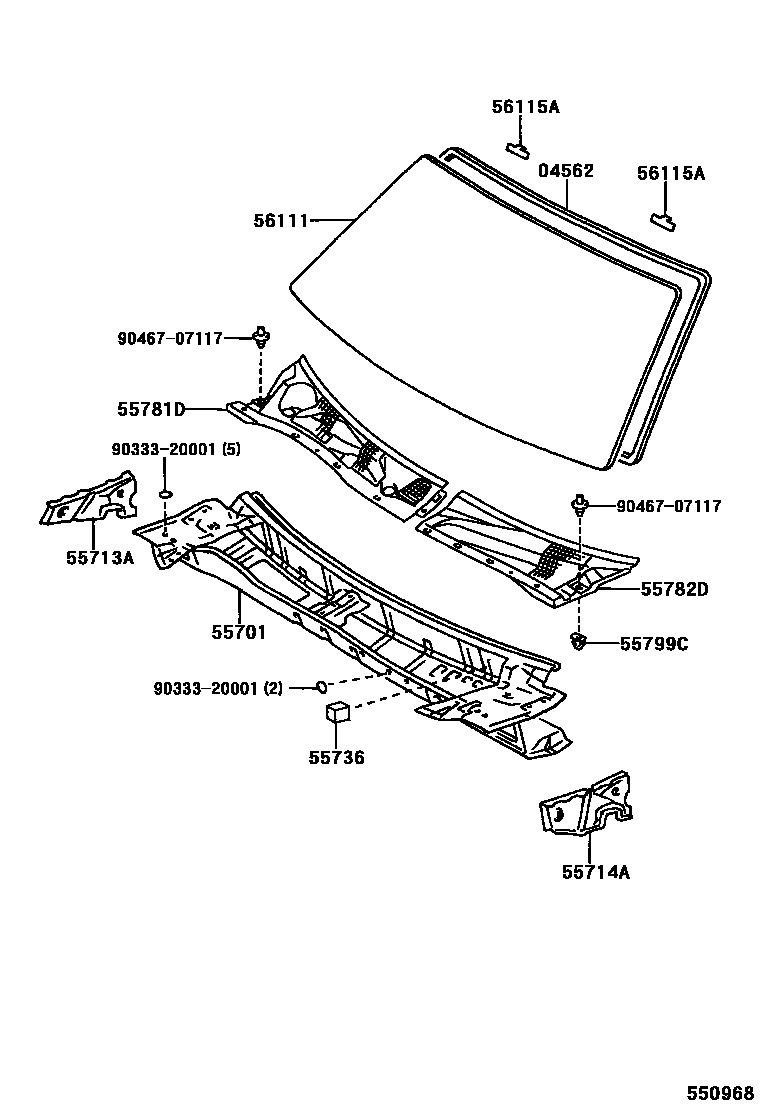

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i¥2,100199608

55701PANEL SUB-ASSY, COWL

main55700-33100i¥43,300199608

main55700-33130i¥43,300199608

main55700-33140i¥43,300199608

55713APANEL, COWL TOP SIDE, RH

main55713-33020i¥2,150199608

55714APANEL, COWL TOP SIDE, LH

main55714-33020i¥2,150199608

55736SEAL, WATER GUARD PLATE

main55736-33010i¥140199810-199902

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-33120i¥5,800199608-199908

main55781-33130i¥5,800199608-199810

sub55781-33131¥5,800

main55781-33131i¥5,800199810-199908

main55781-33161i¥5,200199908-200109

main55781-33180i¥9,300199908-200108

main55781-33190i¥10,300199908-200108

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-33120i¥5,800199608-199908

main55782-33130i¥5,800199608-199810

sub55782-33131¥5,800

main55782-33131i¥5,800199810-199901

sub55782-33132¥5,800

main55782-33132i¥5,800199901-199908

main55782-33162i¥5,200199908

main55782-33180i¥9,300199908

main55782-33190i¥10,300199908

COLD SPEC

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-33010i¥350199810-199908

56111GLASS, WINDSHIELD

main56101-0W010i¥104,000199701-199908

*LAM,T=4.7,GREEN,(L)

sub56101-0W050¥104,000

sub56115-30100¥130

main56101-0W010i¥104,000199608-199701

*LAM,T=4.7,GREEN

sub56101-0W050¥104,000

sub56115-30100¥130

main56101-0W050i¥104,000199801

*LAM,T=4.7,GREEN

main56101-33240i¥98,900199701-199708

*LAM,T=4.7,GREEN,(J)

sub56101-0W010¥104,000

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i¥130199910

main56115-33020i¥360199608-199801

main56115-33040i¥270199801-199910

sub56115-30100¥130

sub56116-22050¥120

9033320001

main90333-20001¥70

9046707117

main90467-07117¥90

12 parts on this diagram · 2 diagrams in section
