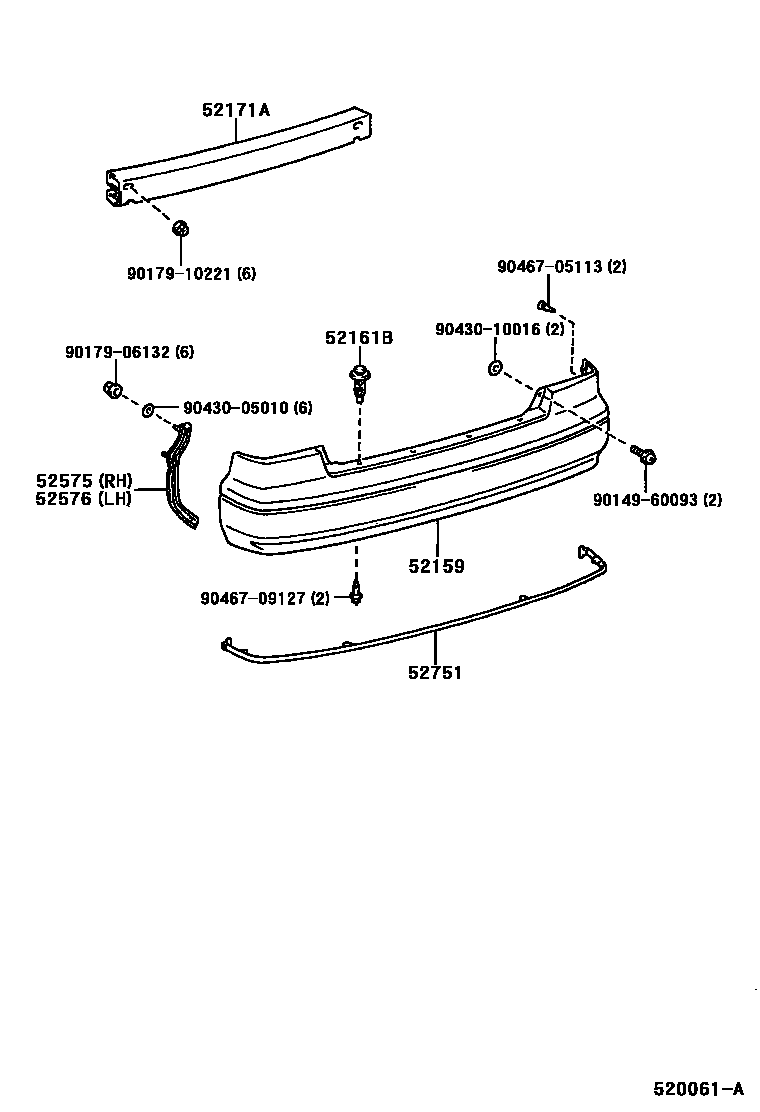

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-33905iMCV20,SXV20199608-199908

main52159-33908iMCV20,SXV20199908

52161BPIECE, REAR BUMPER

main52161-16010iMCV20,SXV20199608

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-33030iMCV20,SXV20199608

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33060iMCV20,SXV20199608

52576RETAINER, REAR BUMPER SIDE, LH

main52576-33060iMCV20,SXV20199608

52751MOULDING, REAR BUMPER

main52751-33010iMCV20,SXV20199608-199908

main52751-33040iMCV20,SXV20199908

9014960093

main90149-60093

9017906132

main90179-06132

9017910221

main90179-10221

9043005010

main90430-05010

9043010016

main90430-10016

9046705113

main90467-05113

9046709127

main90467-09127

13 parts on this diagram · 1 diagram in section
