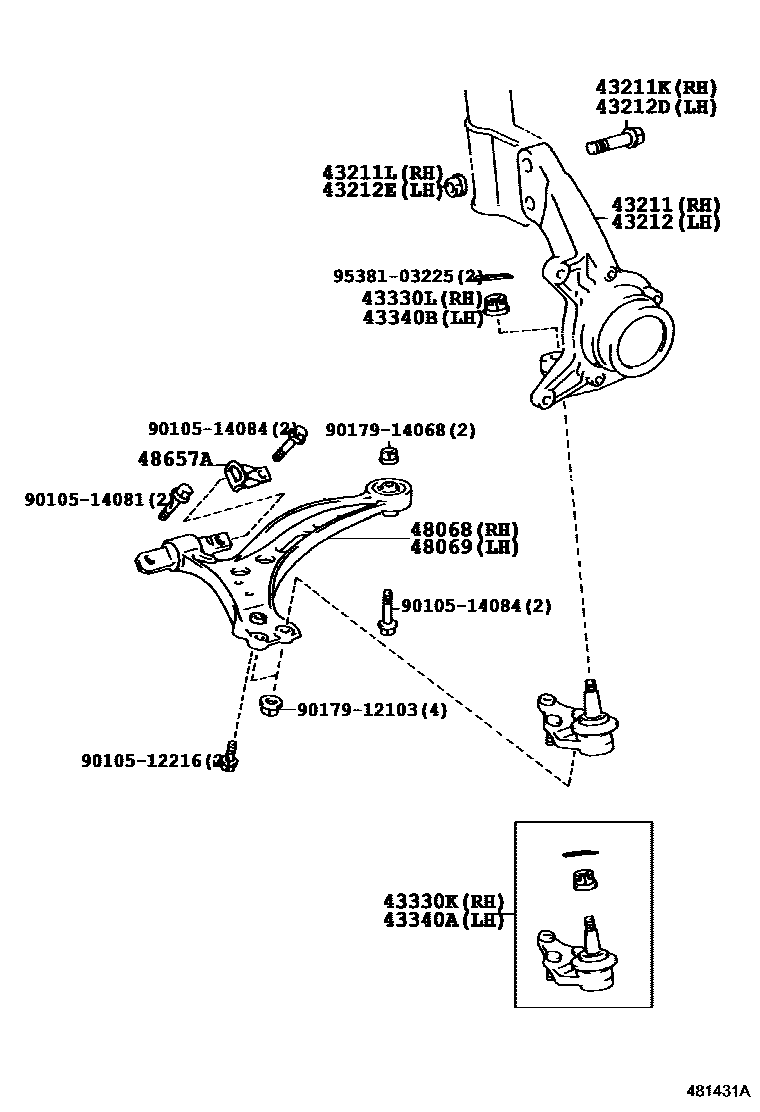

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=17
OD=15.9
OD=15
OD=14
OD=17
OD=15.9
OD=15
OD=14
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=17
OD=15.9
OD=15
OD=14
OD=17
OD=15.9
OD=15
OD=14
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
sub48068-33031
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
sub48069-33031
48657ASTOPPER, FRONT LOWER ARM BUSH
9010512216
main90105-12216
9010514081
main90105-14081
9010514084
main90105-14084
9017912103
main90179-12103
9017914068
main90179-14068
9538103225
main95381-03225
19 parts on this diagram · 1 diagram in section
