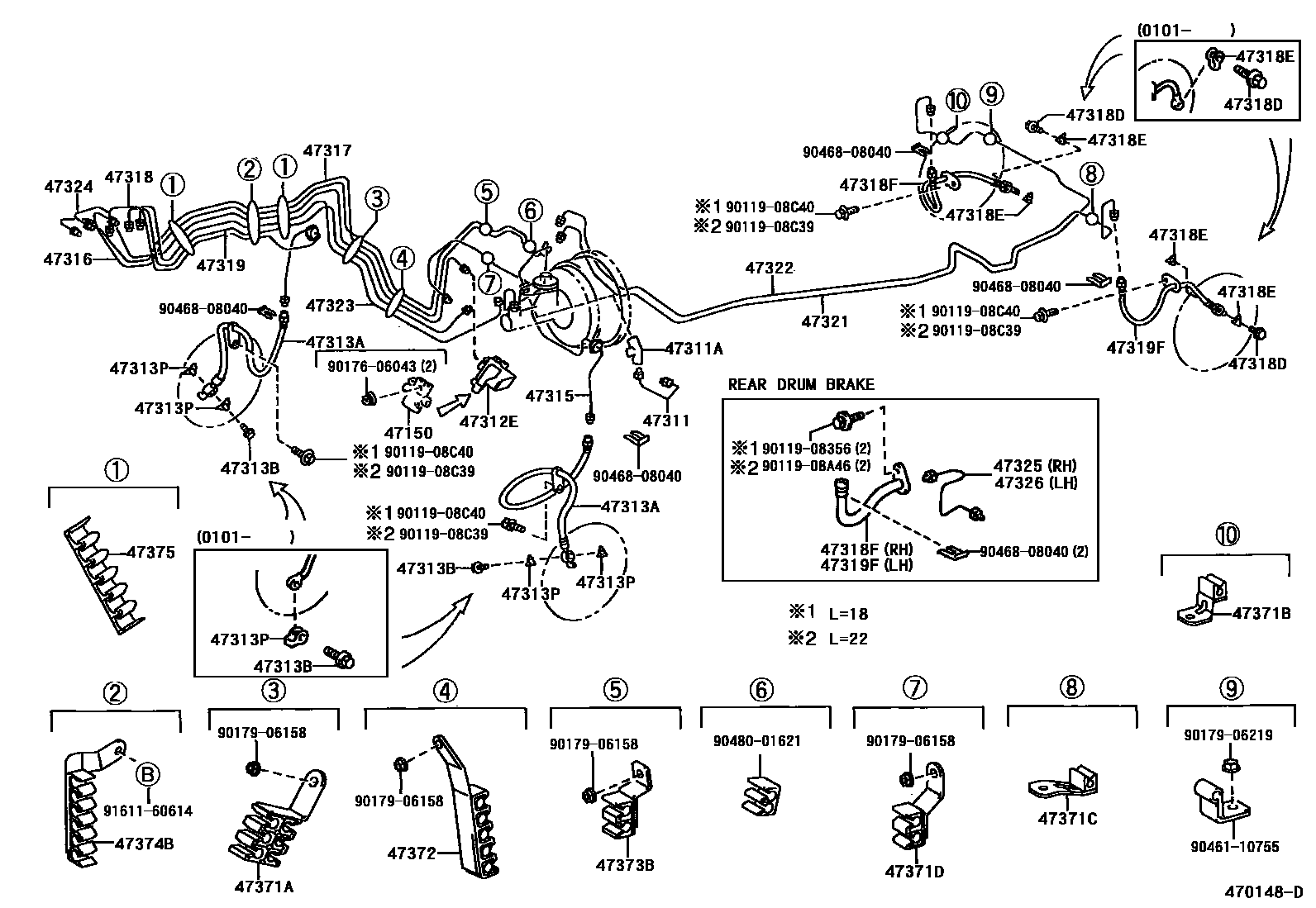

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
W(14 INCHES DISC WHEEL)
47311TUBE, FRONT BRAKE, NO.1
W(TRACTION CONTROL)
47311AWAY(FOR FRONT BRAKE TUBE)
W(TRACTION CONTROL)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
W(TRACTION CONTROL)
W(TRACTION CONTROL)
47317TUBE, FRONT BRAKE, NO.7
W(TRACTION CONTROL)
W(TRACTION CONTROL)
47318TUBE, FRONT BRAKE, NO.8
W(TRACTION CONTROL)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
W(REAR DISC BRAKE)
47319TUBE, FRONT BRAKE, NO.9
W(TRACTION CONTROL)
W(TRACTION CONTROL)
47319FHOSE, FLEXIBLE(FOR REAR LH)
W(REAR DISC BRAKE)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
W(TRACTION CONTROL)
W(TRACTION CONTROL)
47324TUBE, REAR BRAKE, NO.4
W(TRACTION CONTROL)
W(TRACTION CONTROL)
47325TUBE, REAR BRAKE, NO.5
47326TUBE, REAR BRAKE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
W(TRACTION CONTROL)
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
9011908356
main90119-08356
9011908A46
main90119-08A46
9011908C39
main90119-08C39
9011908C40
main90119-08C40
9017606043
main90176-06043
9017906158
main90179-06158
9017906219
main90179-06219
9046110755
main90461-10755
9046808040
main90468-08040
9048001621
main90480-01621
9161160614
main91611-60614
41 parts on this diagram · 6 diagrams in section
