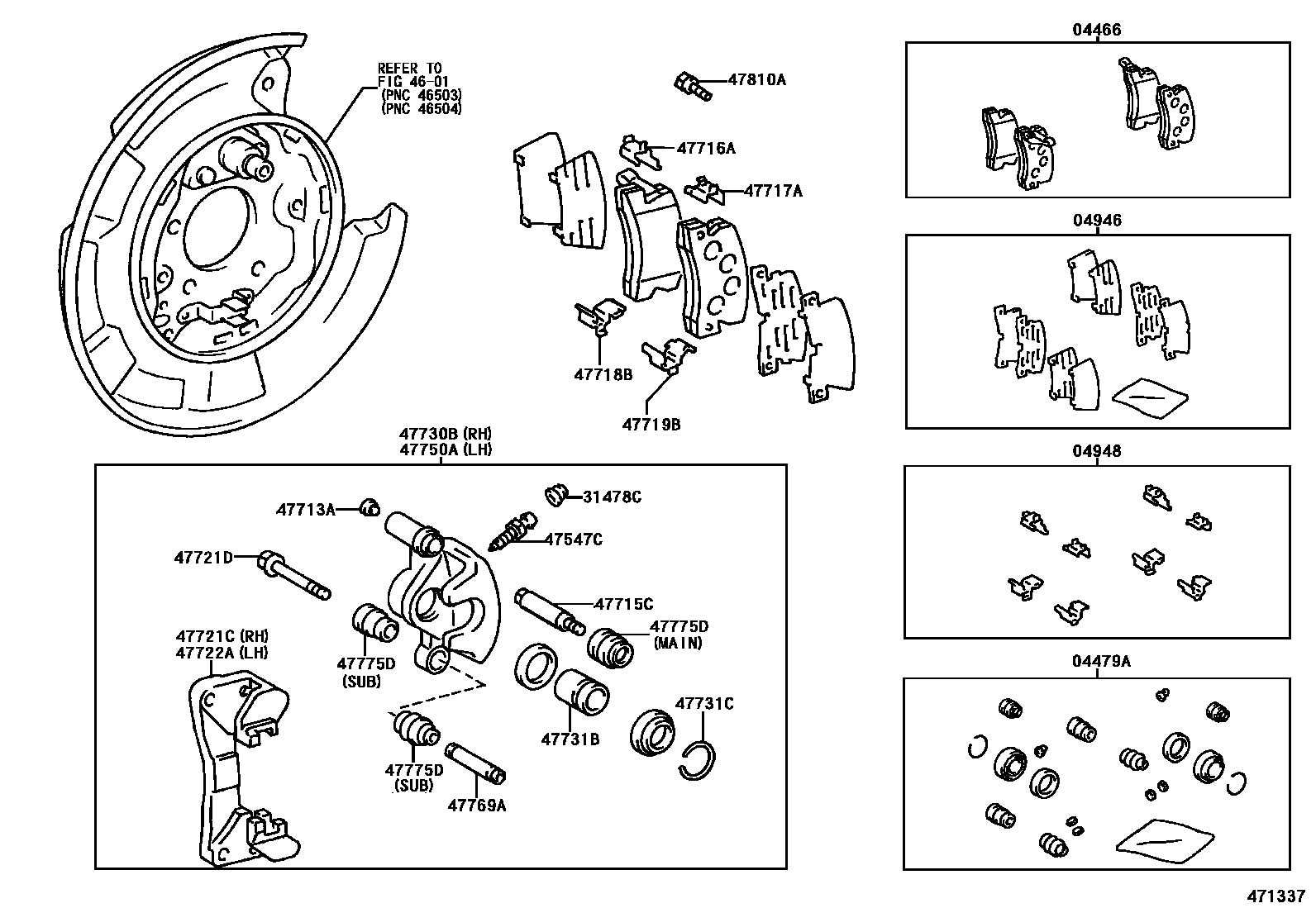

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK PA544,TYPE B:REFER TO ILLUSTRATION
MARK AK PA544,LATIN AMERICA SPEC
04479ACYLINDER KIT, DISC BRAKE, REAR
PISTON:OD=34.8
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
LATIN AMERICA SPEC
04948FITTING KIT, DISC BRAKE, REAR
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
TYPE A:REFER TO ILLUSTRATION
47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION,MAIN PIN SIDE
TYPE B:REFER TO ILLUSTRATION,SUB PIN SIDE
TYPE A:REFER TO ILLUSTRATION
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
TYPE A:REFER TO ILLUSTRATION
47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
TYPE A:REFER TO ILLUSTRATION
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
TYPE A:REFER TO ILLUSTRATION
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.25PX68-30
*8-1.25PX68-30,TYPE A:REFER TO ILLUSTRATION
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
TYPE A:REFER TO ILLUSTRATION
PISTON:OD=34.8
TYPE B:REFER TO ILLUSTRATION
47731BPISTON, REAR DISC BRAKE
PISTON:OD=34.8
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
TYPE A:REFER TO ILLUSTRATION
PISTON:OD=34.8
TYPE B:REFER TO ILLUSTRATION
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
TYPE A:REFER TO ILLUSTRATION
PISTON:OD=34.8
TYPE B:REFER TO ILLUSTRATION
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
TYPE A:REFER TO ILLUSTRATION
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
TYPE A:REFER TO ILLUSTRATION,SUB PIN SIDE
SUB PIN SIDE
TYPE A:REFER TO ILLUSTRATION,MAIN PIN SIDE
MAIN PIN SIDE
TYPE B:REFER TO ILLUSTRATION
47810ABOLT, HEXAGON(FOR REAR CALIPER)
