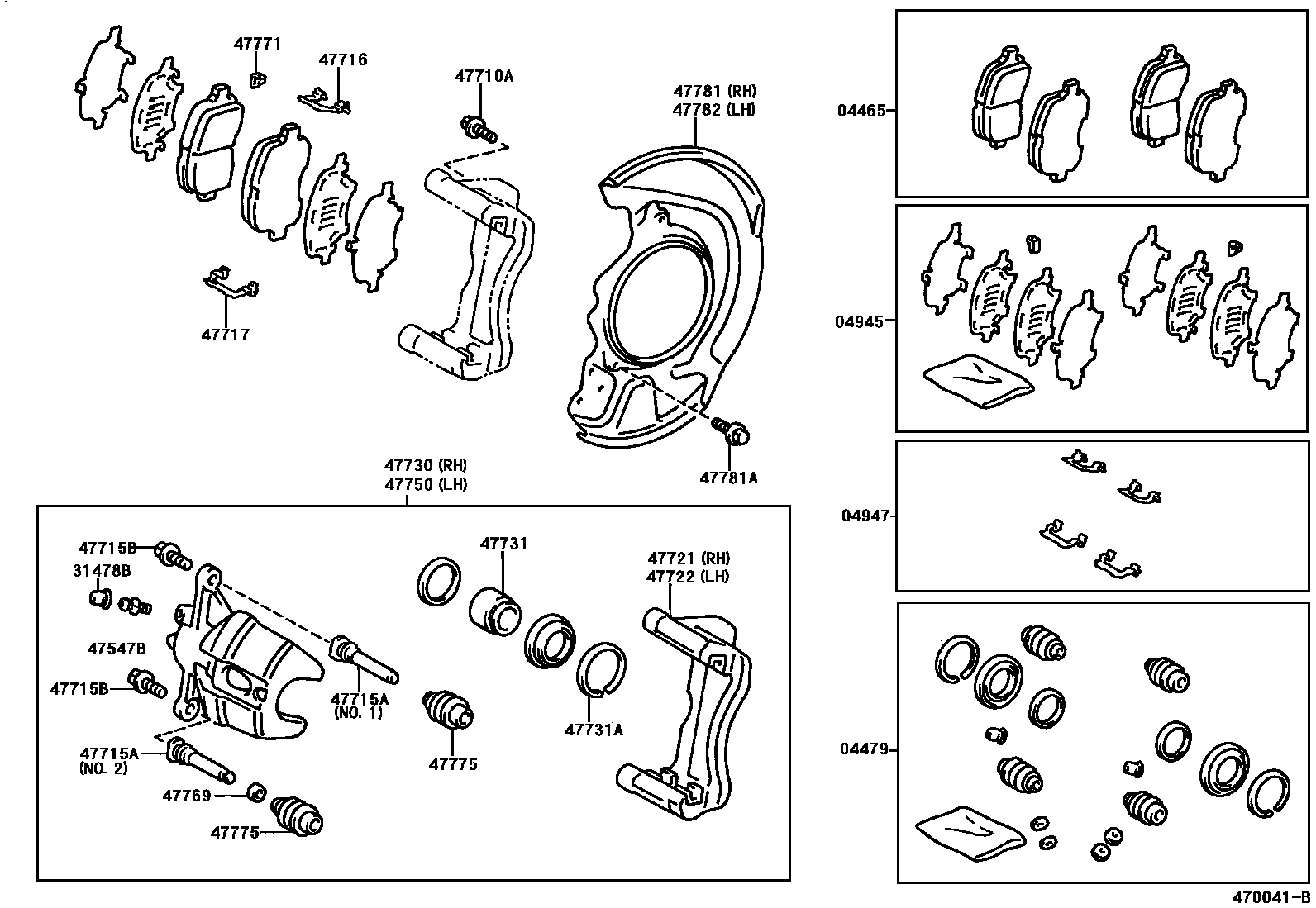

FRONT DISC BRAKE CALIPER & DUST COVER

Parts diagram
04465PAD KIT, DISC BRAKE, FRONT
main04465-20260i199908
MARK NBK PN532H,TYPE A:REFER TO ILLUSTRATION
sub04465-20590
main04465-33120i199608-199812
MARK AK PA533,MIDDLE SOUTH AMERICA SPEC
sub04465-33121
main04465-33121i199812-199908
MARK AK PA533,BRAZIL OR CHILE OR CHINA OR HONG KONG SPEC OR LATIN AMERICA(UNLEADED) OR VENEZUELA SPEC
main04465-33130i199608-199712
MARK AISIN PC513
main04465-33150i199712-199908
MARK NBK PN540H
sub04465-20550
main04465-33180i199908
MARK AK PA552H,TYPE B:REFER TO ILLUSTRATION
main04465-33210i199608-199908
MARK AK PA522H,BRAZIL OR CHILE OR SINGAPORE OR HONG KONG SPEC OR LATIN AMERICA ORVENEZUELA SPEC
04479CYLINDER KIT, DISC BRAKE, FRONT
main04479-20170i199608-199908
W(14 INCHES DISC WHEEL)
main04479-33130i199608-199908
W(15 INCHES DISC WHEEL)
main04479-33130i199908
TYPE B:REFER TO ILLUSTRATION
main04479-50080i199908
TYPE A:REFER TO ILLUSTRATION
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-33010i199908
TYPE A:REFER TO ILLUSTRATION
main04945-33030i199608-199908
W(14 INCHES DISC WHEEL)
main04945-33040i199608-199908
W(15 INCHES DISC WHEEL)
main04945-33040i199908
TYPE B:REFER TO ILLUSTRATION
04947FITTING KIT, DISC BRAKE, FRONT
main04947-33050i199908
TYPE A:REFER TO ILLUSTRATION
main04947-33110i199608-199908
W(14 INCHES DISC WHEEL)
main04947-33120i199608-199908
W(15 INCHES DISC WHEEL)
main04947-33160i199908
TYPE B:REFER TO ILLUSTRATION
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010i199608
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-20010i199608
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-12208i199608
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
main47715-24010i199908
TYPE A:REFER TO ILLUSTRATION,NO.2
main47715-33010i199908
TYPE A:REFER TO ILLUSTRATION,NO.1
main47715-33030i199608-199908
NO.2
sub47715-48010
main47715-33040i199608-199908
NO.1
sub47715-48020
main47715-48010i199908
TYPE B:REFER TO ILLUSTRATION,NO.2
sub47815-48090
main47715-48020i199908
TYPE B:REFER TO ILLUSTRATION,NO.1
main47715-50010i199608-199908
W(14 INCHES DISC WHEEL),NO.2
main47715-50030i199608-199908
W(14 INCHES DISC WHEEL),NO.1
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
main90105-08164i199608-199708
main90105-08346i199708-199908
main90105-08346i199908
TYPE B:REFER TO ILLUSTRATION
main90109-08214i199908
TYPE A:REFER TO ILLUSTRATION
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47716-33031i199908
TYPE A:REFER TO ILLUSTRATION
main47716-33050i199608-199908
W(14 INCHES DISC WHEEL)
main47716-33080i199608-199908
W(15 INCHES DISC WHEEL)
main47716-33080i199908
TYPE B:REFER TO ILLUSTRATION
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
main47716-33041i199908
TYPE A:REFER TO ILLUSTRATION
main47716-33060i199608-199908
W(14 INCHES DISC WHEEL)
main47716-33080i199608-199908
W(15 INCHES DISC WHEEL)
main47717-33070i199908
TYPE B:REFER TO ILLUSTRATION
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-33050i199908
TYPE A:REFER TO ILLUSTRATION
main47721-33080i199608-199908
W(15 INCHES DISC WHEEL)
sub47721-33081
main47721-33080i199908
TYPE B:REFER TO ILLUSTRATION
sub47721-33081
main47721-33090i199608-199612
W(14 INCHES DISC WHEEL)
sub47721-33091
main47721-33091i199612-199908
W(14 INCHES DISC WHEEL)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47721-33080i199908
TYPE B:REFER TO ILLUSTRATION
sub47721-33081
main47721-33080i199608-199908
W(15 INCHES DISC WHEEL)
sub47721-33081
main47722-33050i199908
TYPE A:REFER TO ILLUSTRATION
main47722-33060i199608-199612
W(14 INCHES DISC WHEEL)
sub47722-33061
main47722-33061i199612-199908
W(14 INCHES DISC WHEEL)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-33080i199908
TYPE A:REFER TO ILLUSTRATION
main47730-33110i199608-199612
W(14 INCHES DISC WHEEL)
sub47730-33111
main47730-33111i199612-199908
W(14 INCHES DISC WHEEL)
main47730-33120i199608-199908
W(15 INCHES DISC WHEEL)
main47730-33120i199908
TYPE B:REFER TO ILLUSTRATION
47731PISTON, FRONT DISC BRAKE
main47731-20190i199608-199908
W(14 INCHES DISC WHEEL)
main47731-33030i199908
TYPE A:REFER TO ILLUSTRATION
main47731-33050i199608-199908
W(15 INCHES DISC WHEEL)
main47731-33050i199908
TYPE B:REFER TO ILLUSTRATION
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90522-49001i199908
TYPE A:REFER TO ILLUSTRATION
main90522-66001i199608-199908
W(15 INCHES DISC WHEEL)
main90522-67001i199908
TYPE B:REFER TO ILLUSTRATION
main90522-67001i199608-199908
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-33080i199908
TYPE A:REFER TO ILLUSTRATION
main47750-33110i199608-199612
W(14 INCHES DISC WHEEL)
sub47750-33111
main47750-33111i199612-199908
W(14 INCHES DISC WHEEL)
main47750-33120i199908
TYPE B:REFER TO ILLUSTRATION
main47750-33120i199608-199908
W(15 INCHES DISC WHEEL)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
main47769-33020i199608-199908
W(15 INCHES DISC WHEEL)
main47769-33020i199908
TYPE B:REFER TO ILLUSTRATION
main47769-50010i199608-199908
W(14 INCHES DISC WHEEL)
main47769-50010i199908
TYPE A:REFER TO ILLUSTRATION
47771PLATE, PAD WEAR INDICATOR, NO.1
main47771-33010i199608
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
main47775-20080i199608-199908
W(14 INCHES DISC WHEEL)
sub47775-30070
main47775-33020i199908
TYPE B:REFER TO ILLUSTRATION
main47775-33020i199608-199908
W(15 INCHES DISC WHEEL)
main47775-50010i199908
TYPE A:REFER TO ILLUSTRATION
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-33010i199608-199908
W(14 INCHES DISC WHEEL)
main47781-33020i199608
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
main90109-06134i199802-200101
main90119-06227i199608-199802
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-33010i199608-199908
W(14 INCHES DISC WHEEL)
main47782-33020i199608

23 parts on this diagram · 4 diagrams in section
