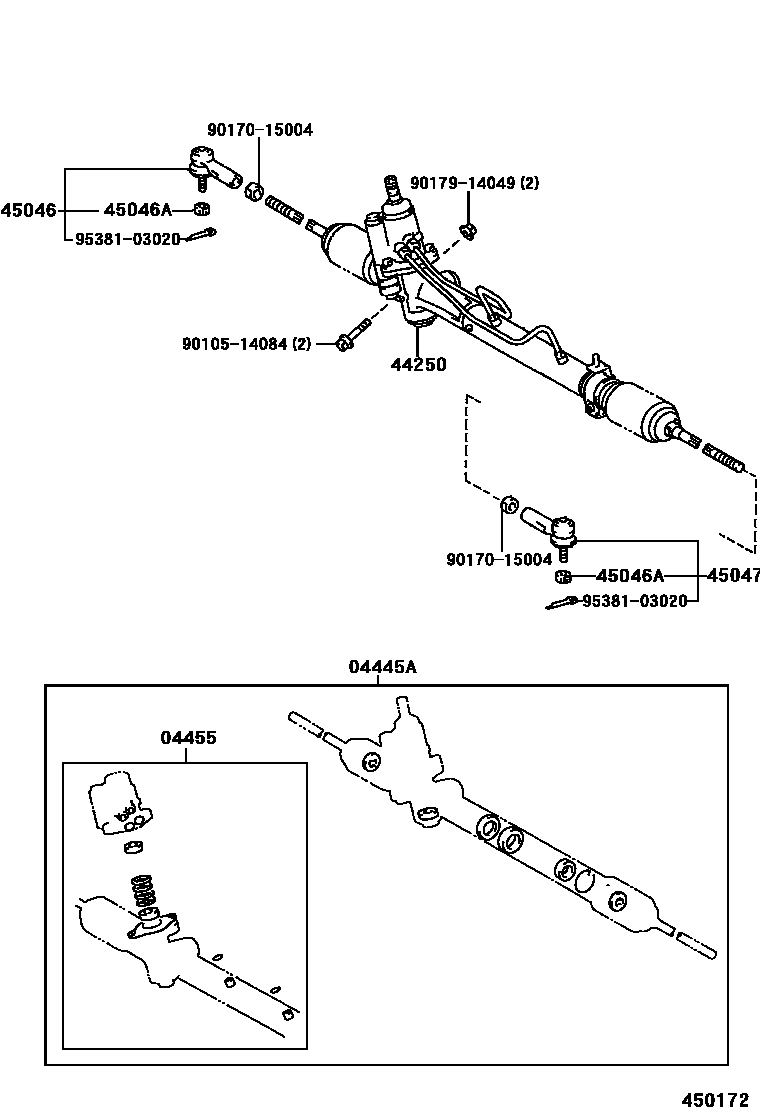

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33050iMCV20,SXV20199608-199610

sub04445-33070

main04445-33070iMCV20,SXV20199610-199908

main04445-33080iMCV20,SXV20199908

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCV20,SXV20199608

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33150iSXV20..LHD199608-199908

W(14 INCHES DISC WHEEL)

main44250-33191iMCV20..LHD199608-199710

sub44250-33192

main44250-33192iMCV20,SXV20..LHD199710-199908

main44250-33201iMCV20..RHD199608-199710

sub44250-33202

main44250-33202iMCV20,SXV20..RHD199710-199908

sub44250-33171

main44250-33211iSXV20..LHD199608-199710

W(15 INCHES DISC WHEEL)

sub44250-33212

main44250-33212iSXV20..LHD199710-199908

main44250-33221iSXV20..RHD199608-199710

W(15 INCHES DISC WHEEL)

sub44250-33222

main44250-33222iSXV20..RHD199710-199908

main44250-33230iSXV20..RHD..ATM199608-199710

W(14 INCHES DISC WHEEL)

sub44250-33231

main44250-33231iSXV20..RHD..ATM199710-199908

HONG KONG OR MIDDLE SOUTH AMERICA OR SINGAPORE SPEC

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iMCV20,SXV20199608

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCV20,SXV20199608

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iMCV20,SXV20199608

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

10 parts on this diagram · 4 diagrams in section
