STEERING WHEEL

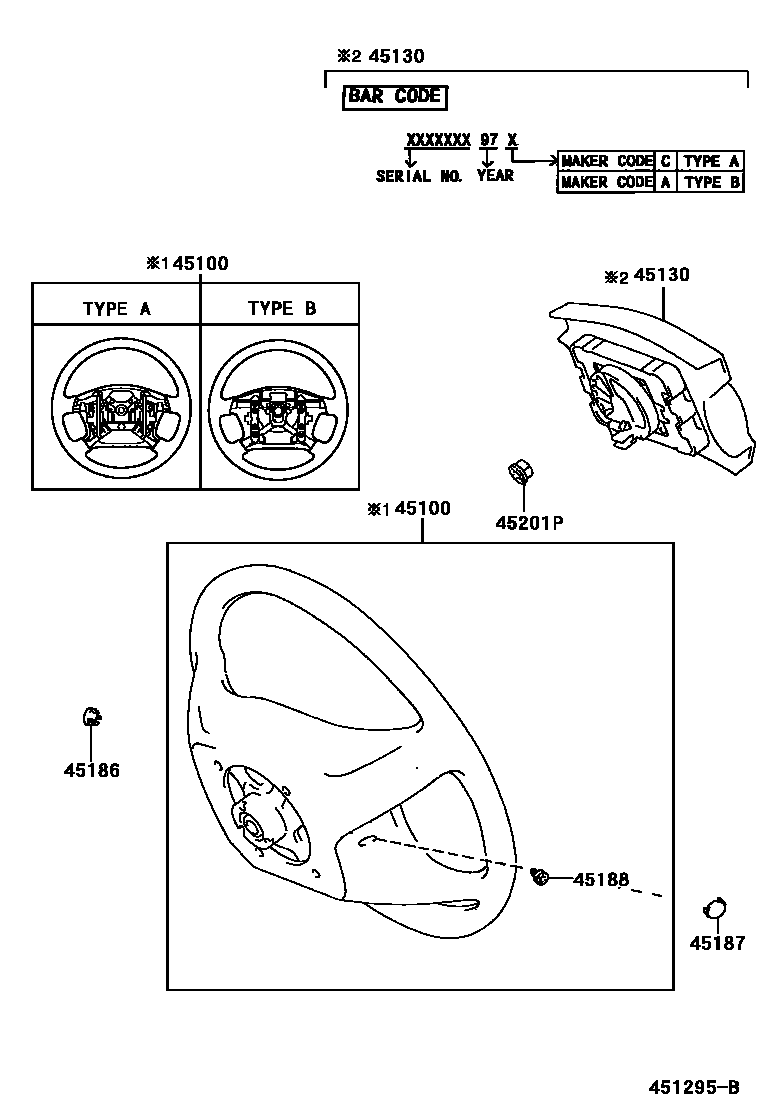

Parts diagram
45100WHEEL ASSY, STEERING
main45100-06150-C0i199608-199708
4-SPOKE,LEATHER,BLACK,TRIM1#,4#,6#
sub45100-06150
main45100-06340-C0i199708-199908
4-SPOKE,LEATHER,BLACK,TRIM1#,4#,6#,(L)
main45100-06341-B0i199908-200109
4-SPOKE,LEATHER,TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub45100-33262
main45100-06341-E0i199908-200109
4-SPOKE,LEATHER,TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-33262
main45100-06341-G0i199908-200109
4-SPOKE,LEATHER,TYPE A:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-33262
main45100-0W020-C0i199608-199708
4-SPOKE,LEATHER,TYPE A:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45100-0W020
main45100-0W070-C0i199708-199908
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
main45100-0W071-B0i199908-200109
4-SPOKE,LEATHER,TYPE C:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLUISH GRAY,TRIM1#
main45100-22750-B0i199908-200108
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub45100-22750
main45100-22750-C0i199610-199908
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#,6#
sub45100-22750
main45100-22750-E1i199908-200108
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4#
sub45100-22750
main45100-22750-G0i199908-200108
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,DK.SAGE,TRIM6#
sub45100-22750
main45100-33180-C0i199608-199610
4-SPOKE,URETHANE,BLACK,TRIM1#,4#,6#
sub45100-22750
main45100-33190-B0i199908-200108
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45100-33291
sub45100-33190
main45100-33190-C0i199608-199908
4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45100-33291
sub45100-33190
main45100-33190-E0i199908-200108
4-SPOKE,URETHANE,TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45100-33291
sub45100-33190
main45100-33260-C0i199708-199812
4-SPOKE,LEATHER,BLACK,TRIM1#,4#,6#
sub45100-33261
main45100-33261-C0i199812-199908
4-SPOKE,LEATHER,BLACK,TRIM1#,4#,6#
sub45100-33262
main45100-33262-E0i199908-200109
4-SPOKE,LEATHER,OAK,TRIM4#
sub45100-06341
sub45100-33262
main45100-33262-G0i199908-200109
4-SPOKE,LEATHER,DK.SAGE,TRIM6#
sub45100-06341
sub45100-33262
main45100-33270-C0i199708-199812
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45100-33271
main45100-33271-C0i199812-199908
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45100-33272
main45100-33272-E0i199908-200109
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),OAK,TRIM4#
sub45100-0W071
sub45100-33272
main45100-33272-G0i199908-200109
4-SPOKE,LEATHER,TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45100-0W071
sub45100-33272
main45100-33281-G0i199908-200108
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80),DK.SAGE,TRIM6#
main45100-33290-C0i199708-199908
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#,6#
sub45100-33291
main45100-33291-G0i199908-200108
4-SPOKE,URETHANE,TYPE B:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45100-33190
45130BUTTON ASSY, HORN
main45130-06030-C0i199608-199708
W(LEATHER STEERING WHEEL),BLACK,TRIM1#,4#,6#
sub45130-06030
main45130-06050-C0i199708-199908
BLACK,TRIM1#,4#,6#,(L)
main45130-06070-B0i199908
TYPE A:REFER TO ILLUSTRATION, W(LEATHER STEERING WHEEL);TYPE C:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLUISH GRAY,TRIM1#
main45130-06070-E0i199908
TYPE A:REFER TO ILLUSTRATION, W(LEATHER STEERING WHEEL);TYPE C:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),OAK,TRIM4#
main45130-06070-G0i199908
TYPE A:REFER TO ILLUSTRATION, W(LEATHER STEERING WHEEL);TYPE C:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),DK.SAGE,TRIM6#
main45130-33190-C0i199608-199708
W(URETHANE STEERING WHEEL),BLACK,TRIM1#,4#,6#
sub45130-33190
main45130-33230-C0i199708-199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL),BLACK,TRIM1#,4#,6#
main45130-33240-C0i199708-199908
BLACK,TRIM1#,4#,6#
sub45130-33240
main45130-33260-B0i199908
TYPE B:REFER TO ILLUSTRATION, W(LEATHER STEERING WHEEL);TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45130-33260
main45130-33260-E0i199908
TYPE B:REFER TO ILLUSTRATION, W(LEATHER STEERING WHEEL);TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),OAK,TRIM4#
sub45130-33260
main45130-33260-G0i199908
TYPE B:REFER TO ILLUSTRATION, W(LEATHER STEERING WHEEL);TYPE D:REFER TO ILLUSTRATION, W(ELECTRICAL TYPE *80 & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45130-33260
main45130-33260-G0i199908
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL);TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45130-33260
main45130-33280-B0i199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL);TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45130-33280
main45130-33280-E0i199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL);TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45130-33280
main45130-33280-G0i199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL);TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45130-33280
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-44010-B0i199908
BLUISH GRAY,TRIM1#
sub45186-44010
main45186-44010-C0i199610-199908
BLACK,TRIM1#,4#,6#
sub45186-44010
main45186-44010-E0i199908
OAK,TRIM4#
sub45186-44010
main45186-44010-G0i199908
DK.SAGE,TRIM6#
sub45186-44010
45187COVER, STEERING WHEEL, LOWER NO.3
main45186-44010-B0i199908-200109
BLUISH GRAY,TRIM1#
sub45186-44010
main45186-44010-C0i199608-199908
BLACK,TRIM1#,4#,6#
sub45186-44010
main45186-44010-E0i199908-200109
OAK,TRIM4#
sub45186-44010
main45186-44010-G0i199908-200109
DK.SAGE,TRIM6#
sub45186-44010
main45187-06030-B0i199908-200109
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
main45187-06030-C0i199708-199908
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLACK,TRIM1#,4#,6#,YELLOW PAINTED
main45187-06030-C0i199608-199708
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
main45187-06030-E0i199908-200109
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
main45187-06030-G0i199908-200109
TYPE C:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
main45187-33020-B0i199910-200109
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
main45187-33020-B0i199908-200108
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
main45187-33020-C0i199608-199908
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45187-33020
main45187-33020-E0i199908-200108
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45187-33020
main45187-33020-G0i199908-200108
TYPE A:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45187-33020
main45187-33030-B0i199908-199910
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
sub45187-33030
main45187-33030-B0i199908-199910
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLUISH GRAY,TRIM1#
sub45187-33020
sub45187-33030
main45187-33030-C0i199708-199908
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45187-33020
sub45187-33030
main45187-33030-C0i199708-199908
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),BLACK,TRIM1#,4#,6#
sub45187-33020
sub45187-33030
main45187-33030-E0i199908-200109
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45187-33020
sub45187-33030
main45187-33030-E0i199908-200108
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),OAK,TRIM4#
sub45187-33020
sub45187-33030
main45187-33030-G0i199908-200109
TYPE D:REFER TO ILLUSTRATION,W(LEATHER STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45187-33020
sub45187-33030
main45187-33030-G0i199908-200108
TYPE B:REFER TO ILLUSTRATION,W(URETHANE STEERING WHEEL & CRUISE CONTROL),DK.SAGE,TRIM6#
sub45187-33020
sub45187-33030
45188SCREW, STEERING WHEEL PAD ATTACHING
main45188-06010i199705-199908
W(LEATHER STEERING WHEEL)
main90148-60007i199608
W(URETHANE STEERING WHEEL)
main90148-60011i199908
W(LEATHER STEERING WHEEL)
45201PNUT, STEERING WHEEL SET
main90179-12071i199608-199908

6 parts on this diagram · 7 diagrams in section
