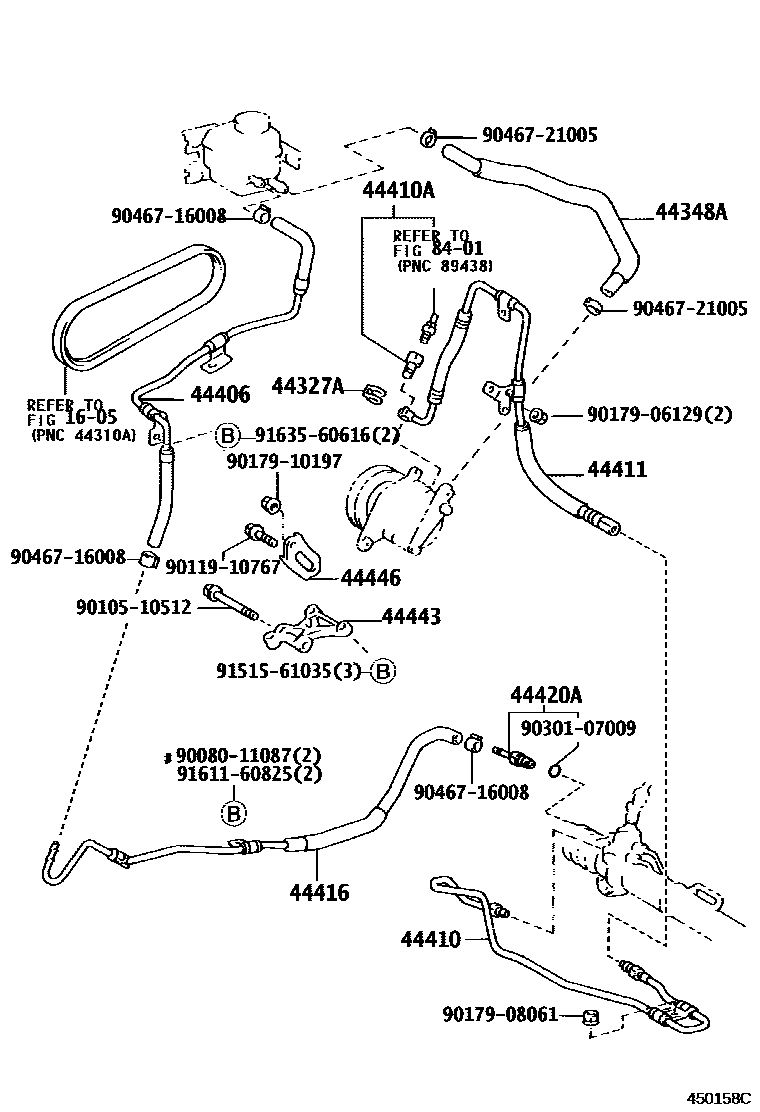

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV20,SXV20199608-199712

main44327-30030iMCV20,SXV20199712

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33120iSXV20..LHD199608

main44348-33130iMCV20199608

main44348-33140iSXV20..RHD199608

44406TUBE SUB-ASSY, RETURN

main44406-33060iMCV20,SXV20199608-199808

sub44406-33061

main44406-33061iMCV20,SXV20199808

44410TUBE ASSY, PRESSURE FEED

main44410-33110iSXV20..RHD199608

main44410-33120iSXV20..LHD199608

main44410-33130iMCV20..RHD199608

main44410-33140iMCV20..LHD199608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCV20,SXV20199608

44411HOSE, PRESSURE FEED

main44411-33060iMCV20..RHD199608

main44411-33070iMCV20..LHD199608

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33080iMCV20,SXV20..RHD199608

main44416-33090iMCV20,SXV20..LHD199608

44420ATUBE ASSY, RETURN

main44420-17010iMCV20,SXV20..RHD199608

44443BRACKET, PUMP

main44443-33020iSXV20199608

main44443-33040iMCV20199608-199708

sub44443-33041

main44443-33041iMCV20199708

44446STRUT, ADJUSTING

main44446-33010iMCV20199608

8401

9008011087

main90080-11087

9010510512

main90105-10512

9011910767

main90119-10767

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9030107009

main90301-07009

9046716008

main90467-16008

9046721005

main90467-21005

9151561035

main91515-61035

9161160825

main91611-60825

9163560616

main91635-60616

24 parts on this diagram · 4 diagrams in section
