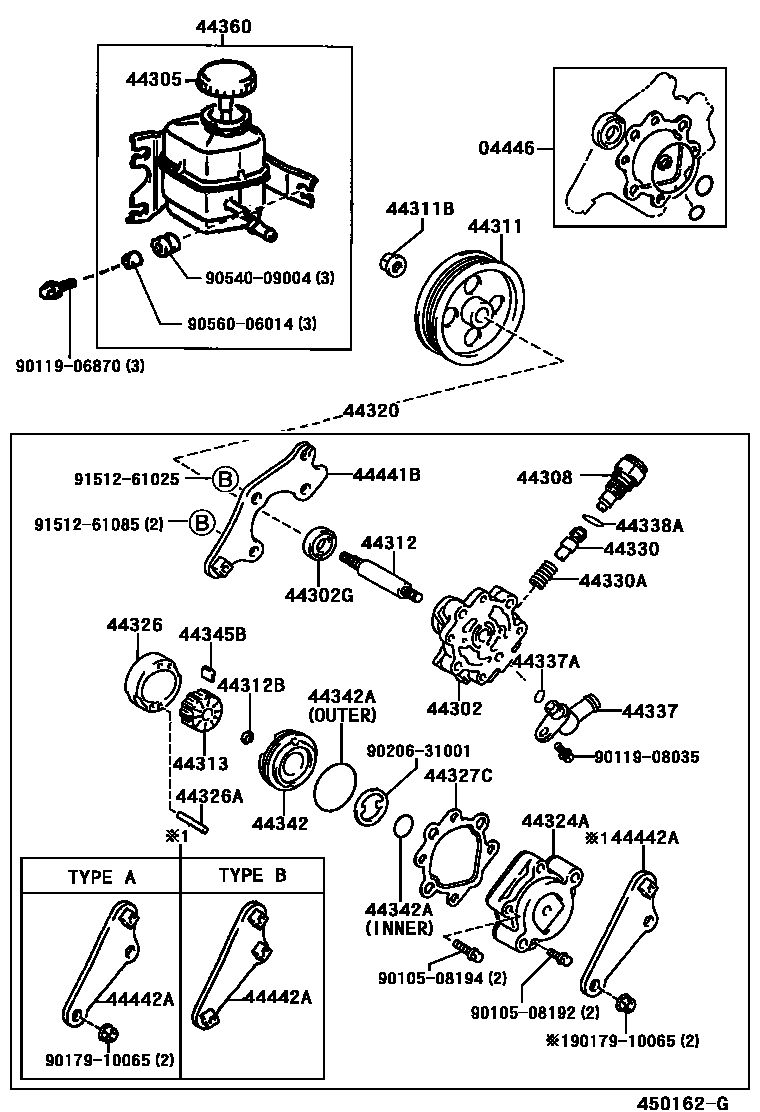

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
(L)
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
(L)
(J)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
(L)
(J)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-32040
44311BNUT(FOR VANE PUMP PULLEY)
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
(L)
(J)
44313ROTOR, VANE PUMP
NO MARK,(L)
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 4,(L)
NO MARK,(J)
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
MARK 4,(J)
44324AHOUSING, PUMP, REAR
(L)
(J)
44326RING, CAM(FOR VANE PUMP)
NO MARK,(L)
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 4,(L)
NO MARK,(J)
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
MARK 4,(J)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=23.3,OD=4.0,(L)
L=23.3,OD=4.0
L=23.3,OD=4.0,(J)
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK D,(L)
MARK E,(L)
MARK F,(L)
MARK A,(J)
MARK A
MARK B
MARK B,(J)
MARK C,(J)
MARK C
MARK D
MARK D,(J)
MARK E,(J)
MARK E
MARK F
MARK F,(J)
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
(L)
(J)
44337UNION, POWER STEERING SUCTION PORT
(L)
(J)
44337ARING, O(FOR POWER STEERING SUCTION PORT)
(L)
(J)
44338ARING, O(FOR PRESSURE PORT UNION)
(L)
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
INNER(L)
OUTER(L)
INNER(J)
OUTER(J)
44345BPLATE, VANE PUMP
L=15.000
L=15.000,(L)
L=14.008
L=14.008,(L)
L=14.006
L=14.006,(L)
L=14.004
L=14.004,(L)
L=14.002,(L)
L=14.002
L=15.000
L=15.000,(J)
L=14.998
L=14.998,(J)
L=14.996
L=14.996,(J)
L=14.994,(J)
L=14.994
L=14.992
L=14.992,(J)
44360RESERVOIR ASSY, VANE PUMP OIL
44441BBRACKET, PUMP, FRONT
TYPE A:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(J)
44442ABRACKET, VANE PUMP, REAR
(L)
(J)
TYPE B:REFER TO ILLUSTRATION,(J)
TYPE B:REFER TO ILLUSTRATION
9010508192
main90105-08192
9010508194
main90105-08194
9011906870
main90119-06870
9011908035
main90119-08035
9017910065
main90179-10065
9020631001
main90206-31001
9054009004
main90540-09004
9056006014
main90560-06014
9151261025
main91512-61025
9151261085
main91512-61085
36 parts on this diagram · 2 diagrams in section
