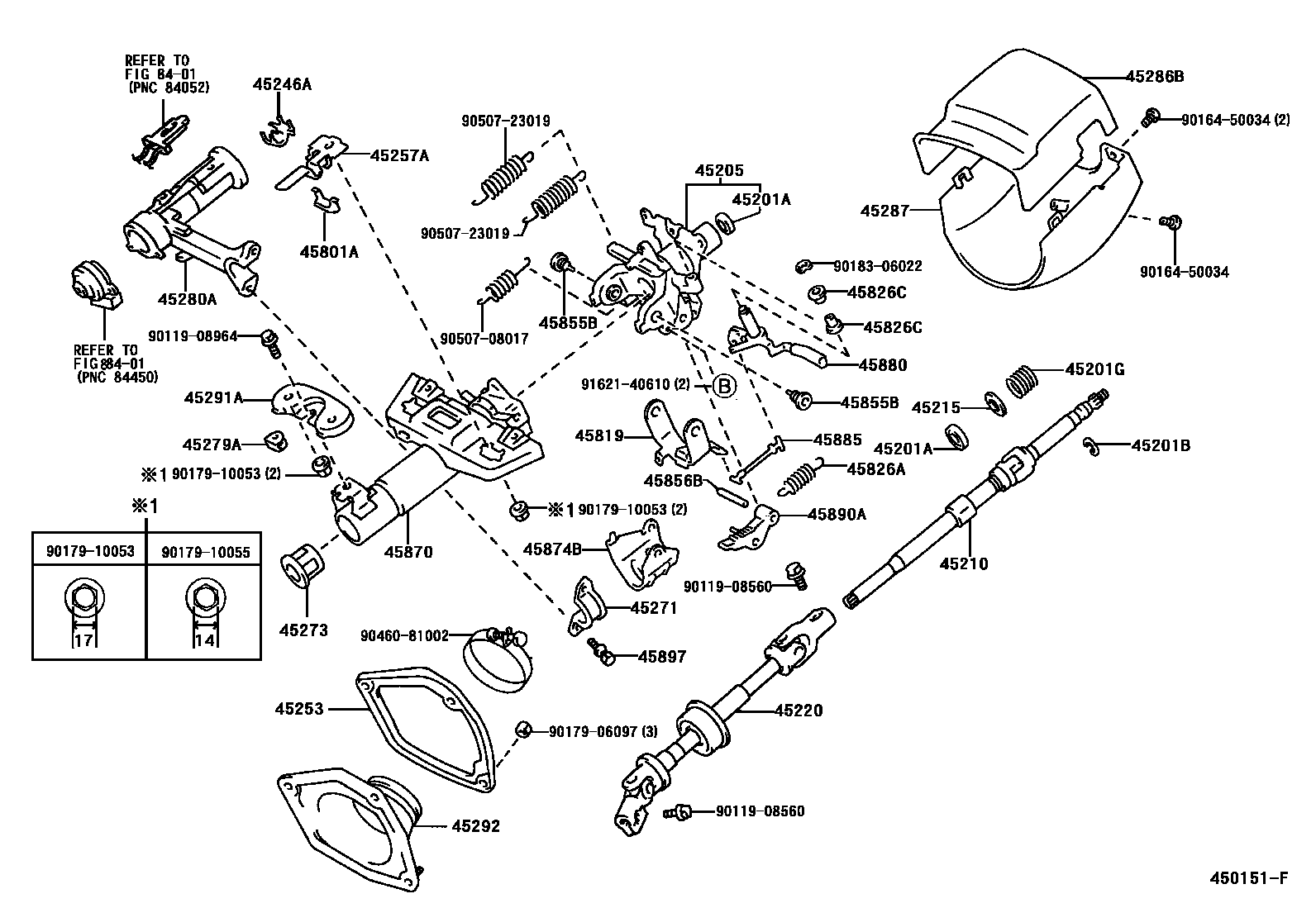

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45210SHAFT ASSY, STEERING MAIN
TYPE B:REFER TO ILLUSTRATION
45215COLLAR, MAIN SHAFT BEARING THRUST
45220SHAFT ASSY, STEERING INTERMEDIATE
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,4#,6#
OAK,TRIM4#
DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,4#,6#
OAK,TRIM4#
DK.SAGE,TRIM6#
45287COVER, STEERING COLUMN, LWR
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,4#,6#
OAK,TRIM4#
DK.SAGE,TRIM6#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#,4#,6#
OAK,TRIM4#
DK.SAGE,TRIM6#
45291ASUPPORT, STEERING COLUMN TUBE
45292SEAL, MAIN SHAFT LOWER DUST
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BSHAFT, T1LT STEERING, NO.1
45856BSHAFT, T1LT STEERING, NO.2
WHITE
YELLOW
BLACK
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9011908964
main90119-08964
9016450034
main90164-50034
9017906097
main90179-06097
9017910053
main90179-10053
9017910055
main90179-10055
9018306022
main90183-06022
9046081002
main90460-81002
9050708017
main90507-08017
9050723019
main90507-23019
9162140610
main91621-40610
42 parts on this diagram · 2 diagrams in section
