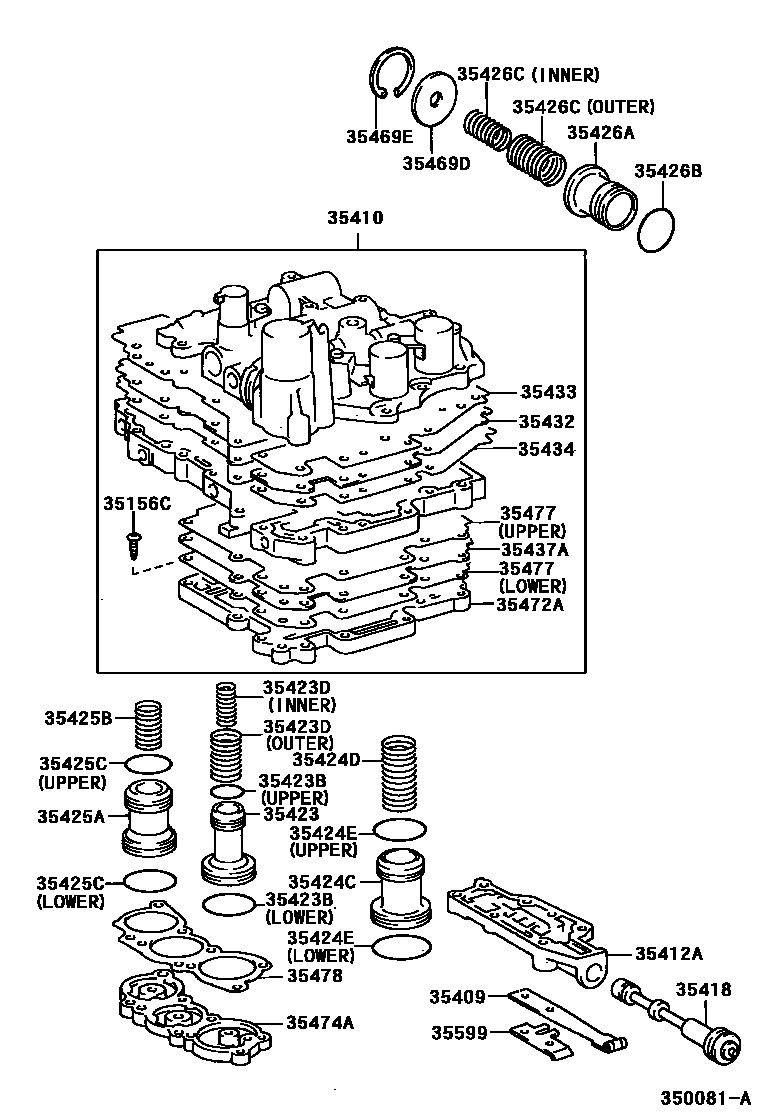

VALVE BODY & OIL STRAINER (ATM)
35156CSCREW(FOR TRANSMISSION CASE NO.2 PLATE)
35409SPRING SUB-ASSY, MANUAL DETENT
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
LOWER
LOWER
35423DSPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
INNER
OUTER
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
LOWER
UPPER
LOWER
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
LOWER
LOWER
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
OUTER
INNER
OUTER
INNER
35432PLATE, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35437APLATE, UPPER VALVE BODY COVER
35469DSPACER (FOR C-0 ACCUMULATOR PISTON)
35469ERING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)
35472ACOVER, LOWER VALVE BODY
35474ACOVER, ACCUMULATOR
35477GASKET, VALVE BODY COVER
UPPER
LOWER
28 parts on this diagram · 9 diagrams in section
