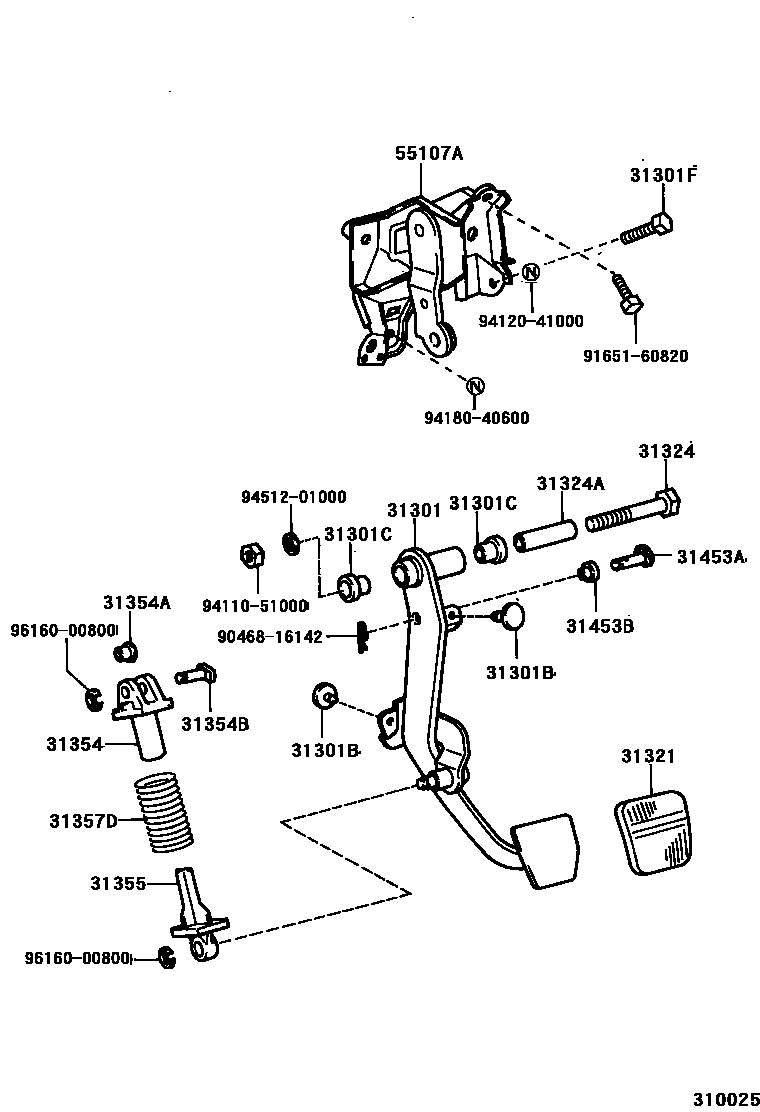

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-33010iSXV20..LHD..MTM199608

main31301-33020iSXV20..RHD..MTM199608

sub31301-33030

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iSXV20..MTM199608

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iSXV20..MTM199608

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iSXV20..MTM199608

31321PAD, CLUTCH PEDAL

main31321-14020iSXV20..MTM199608

31324SHAFT, CLUTCH PEDAL

main90101-10273iSXV20..MTM199608

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iSXV20..MTM199608

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-33010iSXV20..MTM199608

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iSXV20..MTM199608

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iSXV20..MTM199608

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iSXV20..MTM199608

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-35018iSXV20..MTM199608

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iSXV20..MTM199608

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iSXV20..MTM199608

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-33010iSXV20..LHD..MTM199608

main55107-33020iSXV20..RHD..MTM199608

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9412041000

main94120-41000

9418040600

main94180-40600

9451201000

main94512-01000

9616000800

main96160-00800

22 parts on this diagram · 2 diagrams in section
