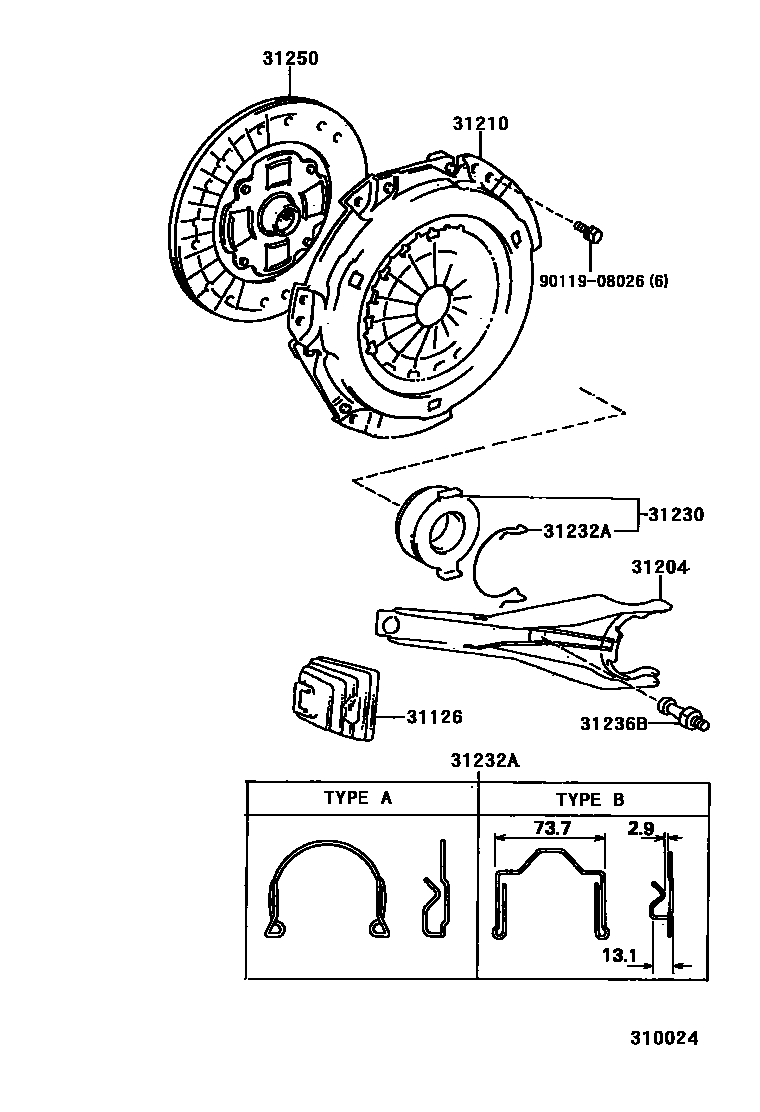

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iSXV20..MTM199608

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iSXV20..MTM199608

31210COVER ASSY, CLUTCH

main31210-32130iSXV20..MTM199608

sub31210-33030

31230BEARING ASSY, CLUTCH RELEASE

main31230-32060iSXV20..MTM199608

31232ACLIP, RELEASE BEARING HUB

main31232-20020iSXV20..MTM199608

TYPE A:REFER TO ILLUSTRATION

main31232-32050iSXV20..MTM199608

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-32010iSXV20..MTM199608

31250DISC ASSY, CLUTCH

main31250-20250iSXV20..MTM199608-199812

sub31250-20251

main31250-20251iSXV20..MTM199812

sub31250-20252

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
