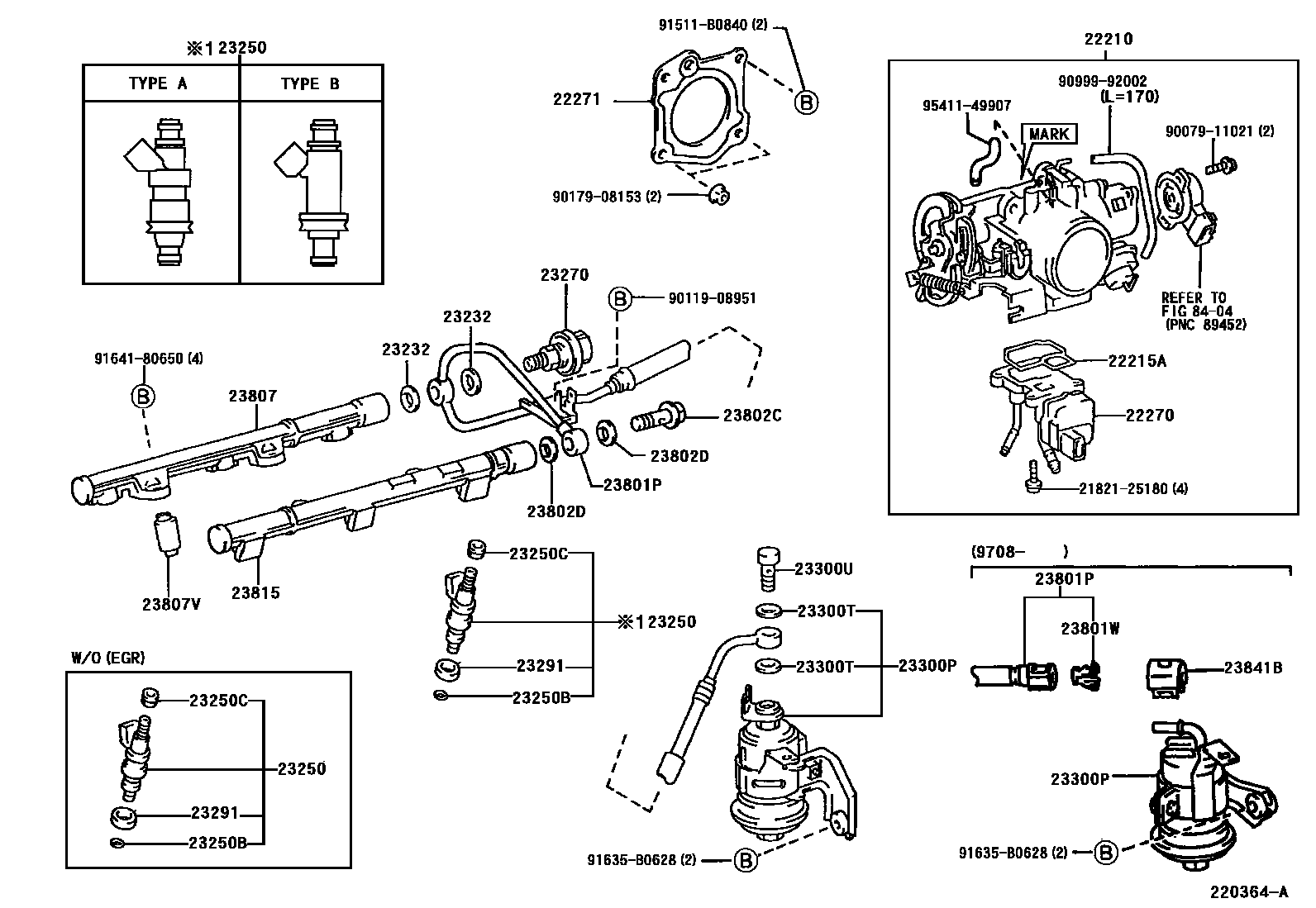

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22210BODY ASSY, THROTTLE

main22210-20061i1MZFE..MCV20199908

MARK 20061

main22210-20070i1MZFE..MCV20199608

MARK 20070

main22210-20080i1MZFE..MCV20..LHD199608

W/O(EGR)

main22210-7A350i5SFE..SXV20..ATM199608

MARK 7A350

main22210-7A590i5SFE..SXV20..MTM199608-200008

main22210-7A590i5SFE..SXV20..LHD..MTM200008

MARK 7A590

main22210-7A850i5SFE..SXV20..ATM200008

MARK 7A850

main22210-7A860i5SFE..SXV20..MTM200008

MARK 7A860

22215GASKET, THROTTLE BODY COVER

main22215-20010i5SFE..SXV20200008

MARK OF THROTTLE BODY=7A850 OR 7A860

main22215-74400i5SFE..SXV20199608-200008

main22215-74400i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM200008

MARK OF THROTTLE BODY=7A350 OR 7A590

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-20010i1MZFE..MCV20199608

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-20020i1MZFE..MCV20199608

main22270-20030i1MZFE..MCV20..LHD199608-199704

W/O(EGR)

sub22270-20031

main22270-20031i1MZFE..MCV20..LHD199704

W/O(EGR)

main22270-74340i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM200008

MARK OF THROTTLE BODY=7A350 OR 7A590

main22270-74340i5SFE..SXV20199608-200008

main22270-74400i5SFE..SXV20200008

MARK OF THROTTLE BODY=7A850 OR 7A860

22271GASKET, THROTTLE BODY

main22271-20010i1MZFE..MCV20199608

main22271-74070i5SFE..SXV20199608

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i1MZFE..MCV20199608

main23279-74010i5SFE..SXV20199608

23250INJECTOR ASSY, FUEL

main23209-03010i5SFE..SXV20200008

MARK 23209-03010,(L)

main23209-11070i1MZFE..MCV20..LHD199608

W/O(EGR)

main23209-20010i1MZFE..MCV20199608

TYPE A:REFER TO ILLUSTRATION

main23209-20020i1MZFE..MCV20199908

TYPE B:REFER TO ILLUSTRATION

main23209-74100i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM200008

MARK 23209-74100

main23209-74100i5SFE..SXV20199608-200008

main23209-74250i5SFE..SXV20200008

MARK 23209-74250,(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1MZFE..MCV20..LHD199608-199812

W/O(EGR)

main90301-07001i5SFE..SXV20200008

MARK OF FUEL INJECTOR=23209-03010 OR 23209-74250

main90301-07024i1MZFE..MCV20..LHD199812

W/O(EGR)

main90301-07024i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM200008

MARK OF FUEL INJECTOR=23209-74100

main90301-07024i5SFE..SXV20199812-200008

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1MZFE..MCV20199608

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i5SFE..SXV20199608

sub23207-20011

main23270-62010i1MZFE..MCV20199608

sub23270-62011

23291INSULATOR, INJECTOR VIBRATION

main23291-20010i1MZFE..MCV20199908

TYPE B:REFER TO ILLUSTRATION

main23291-41010i5SFE..SXV20199608

W/O(EGR)

main23291-62010i1MZFE..MCV20199608

TYPE A:REFER TO ILLUSTRATION

23300PFILTER, FUEL(FOR EFI)

main23300-20040i1MZFE..MCV20199708

MARK 31

main23300-20070i1MZFE..MCV20199708

MARK 44

main23300-29055i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM199608

TYPE B:REFER TO ILLUSTRATION

main23300-29055i1MZFE..MCV20199608-199708

MARK 03

main23300-79545i1MZFE..MCV20199608-199708

MARK 02

main23300-79545i5SFE..SXV20199608

TYPE A:REFER TO ILLUSTRATION

23300TGASKET(FOR FUEL FILTER)

main90430-12026i5SFE..SXV20199608-199708

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i1MZFE..MCV20199608-199708

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-20030i1MZFE..MCV20199608-199708

main23801-20041i1MZFE..MCV20199708

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i1MZFE..MCV20199708

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12015i1MZFE..MCV20199608

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-12026i1MZFE..MCV20199608

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-20020i1MZFE..MCV20199608

sub23814-20021

main23814-74110i5SFE..SXV20199608

sub23814-74080

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020i1MZFE..MCV20199608

main90561-08053i5SFE..SXV20199608

23815PIPE, FUEL DELIVERY, NO.2

main23815-20020i1MZFE..MCV20199608

sub23815-20021

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-20020i1MZFE..MCV20199708

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911021

main90079-11021

9011908951

main90119-08951

9017908153

main90179-08153

9099992002

main90999-92002

91511B0840

main91511-B0840

91635B0628

main91635-B0628

9164180650

main91641-80650

9541149907

main95411-49907

32 parts on this diagram · 4 diagrams in section
