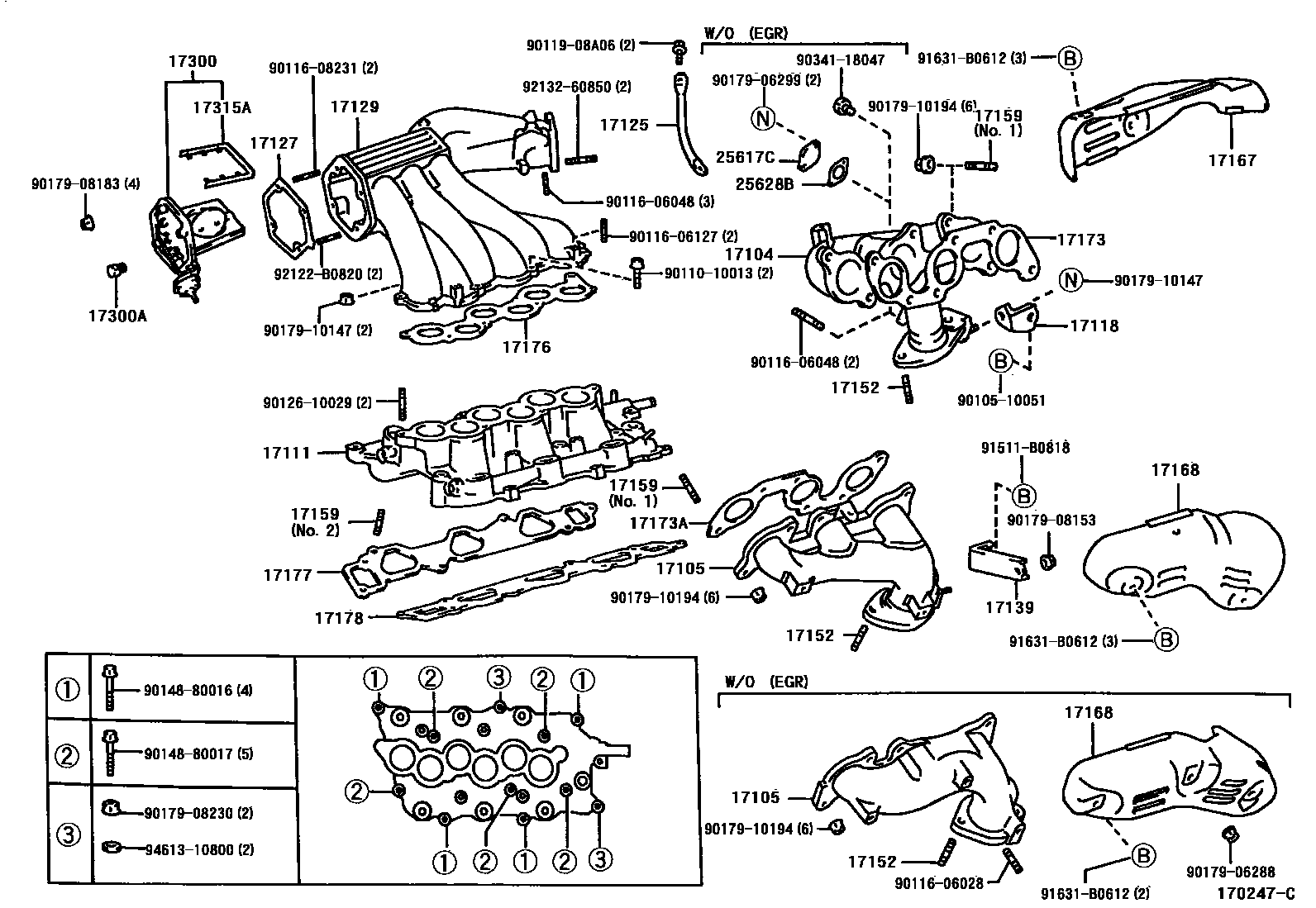

MANIFOLD

0001 1TYPE A 0002 1TYPE B 0003 1 0004 1TYPE A 0005 1TYPE B 0006 1W/O(EGR)

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-20010i1MZFE..MCV20199908

TYPE B:REFER TO ILLUSTRATION

main17141-20050i1MZFE..MCV20199608

TYPE A:REFER TO ILLUSTRATION

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17142-20030i1MZFE..MCV20..LHD199608

W/O(EGR)

main17142-20050i1MZFE..MCV20199608

17111MANIFOLD, INTAKE

main17101-20010i1MZFE..MCV20199608

main17101-20020i1MZFE..MCV20..LHD199608-200107

W/O(EGR)

sub17101-20021

main17101-20021i1MZFE..MCV20..LHD200107

W/O(EGR)

main17101-74310i5SFE..SXV20..RHD;5SFE..SXV20..LHD..MTM199608-199808

sub17101-74311

main17101-74311i5SFE..SXV20199808

17118STAY, MANIFOLD

main17118-20020i1MZFE..MCV20199608

main17118-74230i5SFE..SXV20..LHD..ATM199608

W/O(EGR),NO.2

main17118-74350i5SFE..SXV20..LHD..ATM199608

W/O(EGR),NO.1

main17118-74370i5SFE..SXV20199608

NO.1

main17118-74390i5SFE..SXV20199608

NO.2

17125STAY, SURGE TANK, NO.1

main17125-20010i1MZFE..MCV20199608

17127GASKET, SURGE TANK COVER

main17127-62030i1MZFE..MCV20199608

17129TANK, INTAKE AIR SURGE

main17109-20040i1MZFE..MCV20199908-200106

TYPE B:REFER TO ILLUSTRATION

sub17109-20090

main17109-20050i1MZFE..MCV20199608

TYPE A:REFER TO ILLUSTRATION

main17109-20060i1MZFE..MCV20..LHD199608

W/O(EGR)

main17109-20090i1MZFE..MCV20200106

TYPE B:REFER TO ILLUSTRATION

17139STAY, MANIFOLD, NO.2

main17139-20010i1MZFE..MCV20199608

TYPE A:REFER TO ILLUSTRATION

main17139-20020i1MZFE..MCV20199908

TYPE B:REFER TO ILLUSTRATION

main17139-74110i5SFE..SXV20..LHD..ATM199608

W/O(EGR)

main17139-74190i5SFE..SXV20199608

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i5SFE..SXV20199608

main90116-10149i1MZFE..MCV20199608-199908

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i5SFE..SXV20199608

NO.1

main90116-10169i1MZFE..MCV20199608-200107

NO.1

main90126-08013i1MZFE..MCV20199608

NO.2

main90126-10030i1MZFE..MCV20200107

NO.1

main92122-60822i5SFE..SXV20199608

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-20050i1MZFE..MCV20199608

main17167-74180i5SFE..SXV20..LHD..ATM199608

W/O(EGR)

main17167-74231i5SFE..SXV20200008

TYPE A:REFER TO ILLUSTRATION

main17167-74240i5SFE..SXV20199608-200008

main17167-74240i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM200008

TYPE B:REFER TO ILLUSTRATION

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-20020i1MZFE..MCV20..LHD199608

W/O(EGR)

main17168-20050i1MZFE..MCV20199608

main17168-74080i5SFE..SXV20..LHD..ATM199608

W/O(EGR)

main17168-74131i5SFE..SXV20200008

TYPE A:REFER TO ILLUSTRATION

main17168-74140i5SFE..SXV20199608-200008

main17168-74140i5SFE..SXV20..ATM;5SFE..SXV20..LHD..MTM200008

TYPE B:REFER TO ILLUSTRATION

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-20010i1MZFE..MCV20199608

main17173-74040i5SFE..SXV20199608

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-20010i1MZFE..MCV20199608

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-62030i1MZFE..MCV20199608

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-20010i1MZFE..MCV20199608-199710

sub17177-20020

main17177-20020i1MZFE..MCV20199710

main17177-74070i5SFE..SXV20199608

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-20010i1MZFE..MCV20199608-199710

sub17178-20020

main17178-20020i1MZFE..MCV20199710

17300VALVE ASSY, INTAKE AIR CONTROL

main17300-20020i1MZFE..MCV20199608

17300APLUG, W/HEAD TAPER SCREW(FOR AIR CONTROL VALVE)

main90345-51006i1MZFE..MCV20199608

17315AGASKET, INTAKE AIR CONTROL VALVE

main17315-62020i1MZFE..MCV20199608

25617CPLATE, EGR HOLE COVER

main25617-20010i1MZFE..MCV20..LHD199608

25628BGASKET, EGR INLET

main25628-20010i1MZFE..MCV20..LHD199608

9010510051

main90105-10051

9011010013

main90110-10013

9011606028

main90116-06028

9011606048

main90116-06048

9011606127

main90116-06127

9011608231

main90116-08231

9011908A06

main90119-08A06

9012610029

main90126-10029

9014880016

main90148-80016

9014880017

main90148-80017

9017906288

main90179-06288

9017906299

main90179-06299

9017908153

main90179-08153

9017908183

main90179-08183

9017908230

main90179-08230

9017910147

main90179-10147

9017910194

main90179-10194

9034118047

main90341-18047

91511B0818

main91511-B0818

91631B0612

main91631-B0612

92122B0820

main92122-B0820

9213260850

main92132-60850

9461310800

main94613-10800

45 parts on this diagram · 6 diagrams in section
