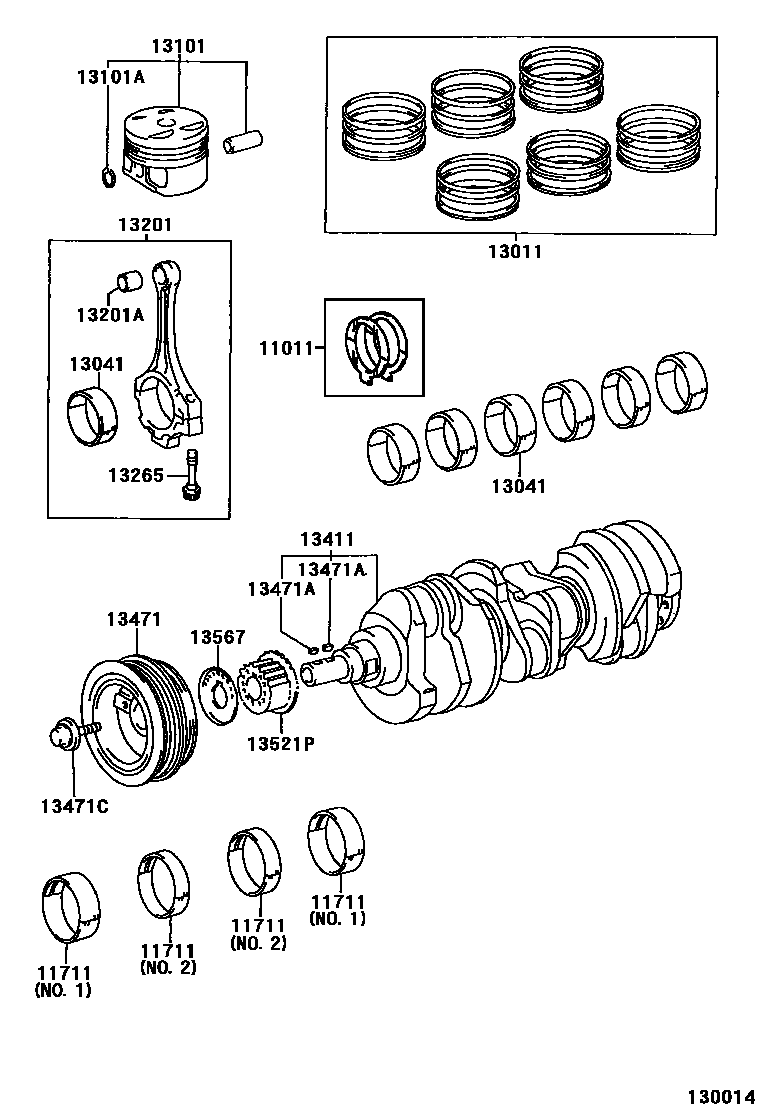

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
STD,W/O(EGR)
STD,W/O(EGR)
STD
O/S 0.50,W/O(EGR)
O/S 0.50
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD,RH
STD,W/O(EGR),MARK 1
STD,W/O(EGR),MARK 2
STD,W/O(EGR),MARK 3
STD,BRAZIL OR CHILE OR CHINA OR LATIN AMERICA(UNLEADED) OR SINGAPORE OR VENEZUELASPEC,MARK 1
STD,MARK 1
STD,BRAZIL OR CHILE OR CHINA OR LATIN AMERICA(UNLEADED) OR SINGAPORE OR VENEZUELASPEC,MARK 2
STD,MARK 2
STD,BRAZIL OR CHILE OR CHINA OR LATIN AMERICA(UNLEADED) OR SINGAPORE OR VENEZUELASPEC,MARK 3
STD,MARK 3
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50,W/O(EGR)
O/S 0.50
O/S 0.50,BRAZIL OR CHILE OR CHINA OR LATIN AMERICA(UNLEADED) OR SINGAPORE OR VENEZUELA SPEC
O/S 0.50
STD,LH
13201ABUSH(FOR CONNECTING ROD SMALL END)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
(L)
(J)
13567GUIDE, TIMING BELT, NO.2
15 parts on this diagram · 3 diagrams in section
