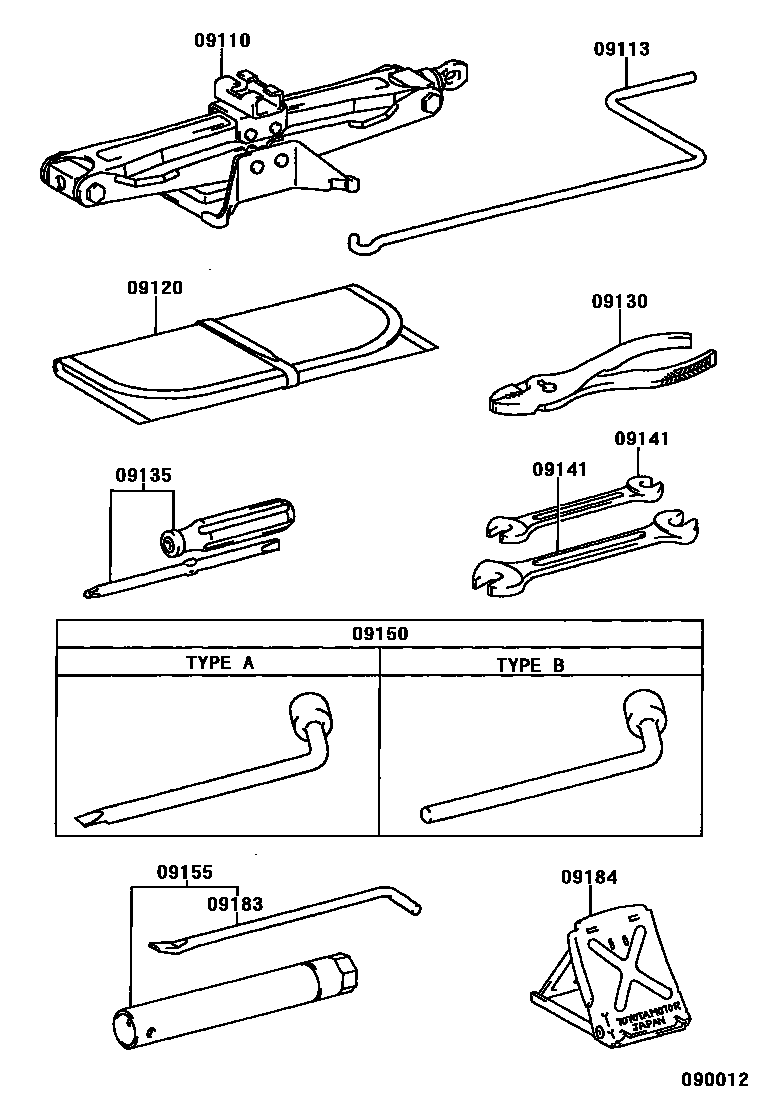

STANDARD TOOL

09110JACK ASSY

main09111-0W041iMCV20,SXV20199805

sub09111-02090

main09111-22060iMCV20,SXV20199608-199805

09113HANDLE, JACK

main09113-33010iMCV20,SXV20199608

09120BAG, TOOL

main09120-16030iMCV20,SXV20199608

09130PLIERS

main99913-11500iMCV20,SXV20199608

09135DRIVER, SCREW

main99915-10700iMCV20,SXV20199608

09141SPANNER

main99914-10810iMCV20,SXV20199608

8 X 10

main99914-11214iMCV20,SXV20199608

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iMCV20..LHD199608

TYPE B:REFER TO ILLUSTRATION

main09150-40010iMCV20,SXV20199608

TYPE A:REFER TO ILLUSTRATION

09155WRENCH, SPARK PLUG

main09155-74020iMCV20..LHD199608

09183WRENCH, WHEEL CAP

main09183-00010iMCV20..LHD199608

09184STOPPER, WHEEL

main09184-00010iMCV20,SXV20199608

10 parts on this diagram · 1 diagram in section
