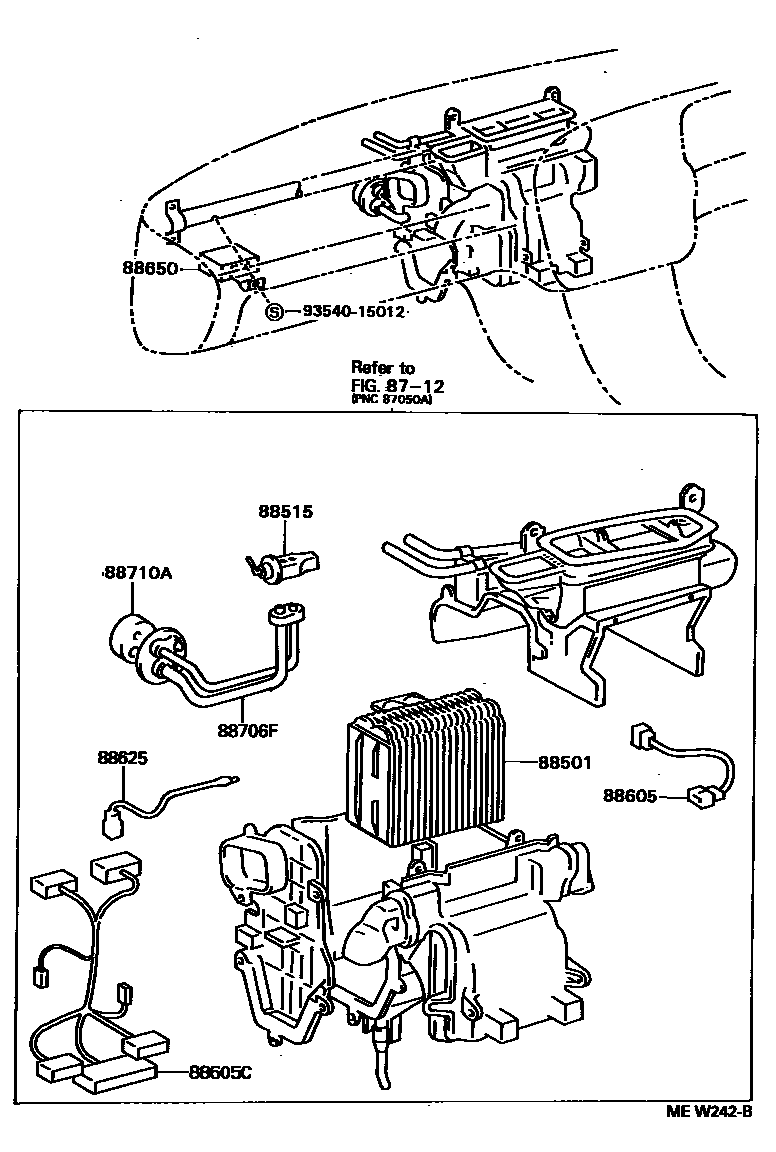

HEATING & AIR CONDITIONING - COOLER UNIT
8712
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
W(AIR CONDITIONER)
88515VALVE, COOLER EXPANSION
SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT OR NORWAY SPEC & MAKER OPT,*NDUSA
sub88515-33010
SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT OR NORWAY SPEC & MAKER OPT,*ND
sub88515-33010
sub88515-22240
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2
88625THERMISTOR, COOLER, NO.1
88650AMPLIFIER ASSY, COOLER STABILIZER
MAKER OPT
DEALER OPT,*ND
DEALER OPT,NIPPONDENSO
88706FTUBE SUB-ASSY, LIQUID, F
MANUAL AIR CONDITIONER
MANUAL AIR CONDITIONER
88710ATUBE ASSY, AIR CONDITIONER
9354015012
main93540-15012
10 parts on this diagram · 5 diagrams in section
