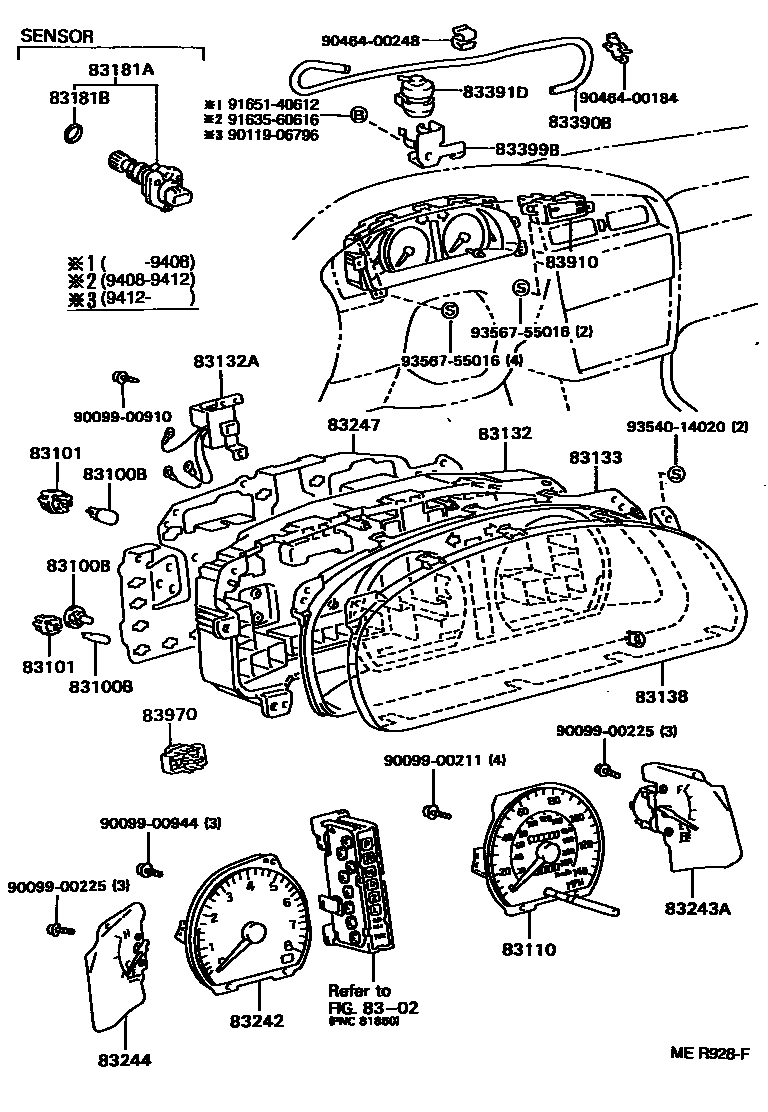

METER
8302
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET)
12V3.4W W(GREEN CAP)
14V 2.0W,W/O SOCKET
14V 3.78W
14V 2.0W
12V 1.4W
14V 3.0W
12V 1.2W W/O SOCKET
83101SOCKET SUB-ASSY, COMBINATION METER BULB
14V 3.78W BULB
OD=11.3 BLACK
OD=12.2 BLUE,OD-12.2 BLUE
83110SPEEDOMETER ASSY
NEW ZEALAND SPEC OR KM/H
NEW ZEALAND SPEC OR KM/H
KM/H
KM/H
83132CASE, COMBINATION METER
83132ACASE, METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83181ASENSOR, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83390BHOSE, VACUUM(FOR ECONOMETER)
L=950
83391DSWITCH, VACUUM
83399BBRACKET, VACUUM SWITCH
83910CLOCK ASSY
BORG
BORG
JECO
83970BUZZER ASSY, REVERSE WARNING
9009900211
main90099-00211
9009900225
main90099-00225
9009900910
main90099-00910
9009900944
main90099-00944
9011906796
main90119-06796
9046400184
main90464-00184
9046400248
main90464-00248
9163560616
main91635-60616
9165140612
main91651-40612
9354014020
main93540-14020
9356755016
main93567-55016
30 parts on this diagram · 3 diagrams in section
