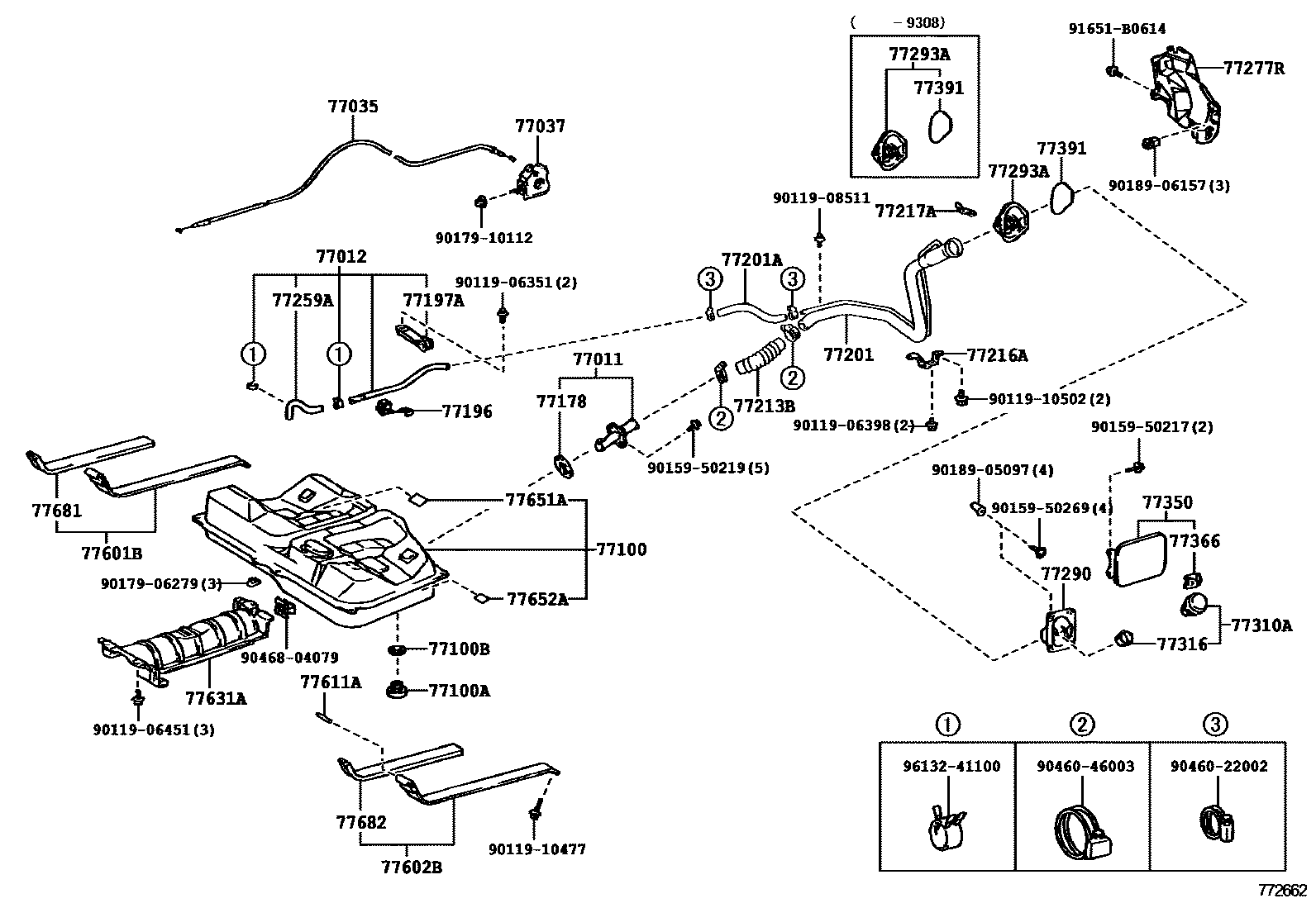

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100APLUG(FOR FUEL TANK)
CHILE SPEC
77100BGASKET(FOR FUEL TANK)
CHILE SPEC
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=385
77213BHOSE, FUEL TANK TO FILLER PIPE
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77259AHOSE, FUEL(FOR BREATHER TUBE)
77277RPROTECTOR, FUEL TANK FILLER PIPE
(L)
(J)
77290SHIELD ASSY, FUEL TANK FILLER PIPE
(L)
(J)
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77310ACAP ASSY, FUEL TANK
sub77310-12140
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
9011906351
main90119-06351
9011906398
main90119-06398
9011906451
main90119-06451
9011908511
main90119-08511
9011910477
main90119-10477
9011910502
main90119-10502
9015950217
main90159-50217
9015950219
main90159-50219
9015950269
main90159-50269
9017906279
main90179-06279
9017910112
main90179-10112
9018905097
main90189-05097
9018906157
main90189-06157
9046022002
main90460-22002
9046046003
main90460-46003
9046804079
main90468-04079
91651B0614
main91651-B0614
9613241100
main96132-41100
50 parts on this diagram · 2 diagrams in section
