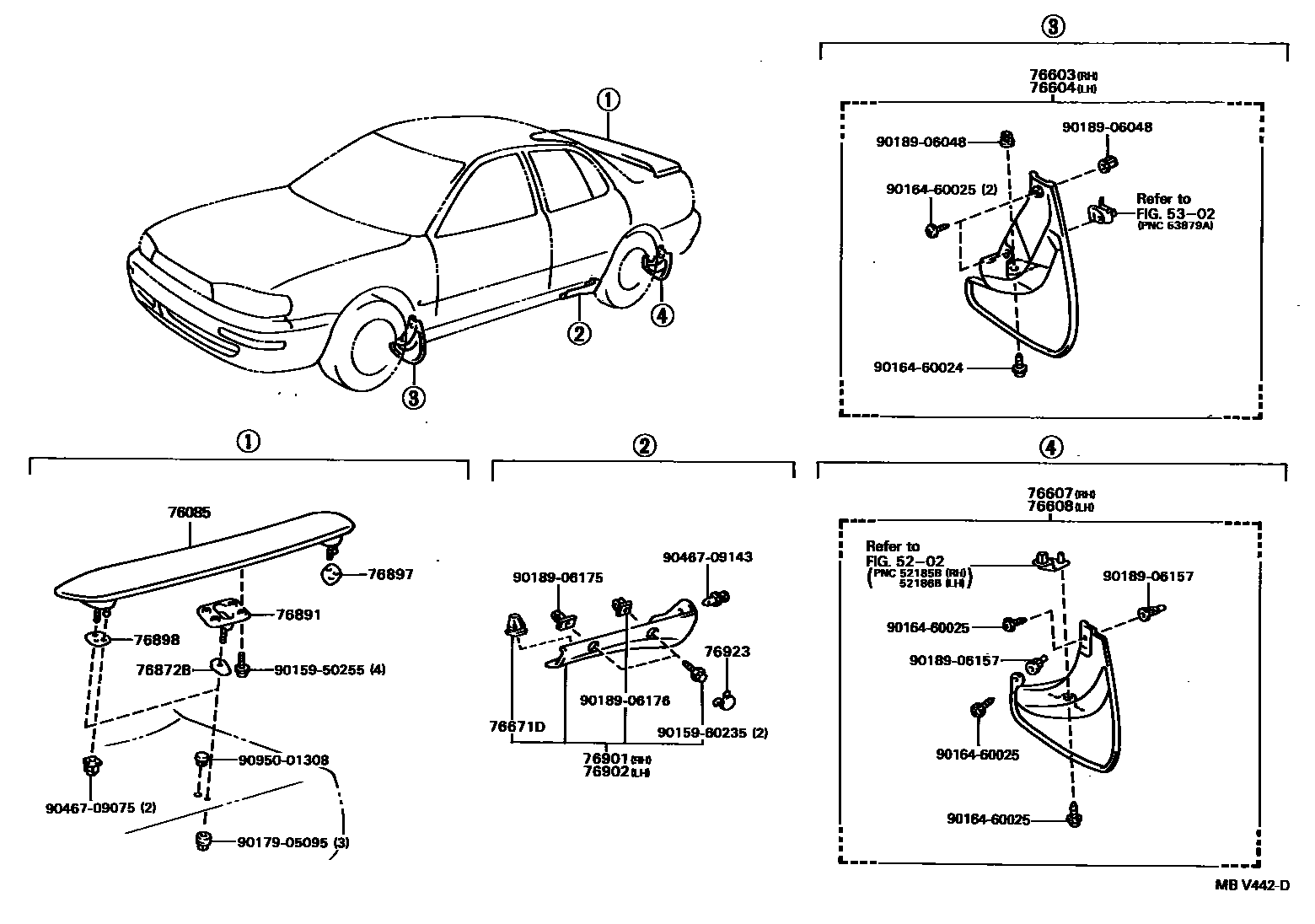

MUDGUARD & SPOILER
5202
5302
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76671DCLIP, SIDE MUDGUARD
76872BPROTECTOR, REAR SPOILER, CENTER
76891SPOILER, REAR NO.1
3J9
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76923RETAINER, SIDE MUDGUARD
9015950255
main90159-50255
9015960235
main90159-60235
9016460024
main90164-60024
9016460025
main90164-60025
9017905095
main90179-05095
9018906048
main90189-06048
9018906157
main90189-06157
9018906175
main90189-06175
9018906176
main90189-06176
9046709075
main90467-09075
9046709143
main90467-09143
9095001308
main90950-01308
27 parts on this diagram · 1 diagram in section
