REAR DOOR WINDOW REGULATOR & HINGE

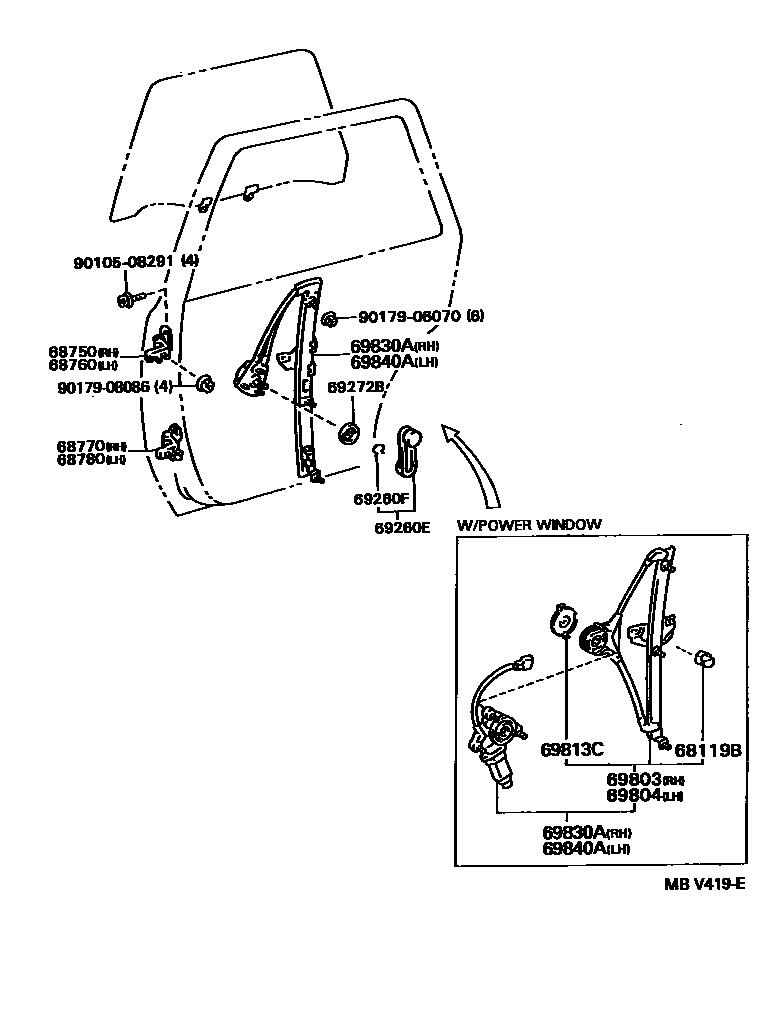

Parts diagram
68119BCUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.2
main69888-33011i199106-199608
68750HINGE ASSY, REAR DOOR, UPPER RH
main68750-32041i199106-199608
68760HINGE ASSY, REAR DOOR, UPPER LH
main68760-32041i199106-199608
68770HINGE ASSY, REAR DOOR, LOWER RH
main68770-32041i199106-199608
68780HINGE ASSY, REAR DOOR, LOWER LH
main68780-32041i199106-199608
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
main69260-14030-09i199106-199308
DARK BLUE,TRIM8#
sub69260-14030
main69260-14030-50i199106-199203
MEDIUM GRAY,TRIM1#
sub69260-14030
main69260-14030-52i199106-199205
TAUPE,TRIM9#
sub69260-14030
main69260-14030-B0i199203-199608
MEDIUM GRAY,TRIM1#
sub69260-14030
main69260-14030-E0i199308-199608
OAK,TRIM4#
sub69260-14030
main69260-14030-K0i199205-199608
TAUPE,TRIM9#
sub69260-14030
69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
main90520-01002i199106-199608
sub90520-01274
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
main69285-22010i199508-199608
main69285-22010-08i199308-199508
NATURAL WHITE,TRIM1#,4#,9#
sub69285-22010
main69285-22010-08i199106-199308
NATURAL WHITE,TRIM1#,8#,9#
sub69285-22010
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-32050i199106-199608
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-32050i199106-199608
69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE
main69813-32010i199106-199408
main69813-32040i199408-199608
RH
main69814-32010i199408-199608
LH
69830AREGULATOR ASSY, REAR DOOR WINDOW, RH
main69830-32080i199106-199608
main69830-32090i199106-199608
W(*PW)
main69830-32090i199106-199608
69840AREGULATOR ASSY, REAR DOOR WINDOW, LH
main69840-32080i199106-199608
main69840-32090i199106-199608
W(*PW)
main69840-32090i199106-199608
9010508291
main90105-08291
9017906070
main90179-06070
9017908086
main90179-08086

16 parts on this diagram · 1 diagram in section
