FRONT DOOR WINDOW REGULATOR & HINGE

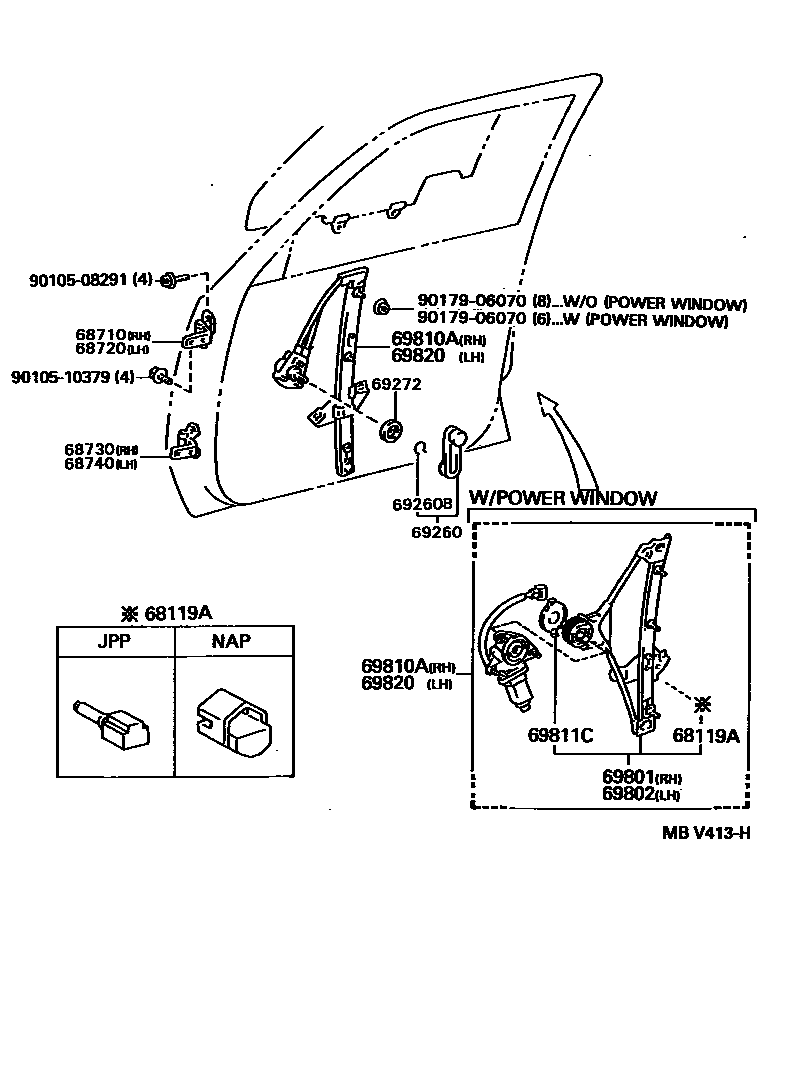

Parts diagram
68119ACUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1
main69887-33010i199106-199608
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-32040i199106-199608
sub68710-32050
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-32040i199106-199608
sub68720-32050
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-32030i199106-199608
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68730-32030i199106-199608
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-14030-09i199106-199308
DARK BLUE,TRIM8#
sub69260-14030
main69260-14030-50i199106-199203
MEDIUM GRAY,TRIM1#
sub69260-14030
main69260-14030-52i199106-199205
TAUPE,TRIM9#
sub69260-14030
main69260-14030-B0i199203-199608
MEDIUM GRAY,TRIM1#
sub69260-14030
main69260-14030-E0i199308-199608
OAK,TRIM4#
sub69260-14030
main69260-14030-K0i199205-199608
TAUPE,TRIM9#
sub69260-14030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i199106-199608
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010i199508-199608
main69285-22010-08i199308-199508
NATURAL WHITE,TRIM1#,4#,9#
sub69285-22010
main69285-22010-08i199106-199308
NATURAL WHITE,TRIM1#,8#,9#
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-32060i199106-199608
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-32050i199106-199608
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
main69810-06012i199308-199608
main69810-32100i199106-199308
main69810-32110i199106-199608
W(*PW)
main69810-32110i199106-199608
69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
main69811-32040i199106-199608
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
main69820-06012i199308-199608
main69820-32090i199106-199308
main69820-32110i199106-199608
W(*PW)
main69820-32110i199106-199608
9010508291
main90105-08291
9010510379
main90105-10379
9017906070
main90179-06070

16 parts on this diagram · 1 diagram in section
