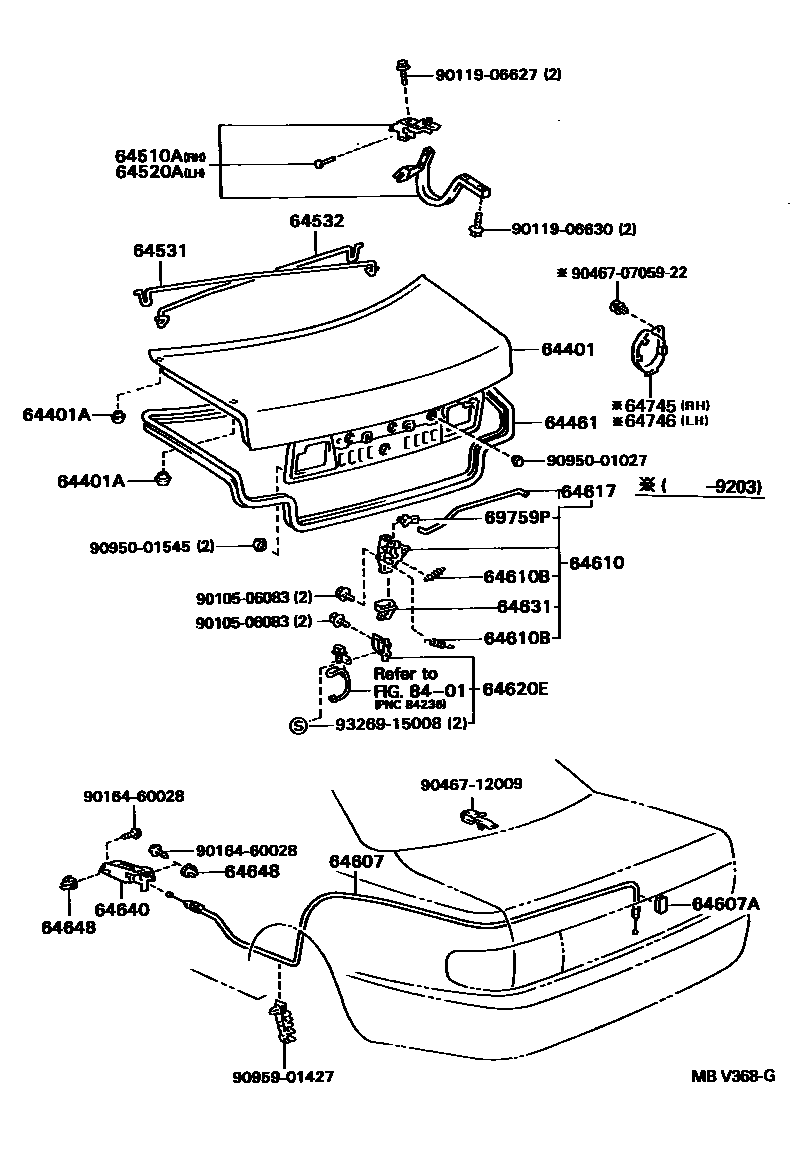

LUGGAGE COMPARTMENT DOOR & LOCK
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
FRONT
REAR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
W(*RS)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
W(*RS)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.25,WD=0.55,CW=17.25
WD=0.55,CW=16.75,WD=0.55,CW=16.75
64617LINK, LUGGAGE COMPARTMENT DOOR LOCK
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64631PROTECTOR, LUGGAGE DOOR LOCK
64640OPENER ASSY, LUGGAGE DOOR LOCK
64648GROMMET, LUGGAGE DOOR LOCK OPENER
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
69759PSNAP, DOOR LOCK CONTROL LINK
8401
9010506083
main90105-06083
9011906627
main90119-06627
9011906630
main90119-06630
9016460028
main90164-60028
904670705922
main90467-0705922
9046712009
main90467-12009
9095001027
main90950-01027
9095001545
main90950-01545
9095901427
main90959-01427
9326915008
main93269-15008
30 parts on this diagram · 1 diagram in section
