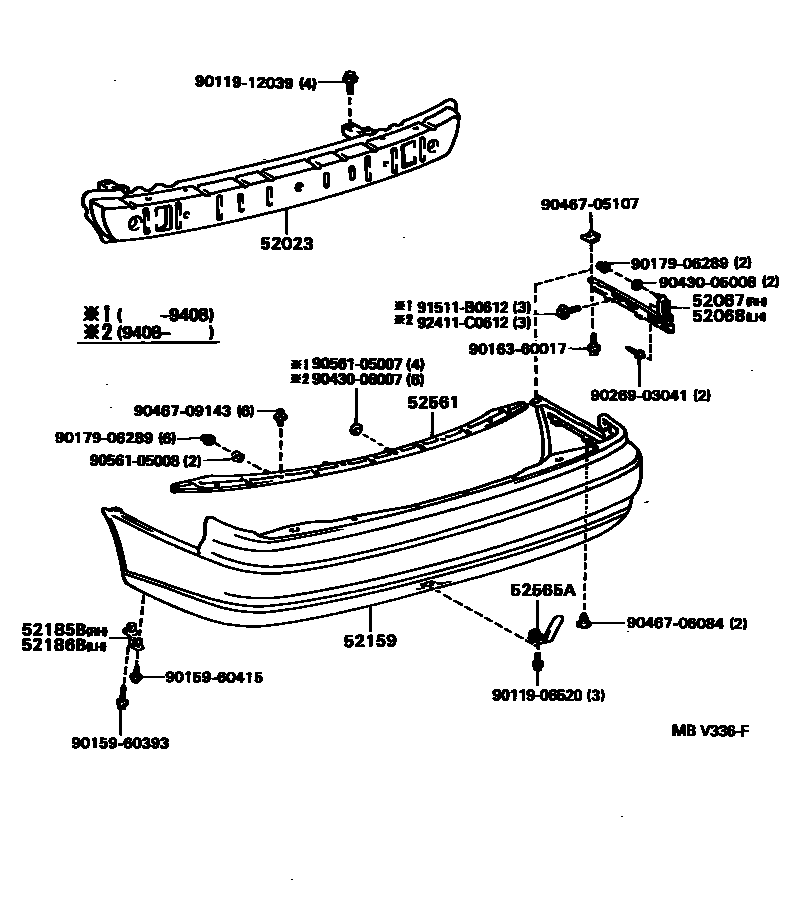

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-33020iSXV10,VCV10..JPP199106-199608

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-33030iSXV10,VCV10..JPP199106-199608

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-33030iSXV10,VCV10..JPP199106-199608

52159COVER, REAR BUMPER

main52159-33902iSXV10,VCV10..JPP199106-199608

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-33010iSXV10,VCV10..JPP199106-199608

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-33010iSXV10,VCV10..JPP199106-199608

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-33020iSXV10,VCV10..JPP199106-199608

52565ARETAINER, REAR BUMPER, LOWER

main52565-32050iSXV10,VCV10..JPP199106-199608

9011906520

main90119-06520

9011912039

main90119-12039

9015960393

main90159-60393

9015960415

main90159-60415

9016360017

main90163-60017

9017906289

main90179-06289

9026903041

main90269-03041

9043005008

main90430-05008

9043006007

main90430-06007

9046705107

main90467-05107

9046706084

main90467-06084

9046709143

main90467-09143

9056105007

main90561-05007

9056105008

main90561-05008

91511B0612

main91511-B0612

92411C0612

main92411-C0612

24 parts on this diagram · 1 diagram in section
